How to Replace a ZS3-2 Memory
16.

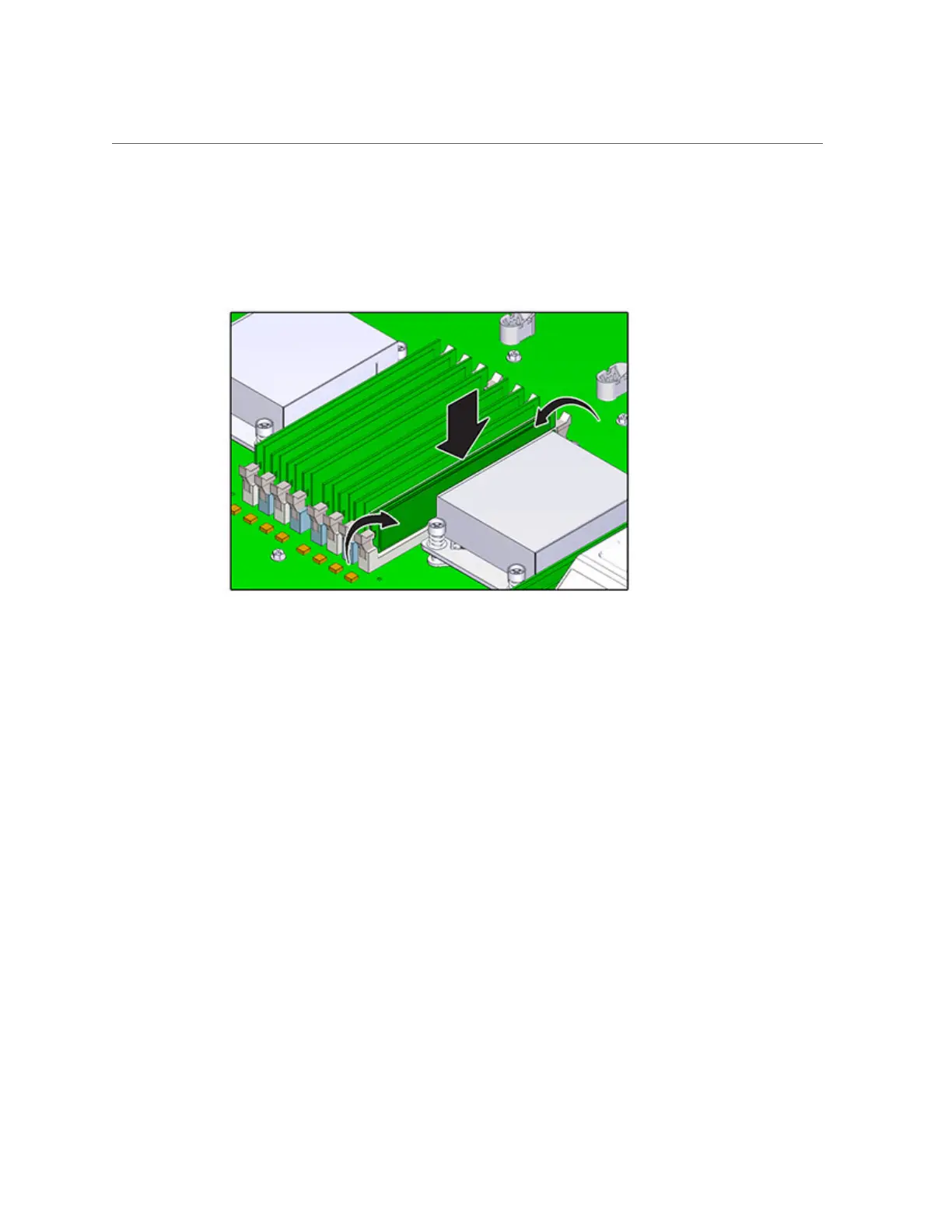

Insert the DIMM into the slot, pressing firmly so that both release levers click
closed.
17.
Replace and secure the air duct.
18.
Lower the drive cage to the horizontal position and with the cage slightly
elevated, reconnect the power cable. Tighten the four screws. Reconnect the
cables to the drive backplane and the cable attached to the USB board.
19.
Replace the top cover and tighten the two captive screws.
20.
Push the release tabs on the side of each rail and slowly push the storage
controller into the rack, making sure no cables obstruct the path of the
controller.
21.
Reconnect the data cables and the disk shelf cables.
22.
Connect the power cords to the power supplies. Verify that standby power is on,
indicated by the Power/OK and SP status indicators flashing green on the front
panel.
23.
After the SP status indicator is solid green, use a pen or other pointed object to
press and release the recessed Power button on the front panel. The Power/OK
status indicator next to the Power button lights and remains lit.
Servicing the Hardware 145
