How to Replace a ZS3-2 Flash Drive
5.

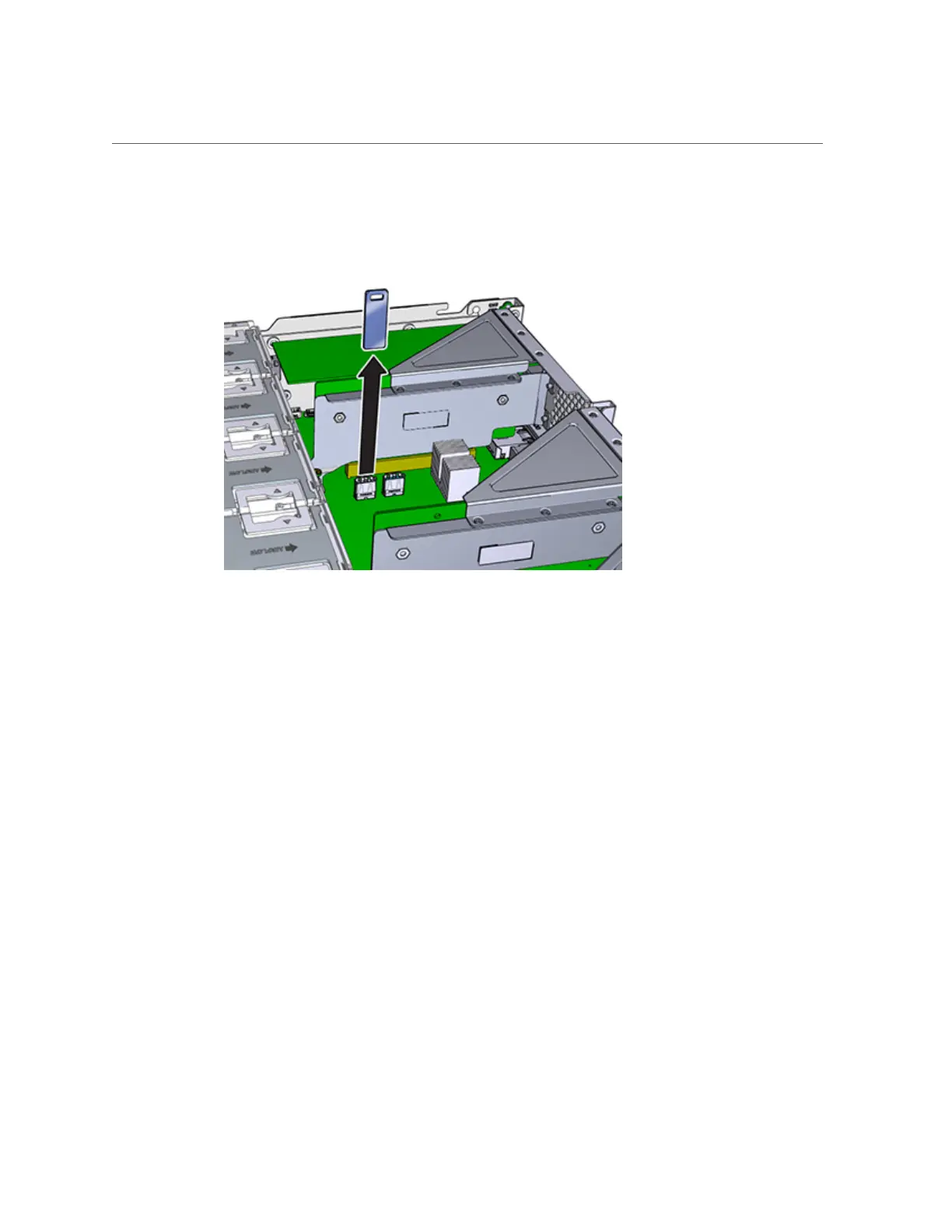

Grasp the USB drive and pull it straight up and out of the chassis.
6.
Position the replacement USB drive to where it installs onto the motherboard.
The USB drive installs into the USB socket that is most forward. The socket is
labeled USB 1.
7.
Gently insert the USB drive into the USB socket.
8.
If you removed Riser 2 to access the USB drive, reinstall Riser 2.
9.
Replace the top cover and tighten the two captive screws.
10.
Push the release tabs on the side of each rail and slowly push the storage
controller into the rack, making sure no cables obstruct the path of the
controller.
11.
Reconnect the data cables and the disk shelf cables.
12.
Connect the power cords to the power supplies. Verify that standby power is on,
indicated by the Power/OK and SP status indicators flashing green on the front
panel.
13.
After the SP status indicator is solid green, use a pen or other pointed object to
press and release the recessed Power button on the front panel. The Power/OK
status indicator next to the Power button lights and remains lit.
Servicing the Hardware 153
