How to Replace a 7x20 Fan Module
1.
To locate the chassis you want to service, click the associated locator icon
on the Maintenance > Hardware screen of the BUI or issue the set /SYS/LOCATE
status=on command at the service processor (SP) prompt. The locate LED will
flash on the controller chassis.
2.
Extend the controller from the rack as described in “How to Extend the Storage
Controller from the Rack” on page 41.
3.
7120 or 7320: To replace the fan module:
a.
Open the fan module door while unlatching the release tabs on the door.
b.

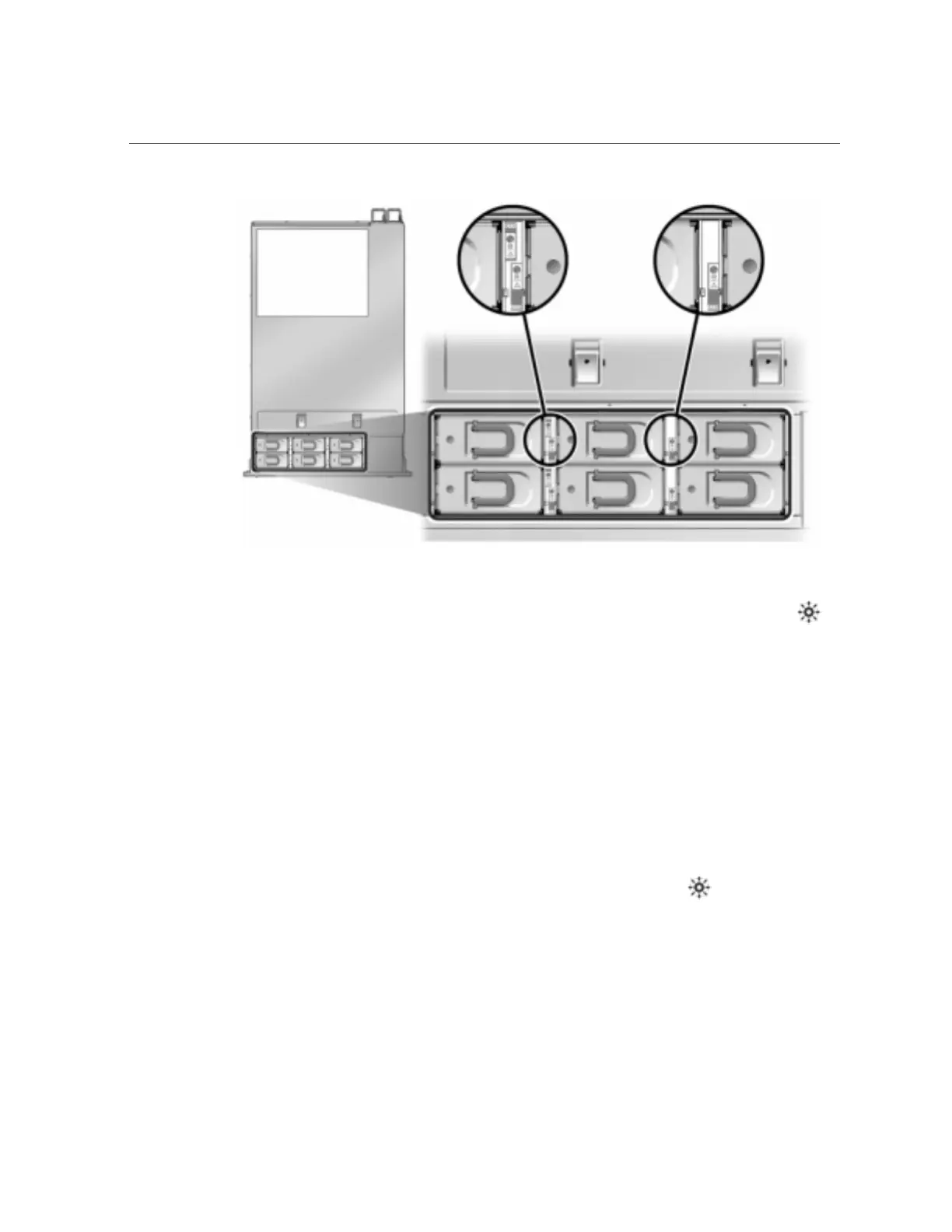

Identify the faulted fan module by locating the corresponding Service
Required status indicator or by clicking the locator icon on the
Maintenance > Hardware screen of the BUI for the fan you want to replace.
198 Oracle ZFS Storage Appliance Customer Service Manual • February 2016
