How to Replace a 7x20 Memory

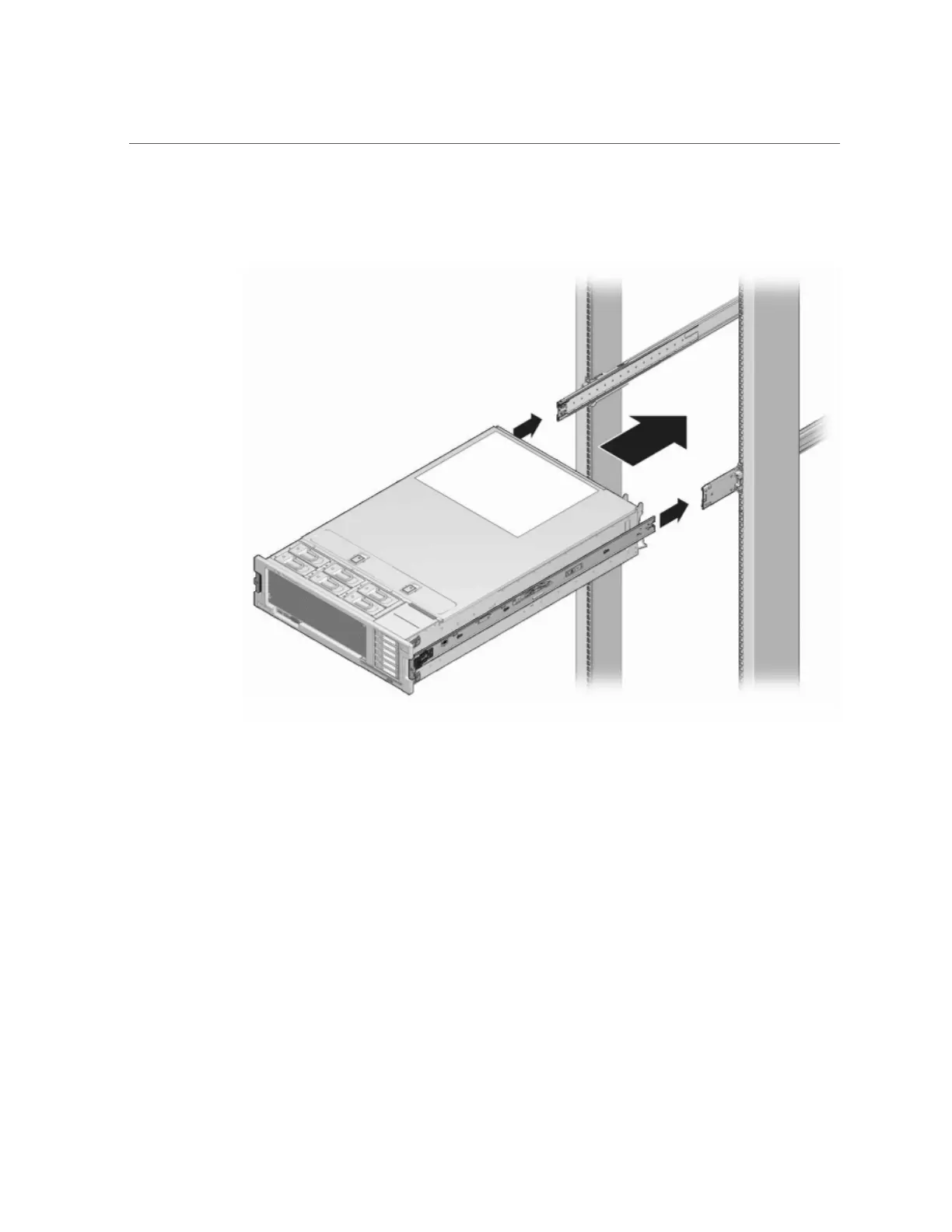

The following image shows the 7420 chassis.
13.
Connect the power cords to the power supplies.
14.
Verify that standby power is on, indicated by the Power/OK status indicator
flashing on the front panel about two minutes after the power cords are plugged
in.
15.
Use a pen or other pointed object to press and release the recessed Power
button on the storage controller front panel.
The Power/OK status indicator next to the Power button lights and remains lit. The
Maintenance > Hardware screen of the BUI provides status of the replacement on the Details
page for DIMMs.
216 Oracle ZFS Storage Appliance Customer Service Manual • February 2016
