How to Replace a 7x20 Controller PCIe Card or Riser
b.
Close the fan cover and engage the fan cover latches. The cover must be
completely closed for the storage controller to power on.
9.

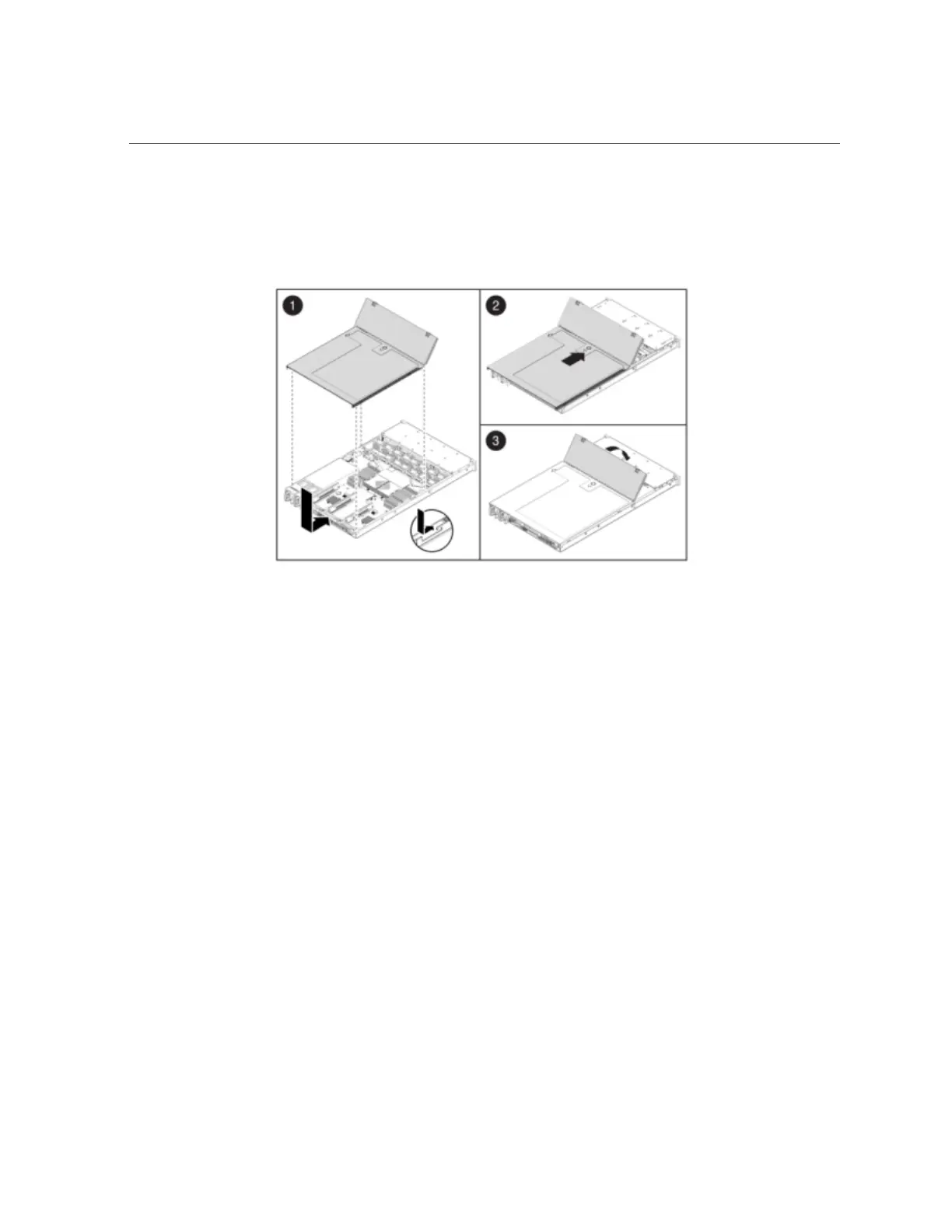

7420: To install the top cover:
a.
Place the top cover on the chassis (1) so that it is forward of the rear of the
storage controller by about an inch (2.5 cm).
b.
Slide the top cover toward the rear of the chassis (2) until it seats.
226 Oracle ZFS Storage Appliance Customer Service Manual • February 2016
