Oracle DE2-24 Customer Service Manual

Servicing the Disk Shelves

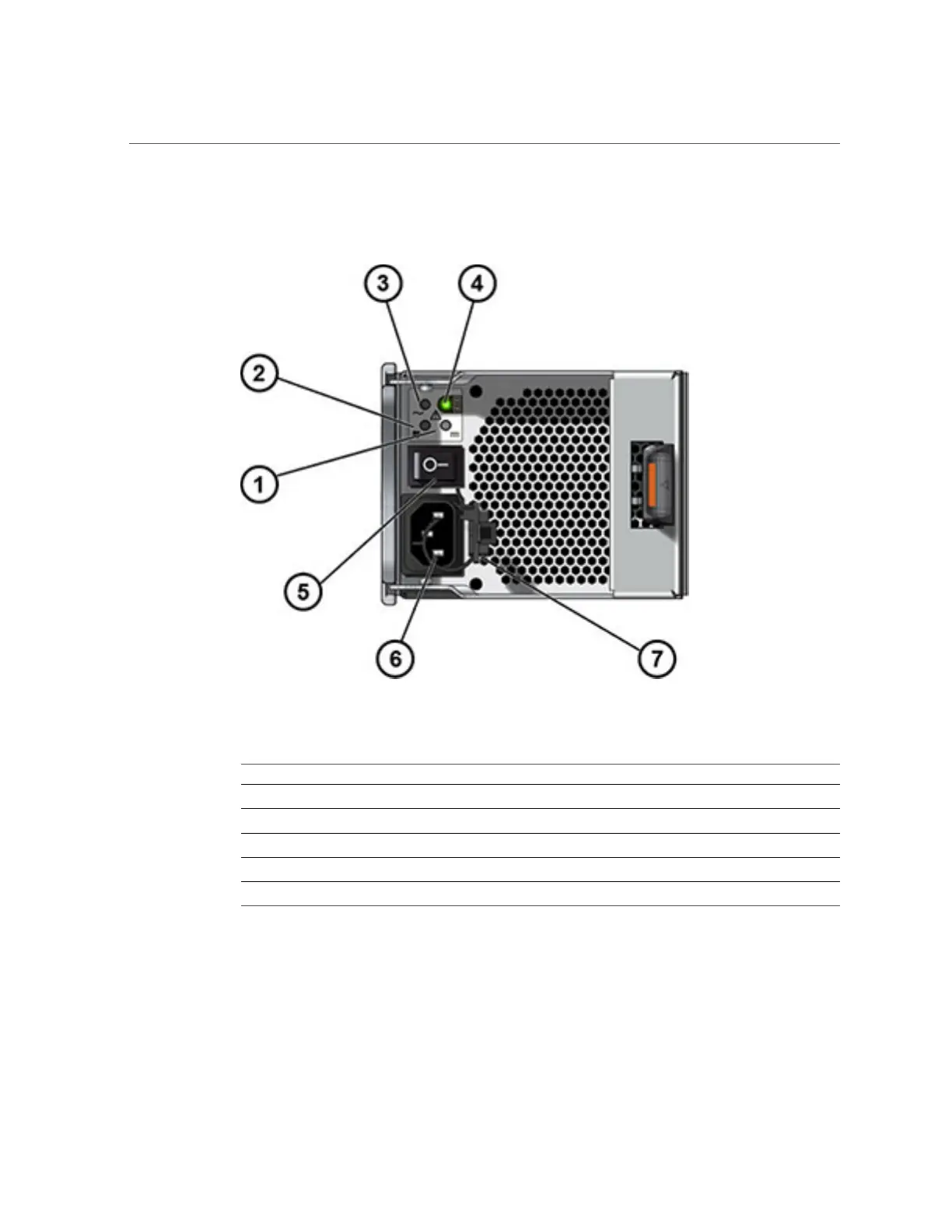

FIGURE 77
DE2 Disk Shelf Power Supply Indicators
Figure Legend Figure Legend
1 DC power fail indicator 6 Universal power input connector
2 Fan fail indicator 7 Power cord tie wrap
3 AC power fail indicator
4 Power supply status indicator
5 Power on/off switch
The following figure shows power supply with fan module indicators for these disk shelves:
■
Sun Disk Shelf
246 Oracle ZFS Storage Appliance Customer Service Manual • February 2016
