Servicing the ZS4-4 Controller

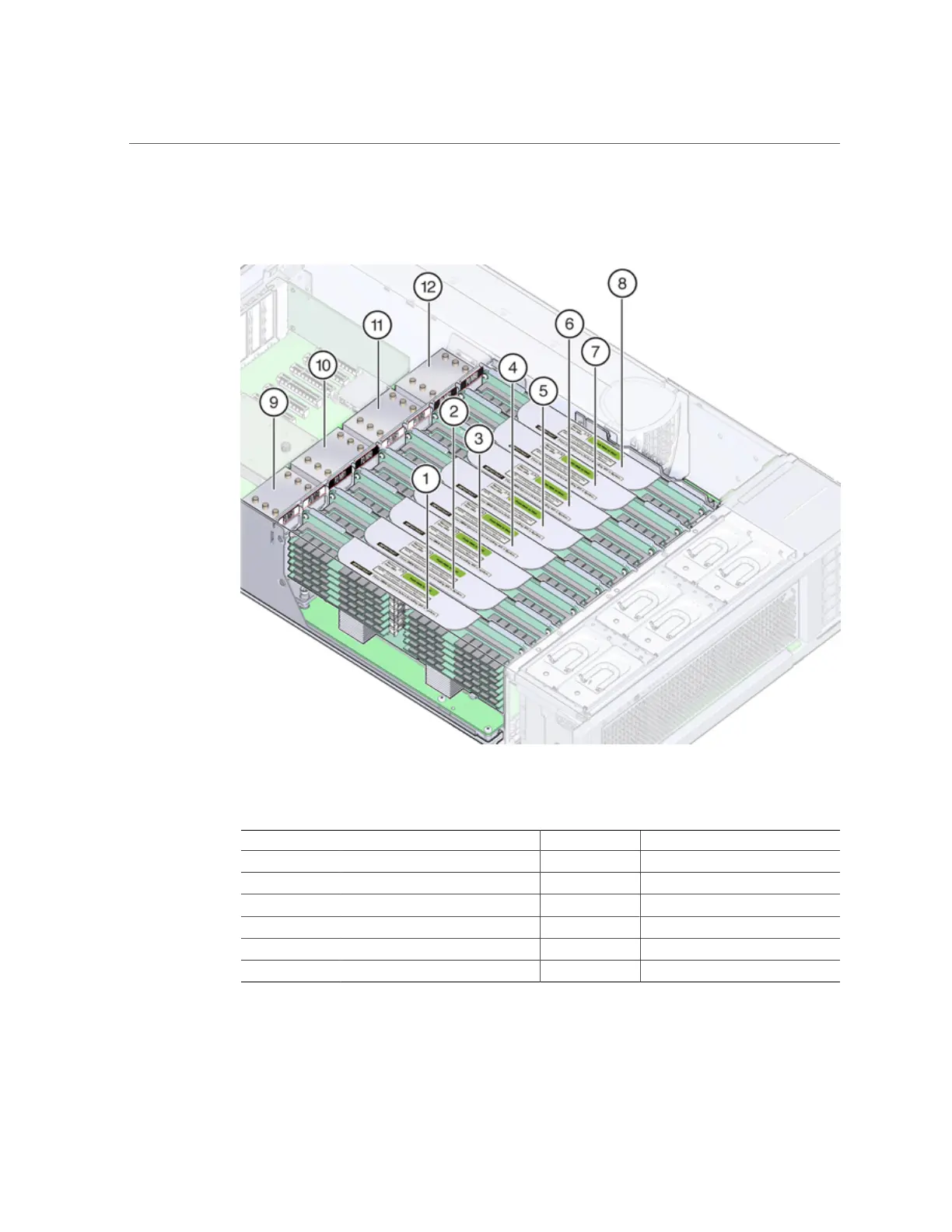

FIGURE 7
ZS4-4 CPU and Memory
Figure Legend
1 Memory riser card P3/MR1 7 Memory riser card P0/MR1
2 Memory riser card P3/MR0 8 Memory riser card P0/MR0
3 Memory riser card P2/MR1 9 CPU P3
4 Memory riser card P2/MR0 10 CPU P2
5 Memory riser card P1/MR1 11 CPU P1
6 Memory riser card P1/MR0 12 CPU P0
