How to Replace a ZS4-4 PCIe Card
9.

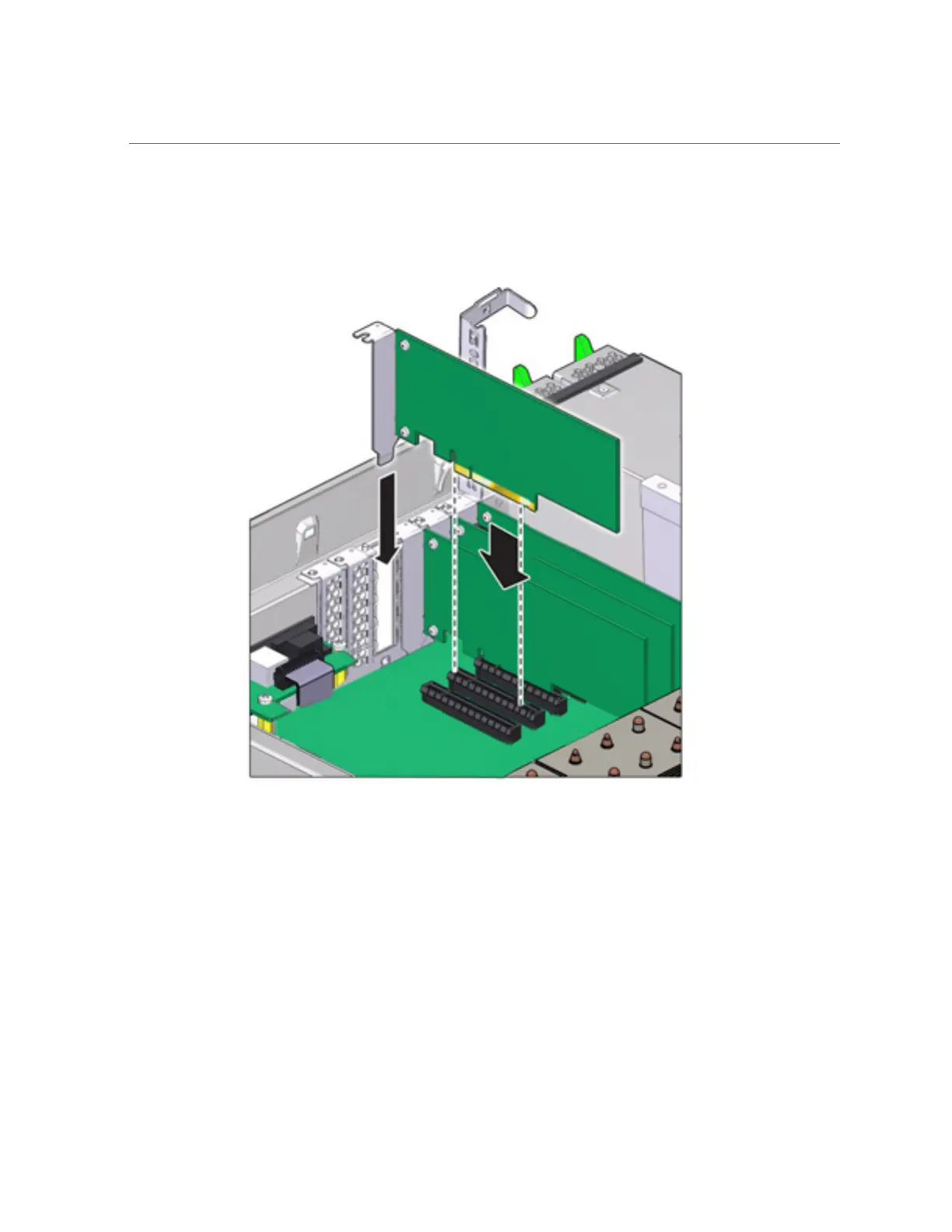

Install the replacement PCIe card into the PCIe card slot.
10.
Return the retaining bar to its closed and locked position.
11.
Replace the top cover on the chassis.
12.
Return the controller to the normal rack position by pushing the release tabs on
the side of each rail while slowly pushing the storage controller into the rack.
13.
Reconnect the power cords to the power supplies.
72 Oracle ZFS Storage Appliance Customer Service Manual • February 2016
