How to Replace a ZS4-4 Battery
6.

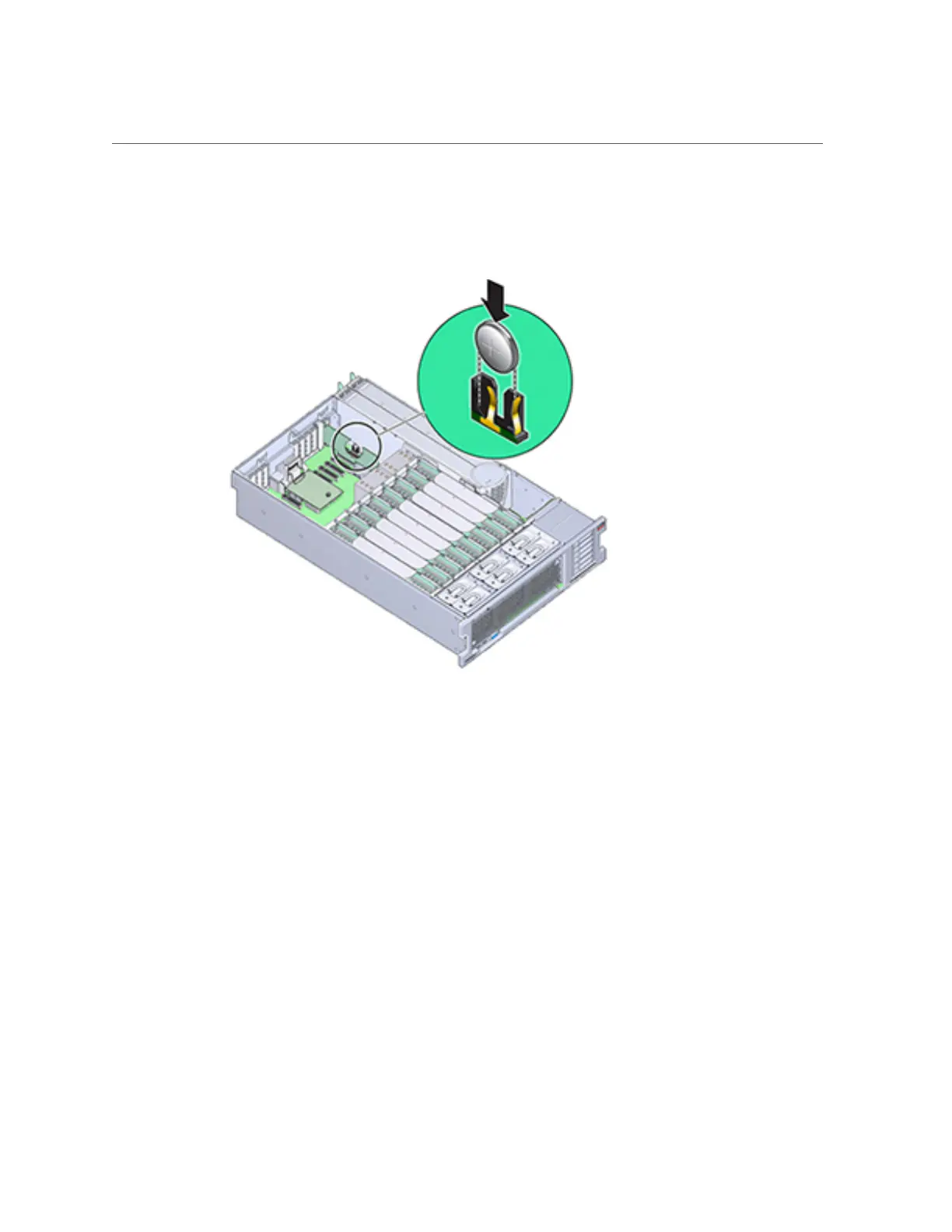

Press the new battery into the battery holder with the positive (+) side facing the
metal tab that holds it in place.
7.
If you removed the PCIe card from slot 1, re-install it. See Replacing a ZS4-4 PCIe
Card.
8.
Replace the top cover on the chassis.
9.
Return the controller to the normal rack position by pushing the release tabs on
the side of each rail while slowly pushing the storage controller into the rack.
10.
Connect the power cords to the power supplies.
11.
Verify that standby power is on, indicated by the Power/OK status indicator
flashing on the front panel about two minutes after the power cords are plugged
in.
12.
Use a pen, or other pointed object, to press and release the recessed Power
button on the storage controller front panel. The Power/OK status indicator next
to the Power button lights and remains lit.
Servicing the Hardware 75
