Table 1. Location and Description of Major Components. - Continued
20
19
35
34
23
22
21
30
33
29 28
27
26
25
24
32
31

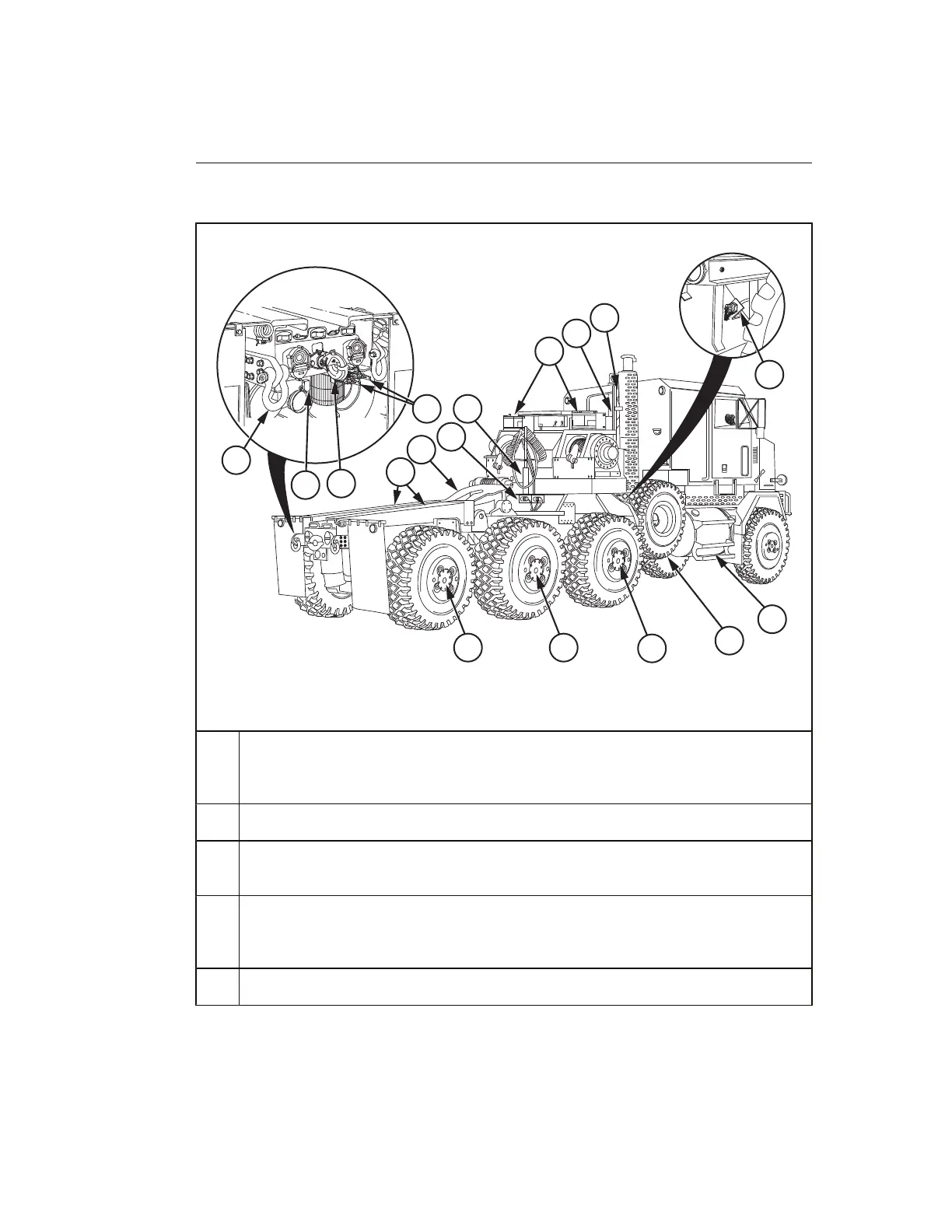

Figure 3.
19
TRAILER ELECTRICAL CONNECTORS. Two connectors (24-volt/12-pin and 12-
volt/7-pin) supply power to trailer electrical system through intervehicular cable.
(WP 0114, Table 2, Item 2)
20
TRAILER GLADHANDS. Couples air supply to trailer.
21
CHOCK BLOCKS STOWAGE BOXES. Used to stow wheel chocks. (WP 0114,
Table 3, Item 11)
22
PERSONNEL LADDER. Provides access to engine compartment when servicing
engine and accessories. Mounts in holes in driver side or passenger side fenders
when in use. Folds and mounts on exhaust stack for storage.
23
TIRE DAVIT. Raises and lowers spare tire.
TM 9-2320-360-10 0004
0004-5
