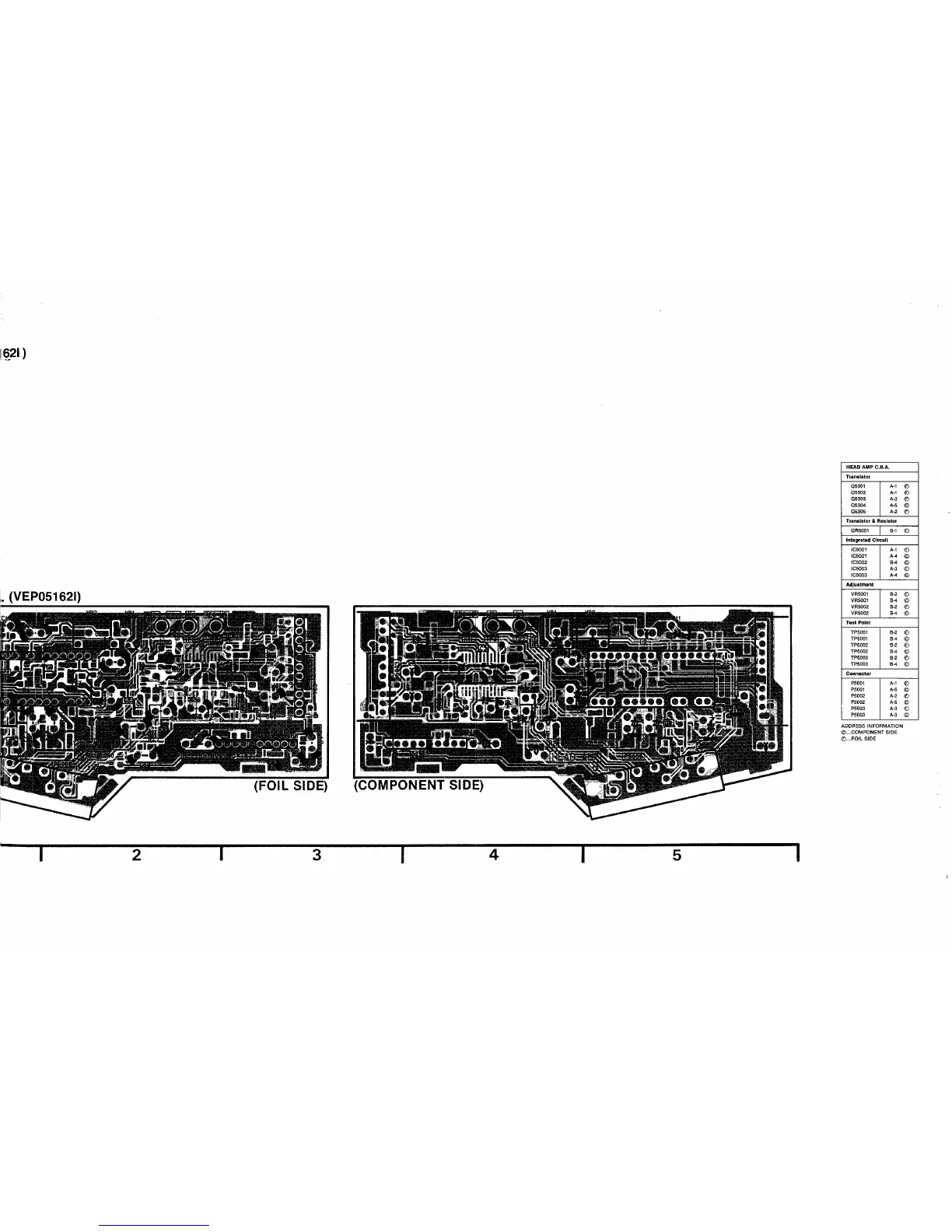

HEAD AMP C.B.A.
Transistor
Q5001
A·1
®
Q5002
A·1
®
Q5003
A.J
®
Q5004 A-5
©
Q5005
A·2
®
Transistor & Resistor
QRSOO1
8·1
®
Integrated Circuit
IC5001
A·1
®
IC5001
A-4
©
IC5002 8-4
©
IC5003 A.J
®
IC5003 A-4
©
Adjustment
VRSQ01
8·2
®
VR5001 8-4
©
VRSOO2 8·2
®
VR5002 8-4
©
Test Point
TP5001 8·2
®
TP5001 8-4
©
TP5002 8·2
®
TP5002 8-4
©
TP5003 8·2
®
TP5003 8-4
©
Connector
P5D01 A·1
®
P5001 A·5
©
P5002 A·2
®
P5002 A·5
©
P5003
A·' ®
P5D03
A·' ©
ADDRESS INFORMATION
© ... COMPONENT SIDE
® ... FOIL SIDE
