[ Front View 1
2 Screws
(M)
@ @

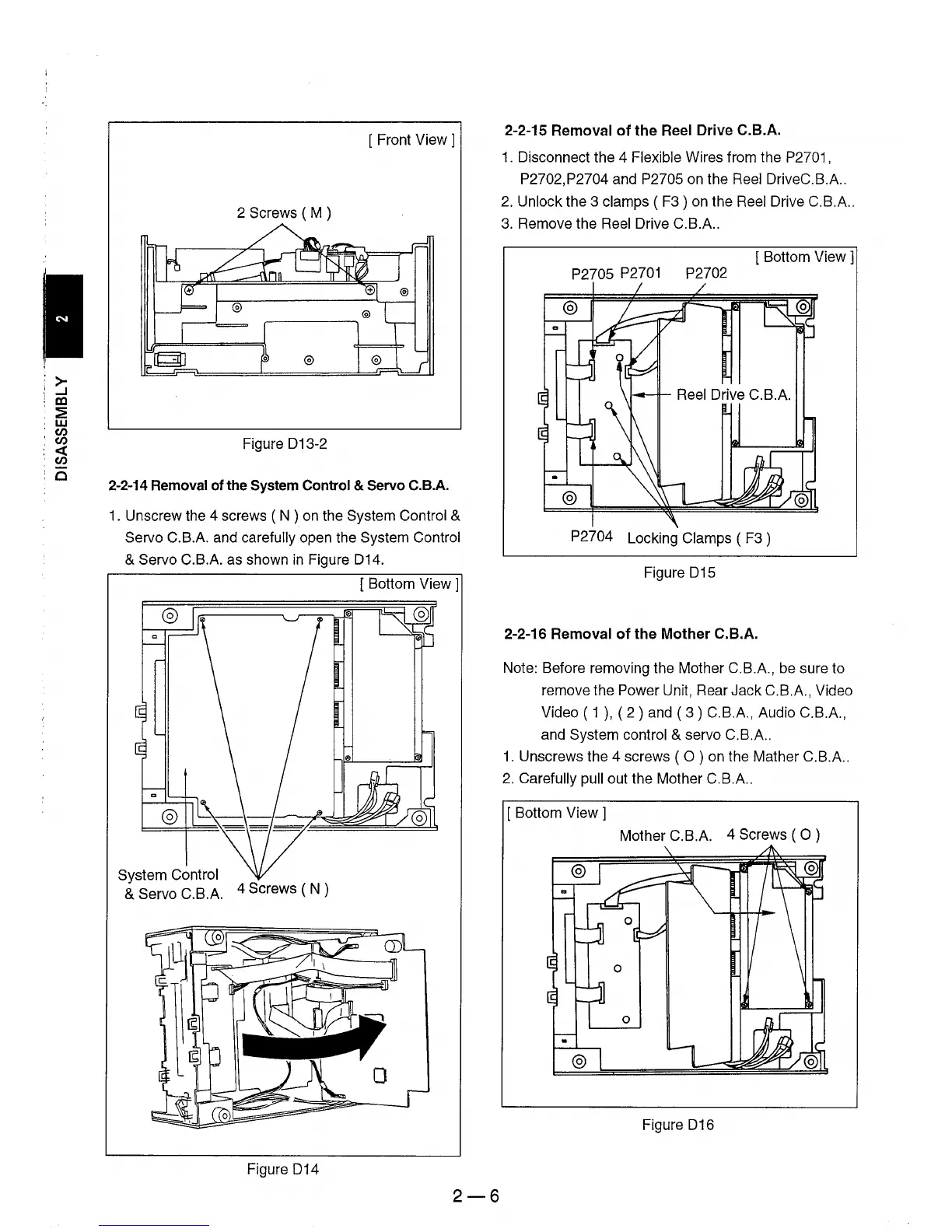

Figure D13-2
2-2-14 Removal of the System Control & Servo C.B.A.
1.
Unscrew the 4 screws ( N ) on the System Control &
Servo C.B.A. and carefully open the System Control
& Servo C.B.A. as shown
in
Figure D14.
[ Bottom View 1
System Control
&
S C B A
4
Screws ( N )
ervo
...
Figure D14
2-6
2-2-15
Removal
of
the
Reel
Drive
C.B.A.
1.
Disconnect the 4 Flexible Wires from the
P2701
,
P2702,P2704 and P2705 on the Reel DriveC.B.A
..
2. Unlock the 3 clamps ( F3 ) on the Reel Drive C.B.A..
3. Remove the Reel Drive C.B.A..
[ Bottom View
1
P2705 P2701 P2702
P2704
Locking Clamps ( F3 )
Figure D15
2-2-16
Removal
of
the
Mother
C.B.A.
Note: Before removing the Mother C.B.A., be sure to
remove the
Power Unit, Rear Jack C.B.A., Video
Video ( 1 ),
(2)
and
(3)
C.B.A., Audio C.B.A.,
and System control & servo C.B.A
..
1.
Unscrews the 4 screws ( 0 ) on the Mather C.B.A
..
2.
Carefully pull out the Mother C.B.A..
[ Bottom View 1
Mother C.B.A. 4 Screws ( 0 )
Figure D16
