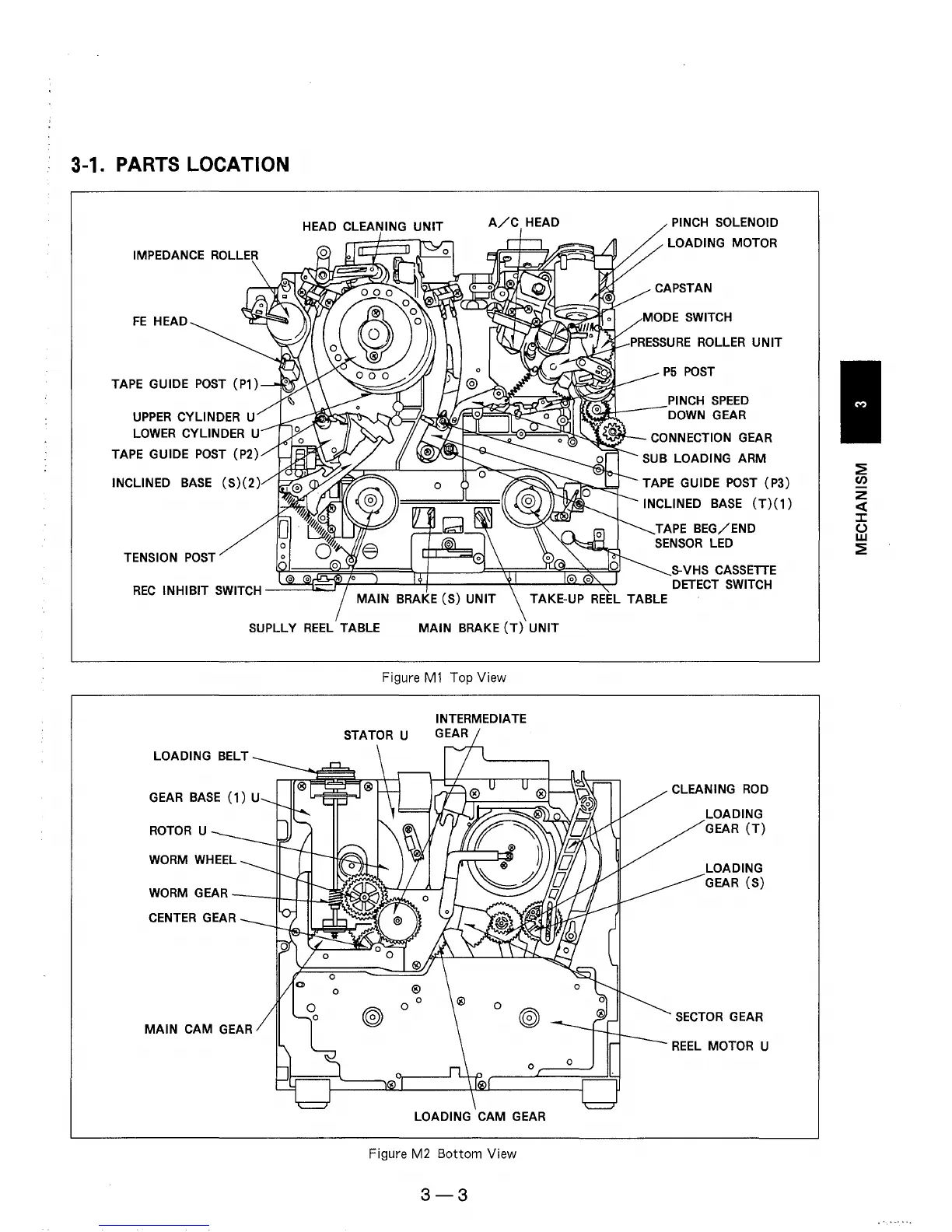

3-1. PARTS LOCATION
HEAD CLEANING UNIT
A/C HEAD
FE HEAD
TAPE
GUIDE POST (P1)
PINCH SOLENOID
LOADING
MOTOR
CAPSTAN
PRESSURE ROLLER UNIT
P5 POST
PINCH SPEED
DOWN GEAR
UPPER CYLINDER U
LOWER CYLINDER U
l='=i.!::::;;:~=®=,====~~ .,..,.0;'"'-_ CONNECTION GEAR
TAPE GUIDE POST (P2)
INCLINED BASE (S)(2)
TENSION POST
SUB LOADING ARM
TAPE GUIDE POST (P3)
INCLINED BASE (T)(1)
TAPE BEG/END
SENSOR LED
S-VHS CASSETTE
~=~;3"T-"---4----:-:---~-_-I.\::o~~ DETECT SWITCH
REC INHIBIT SWITCH TAKE-UP REEL TABLE
SUPLLY REEL TABLE MAIN BRAKE (T) UNIT
Figure Ml Top View
LOADING BELT
GEAR BASE (1) U
ROTOR U
WORM WHEEL
WORM GEAR ---H---l--U--.o.J:
CENTER GEAR
MAIN CAM GEAR
LOADING CAM GEAR
Figure M2 Bottom View
3-3
CLEANING ROD
LOADING
GEAR (T)
LOADING
GEAR (S)
SECTOR GEAR
REEL MOTOR U
