Panasonic AG-MD830E - Replacement of the Head Cleaning Pad

LARGE HOLE
Figure M22-C
Note: Pressure Adjustment of the Pinch Roller
(Refer to Mechanical Adjustment procedures)
should be performed after completion of
reinstalling the Pinch Solenoid.

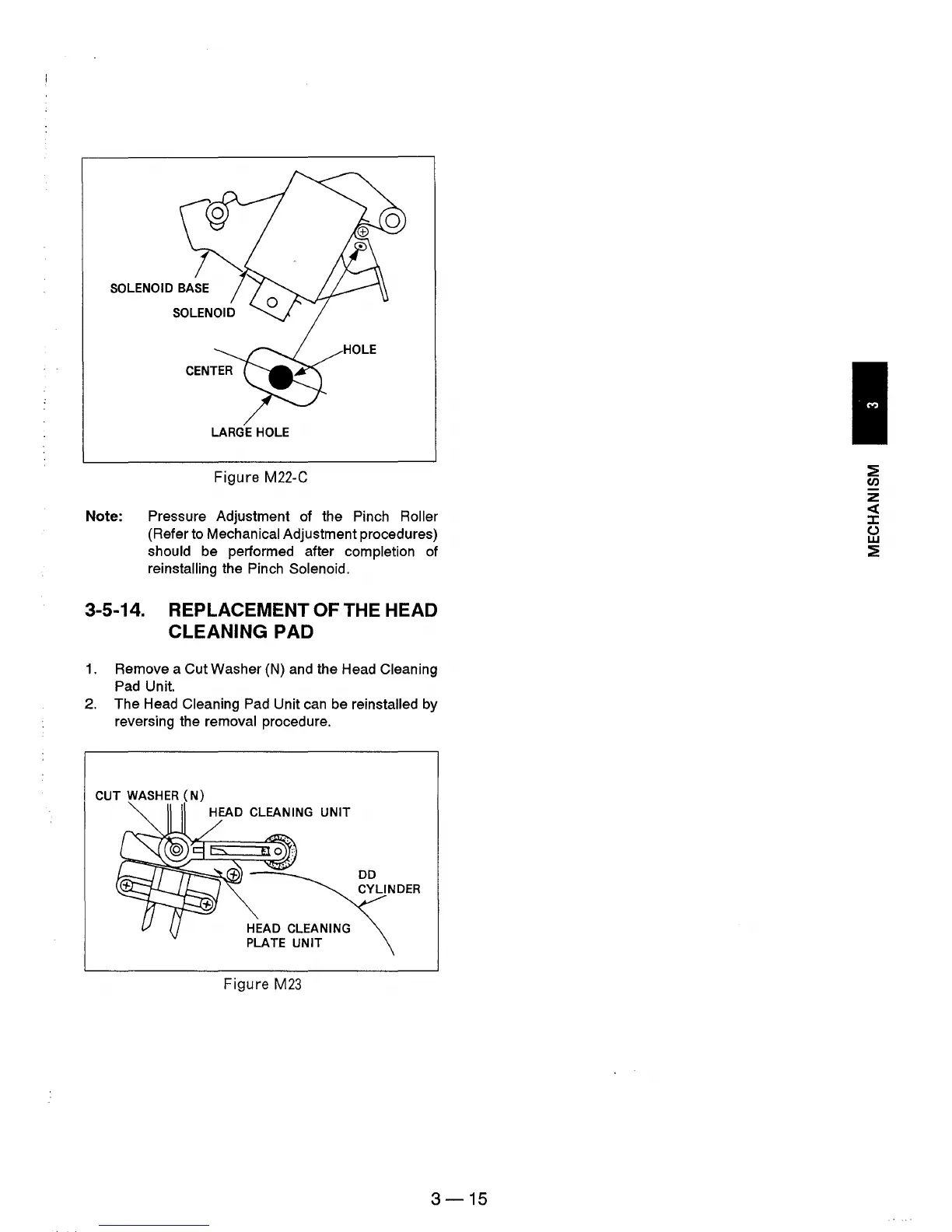

3-5-14. REPLACEMENT OF THE HEAD
CLEANING PAD
1. Remove a Cut Washer (N) and the Head Cleaning
Pad Unit.
2. The Head Cleaning Pad Unit can be reinstalled by
reversing the removal procedure.
CUT WASHER (N)
HEAD CLEANING UNIT
HEAD CLEANING
PLATE UNIT
Figure M23
3-15
