3-3. HOW TO EJECT MANUALLY
If the electrical circuit is defective and the action of
unloading and front unloading don't work
properly, it is possible to eject manually as follows.
1. Take out the Main AC.
2. Release the direction as shown in Figure M3.
3. Release the Wormshaft to clockwise unit
cassette
is ejected.
CAPSTAN ROTOE
RELEASE DIRECTION J
WORMSHAFT

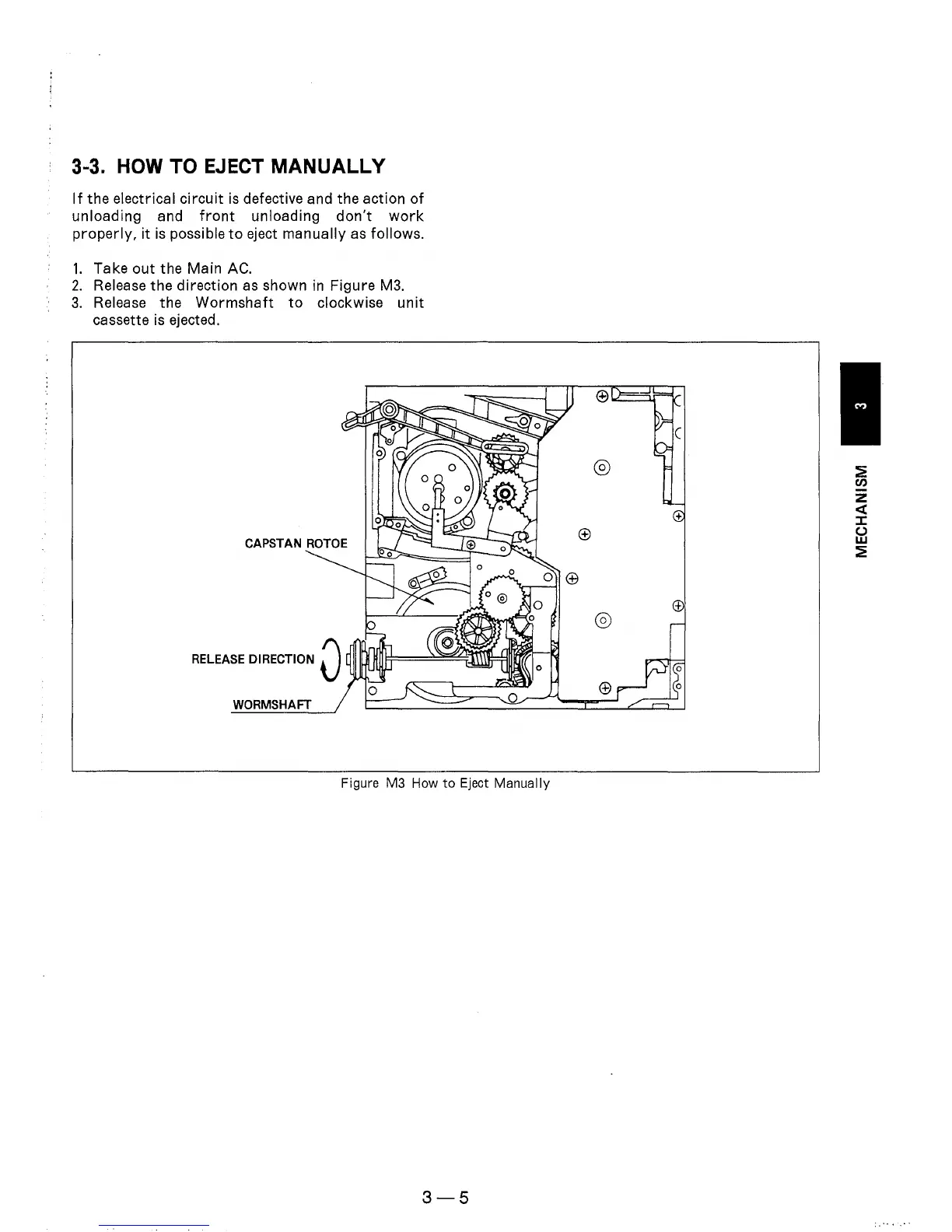

Figure M3 How to Eject Manually
3-5
@
@
