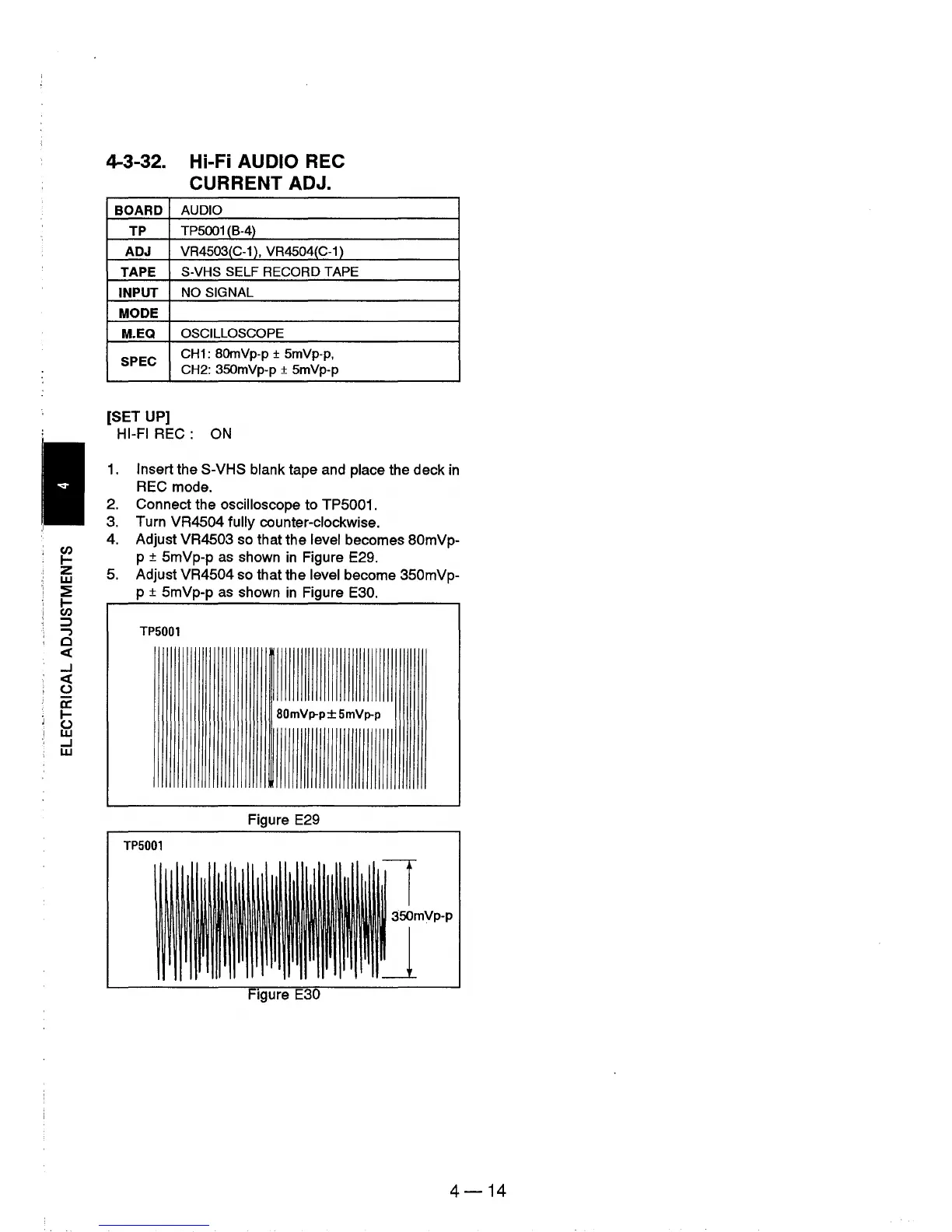

4-3-32. Hi-Fi AUDIO REC
CURRENT ADJ.
BOARD AUDIO
TP
TP5001 (B-4)
ADJ
VR4503(C-1), VR4504(C-1)
TAPE
S-VHS SELF RECORD TAPE
INPUT
NO SIGNAL
MODE
M.EQ OSCILLOSCOPE
SPEC
CH1: 8OmVp-p ± 5mVp-p,
CH2: 350mVp-p
± 5mVp-p
[SET UP]
HI-FI REC: ON
1. Insert the S-VHS blank tape and place the deck in
REC mode.
2. Connect the oscilloscope to TPS001.
3. Turn VR4504 fully counter-clockwise.
4. Adjust VR4503 so that the level becomes 80mVp-
p ± SmVp-p as shown in Figure E29.
S. Adjust VR4S04 so that the level become 3S0mVp-
p ± SmVp-p as shown in Figure E30.
TP5001
80mVp-p± 5mVp-p
Figure E29
TP5001
4-14
