(EXl )

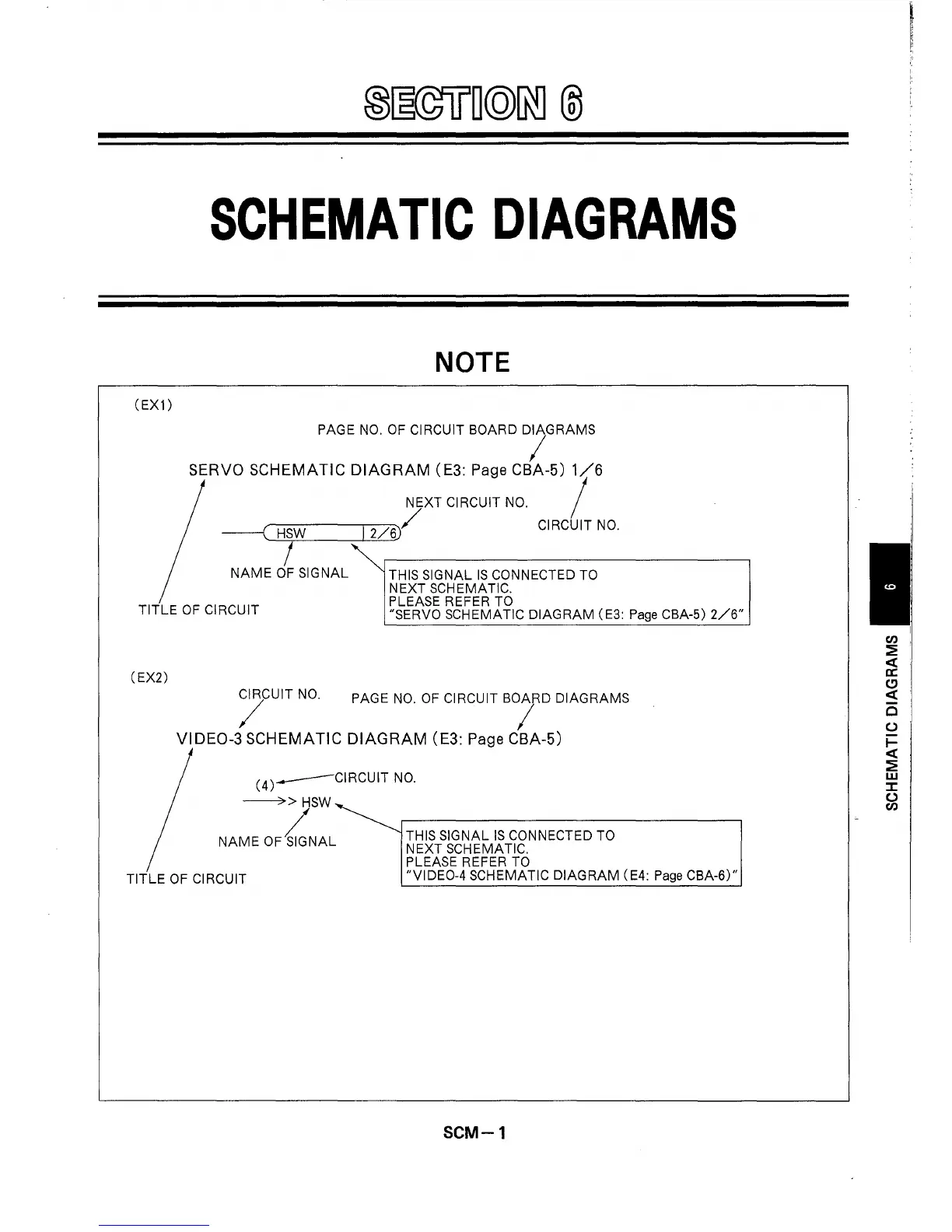

SCHEMATIC DIAGRAMS
NOTE
PAGE NO. OF CIRCUIT BOARD DjGRAMS
SERVO SCHEMATIC DIAGRAM (E3: Page CBA-5) 1/6
NEXT CIRCUIT NO. /
----( HSW 12/6)/ CIRCUIT NO.
NAME ~ SIGNAL ~ THIS SIGNAL IS CONNECTED TO
NEXT SCHEMATIC.
PLEASE
REFER TO
"SERVO SCHEMATIC DIAGRAM (E3: Page CBA-5) 2/6"
TITLE OF CIRCUIT
(EX2)
CIRCUIT NO. PAGE NO. OF CIRCUIT BOARD DIAGRAMS
/ /
VIDEO-3 SCHEMATIC DIAGRAM (E3: Page CBA-5)
(4) __ CIRCUIT NO.
------7 > HSW
NAME OF~NAL
THIS SIGNAL IS CONNECTED TO
NEXT SCHEMATIC.
PLEASE
REFER TO
TITLE OF CIRCUIT
"VIDEO-4 SCHEMATIC
DIAGRAM (E4: Page CBA-6)"
