Panasonic FP0R Series User Manual

Names and Functions of Parts
2-6

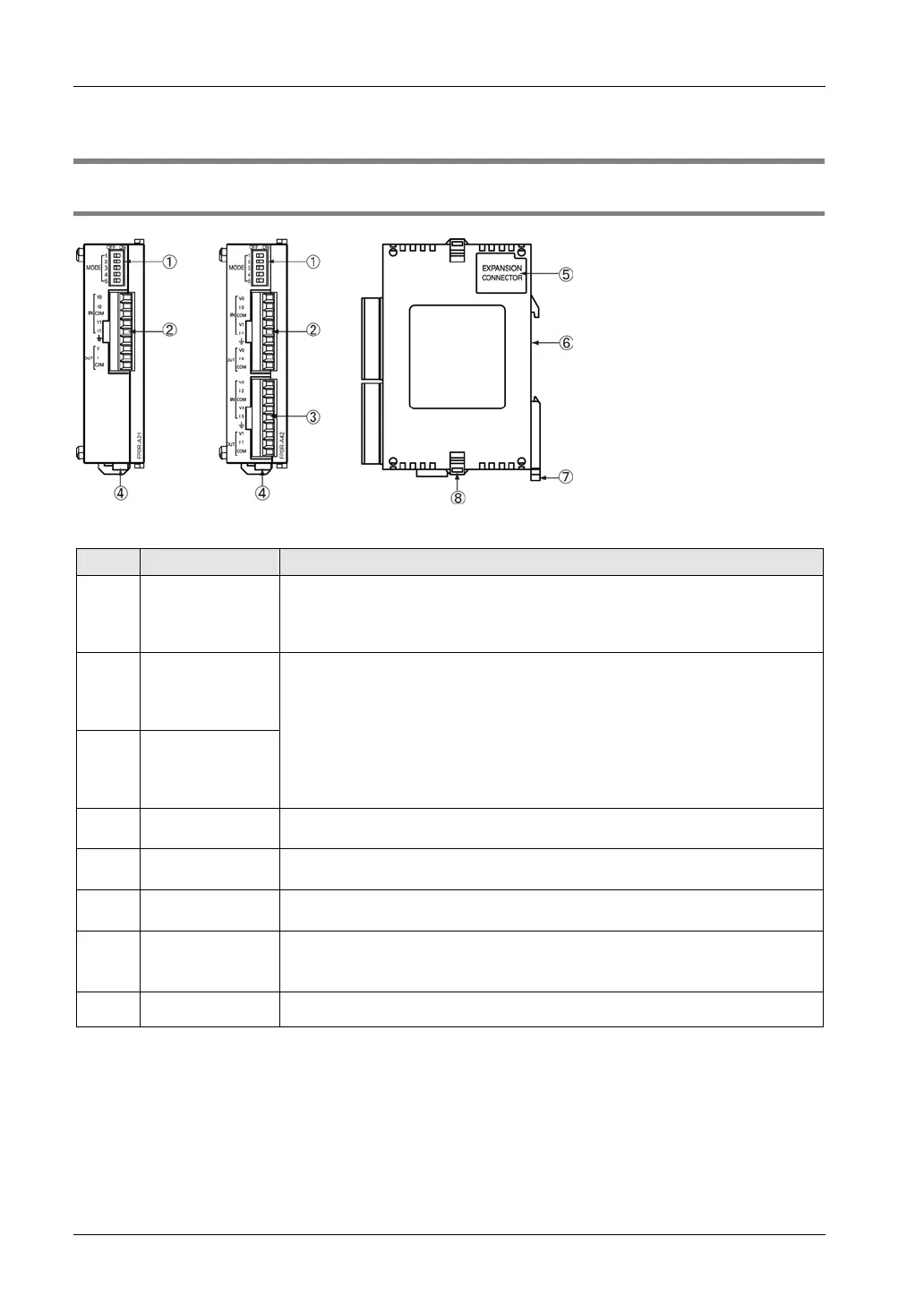

2.3 Analog I/O Unit (FP0R-A21/A42)
2.3.1 Names and Functions of Parts
 Names and Functions of Parts
No. Name Description
①
Mode setting
switch
 Used for selecting the input and output ranges, the output method
(voltage/current), and whether to perform the input averaing processing or not.
 Used for selecting the operation mode (12-bit mode or 14-bit mode compatible
with the conventional product FP0-A21).
②
I/O terminal
Input for CH0-
CH1
Output for CH0
 Used for connecting the analog input device or analog output device.
 The voltage and current vary according to the settings of the mode switch.
They can be selected for each channel.
③
I/O terminal
Input for CH2-
CH3
Output for CH1
④
Power connector
The supply 24 V DC from an external power supply. For connection, use the
power supply cable (AFP0581) that comes with the Unit.
⑤
Expansion
connector
Used for connecting the expansion unit with the internal circuit of the Control Unit.
⑥
DIN rail installing
groove
It can be installed to a 35-mm-wide DIN rail.
⑦
DIN hook
The unit can be installed to the DIN rail through one-touch operation.
This hook is also used for installing the unit to the Slim Type Mounting Plate
(AFP0803).
⑧
Expansion hook Used for securing expansion units.

Panasonic FP0R Series Specifications

General

Model	FP0R Series
Expansion	Up to 3 expansion units
Type	Programmable Controller
Processing Speed	0.08 µs/step
Communication Ports	RS232C, RS485
Power Supply	24 V DC
Operating Temperature	0°C to 55°C
I/O Points	Up to 128 points
CPU Type	32-bit RISC
Program Memory	Flash ROM
Dimensions	90mm x 60mm x 25mm (varies by model)
