Panasonic FP0R Series User Manual

3.4 Common Precautions
3-9

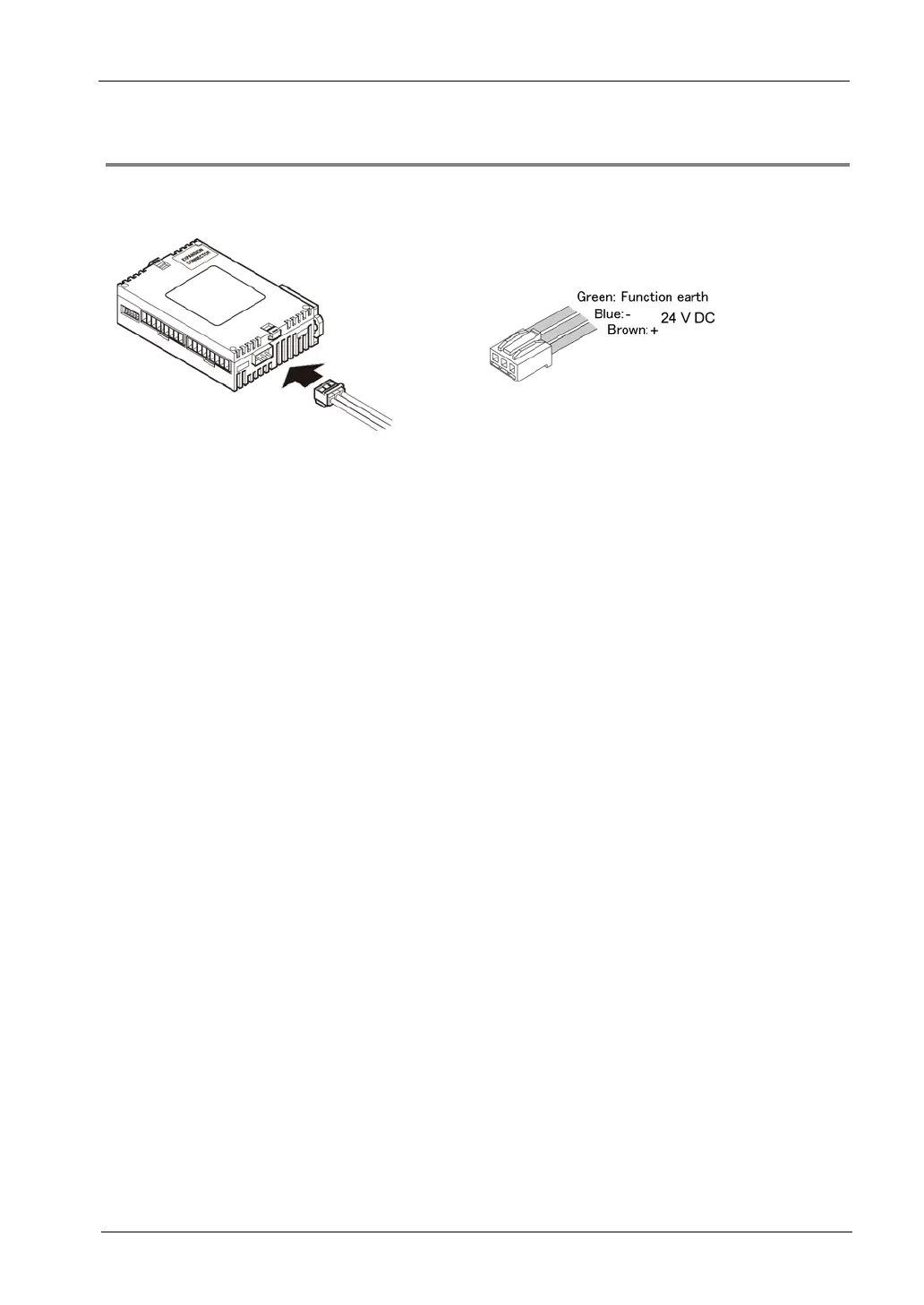

3.4.2 Wiring of Power Cable (FP0R-DA4 / FP0R-A21 / FP0R-A42)
The power needs to be supplied to the analog output unit (FP0R-DA4) and analog I/O unit
(FP0R-A21/FP0R-A42) for operation.
 Precautions on Wiring
• It is connected using the cable (Part number:AFP0581) supplied with the unit.
• The input voltage range of the power supply for operating the unit is 20.4 to 28.8 VDC.
• Use the power supply of SELV (Safety Extra-Low Voltage) and LIM (Limited Energy Circuit).
• In order to avoid influence of noise, the function earth terminal must be grounded.

Panasonic FP0R Series Specifications

General

Model	FP0R Series
Expansion	Up to 3 expansion units
Type	Programmable Controller
Processing Speed	0.08 µs/step
Communication Ports	RS232C, RS485
Power Supply	24 V DC
Operating Temperature	0°C to 55°C
I/O Points	Up to 128 points
CPU Type	32-bit RISC
Program Memory	Flash ROM
Dimensions	90mm x 60mm x 25mm (varies by model)
