Panasonic FP0R Series User Manual

Wiring
3-2

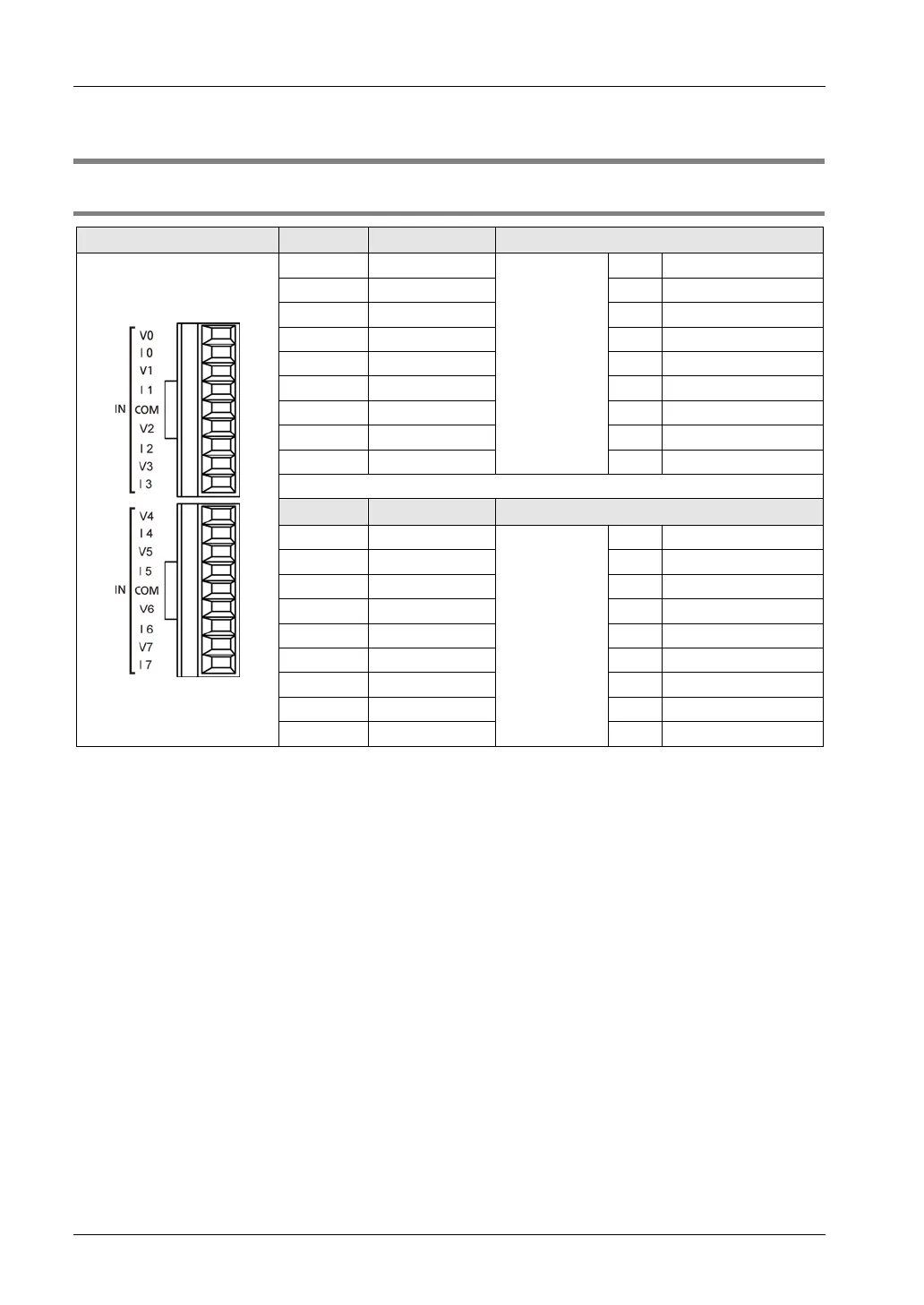

3.1 Analog Input Unit (FP0R-AD4/AD8)
3.1.1 Terminal Layout Diagrams
Appearance
Pin No.
Name
Function
1 V0
Analog input
CH0 Voltage signal input
2 I0 CH0 Current signal input
3 V1 CH1 Voltage signal input
4 I1 CH1
Current signal input
5 COM
Input common
6 V2 CH2 Voltage signal input
7 I2 CH2 Current signal input
8 V3 CH3 Voltage signal input
9 I3 CH3 Current signal input
Pin No.
Name
Function
1 V4
Analog input
CH4 Voltage signal input
2 I4 CH4
Current signal input
3 V5 CH5
Voltage signal input
4 I5 CH5 Current signal input
5 COM Input common
6 V6 CH6 Voltage signal input
7 I6 CH6 Current signal input
8 V7 CH7
Voltage signal input
9 I7 CH7
Current signal input
(Note 1): For inputting a current signal, connect the V terminal and I terminal externally.
(Note 2):Two COM terminals are connected internally.

Panasonic FP0R Series Specifications

General

Model	FP0R Series
Expansion	Up to 3 expansion units
Type	Programmable Controller
Processing Speed	0.08 µs/step
Communication Ports	RS232C, RS485
Power Supply	24 V DC
Operating Temperature	0°C to 55°C
I/O Points	Up to 128 points
CPU Type	32-bit RISC
Program Memory	Flash ROM
Dimensions	90mm x 60mm x 25mm (varies by model)
