Panasonic FP0R Series User Manual

Creating Programs
4-36

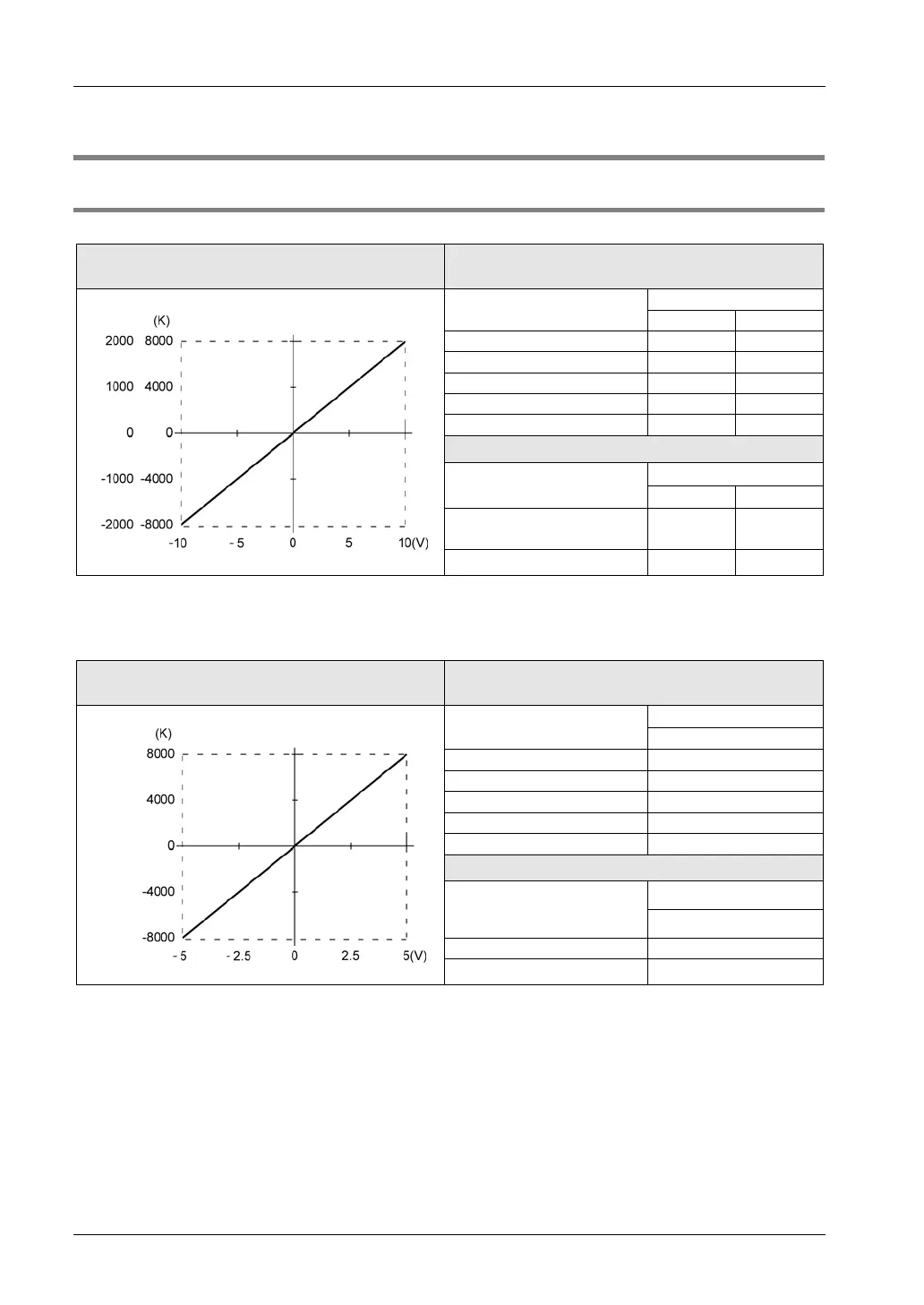

4.5 I/O Conversion Characteristics
4.5.1 Input Conversion Characteristics (Voltage Range)
 -10V to +10V DC input
Conversion characteristic Correspondence table of A/D Conversion
values
Input voltage (V)
Digital value
12-bit
14-bit
-10.0
-2000
-8000
-5.0
-1000
-4000
0
0
0
5.0
1000
4000
10.0
2000
8000
If the input value is out of the range
Input voltage (V)
Digital value
12-bit 14-bit
-10V or less -2000 -8000
10V or more 2000 8000
(Note 1): In the analog input unit Ver.1.1 or earlier or the analog I/O unit, a digital conversion value equivalent to the
analog input of approx. 2 V is saved in the device (WX), for the channels to which no input is connected. The
analog input unit Ver.1.2 or later are equivalent to approx. 0V.
 -5V to +5V DC input (14-bit mode only)
Conversion characteristic
Correspondence table of A/D Conversion
values
Input voltage (V)
Digital value
14-bit
-5.0
-8000
-2.5
-4000
0
0
2.5
4000
5.0
8000
If the input value is out of the range
Input voltage (V)
Digital value
14-bit
-5V or less
-8000
5V or more 8000
(Note 1): In the analog input unit Ver.1.1 or earlier or the analog I/O unit, a digital conversion value equivalent to the
analog input of approx. 2 V is saved in the device (WX), for the channels to which no input is connected. The
analog input unit Ver.1.2 or later are equivalent to approx. 0V.

Panasonic FP0R Series Specifications

General

Model	FP0R Series
Expansion	Up to 3 expansion units
Type	Programmable Controller
Processing Speed	0.08 µs/step
Communication Ports	RS232C, RS485
Power Supply	24 V DC
Operating Temperature	0°C to 55°C
I/O Points	Up to 128 points
CPU Type	32-bit RISC
Program Memory	Flash ROM
Dimensions	90mm x 60mm x 25mm (varies by model)
