Panasonic FP0R Series User Manual

4.5 I/O Conversion Characteristics
4-37

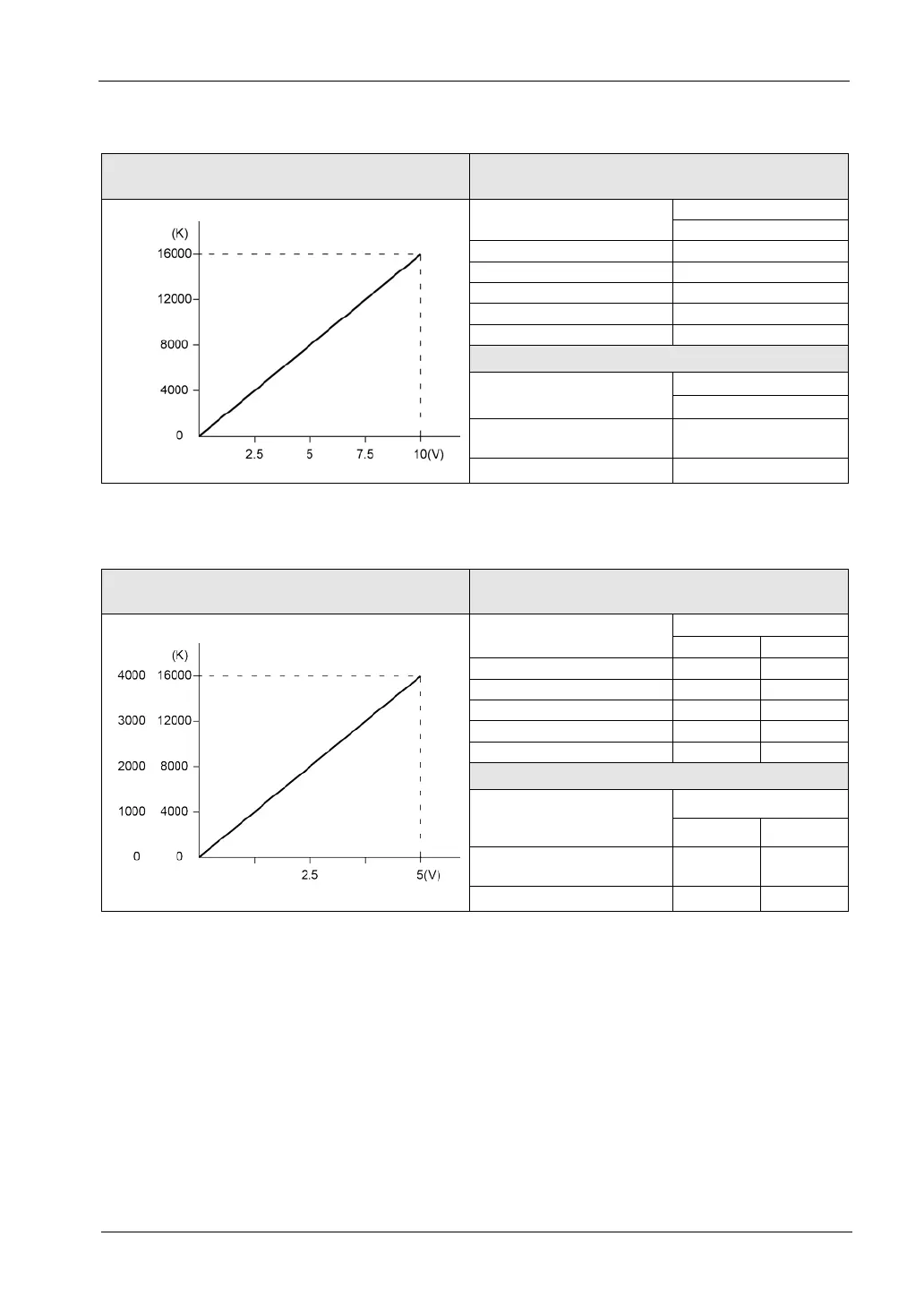

 0V to 10V DC input (14-bit mode only)
Conversion characteristic Correspondence table of A/D Conversion
values
Input voltage (V)
Digital value
14-bit
0.0
0
2.5
4000
5.0
8000
7.5
12000
10.0
16000
Processing if the range is exceeded
Input voltage (V)
Digital value
14-bit
0V or less (including
negative value)
0
10V or more 16000
(Note 1): In the analog input unit Ver.1.1 or earlier or the analog I/O unit, a digital conversion value equivalent to the
analog input of approx. 2 V is saved in the device (WX), for the channels to which no input is connected. The
analog input unit Ver.1.2 or later are equivalent to approx. 0V.
 0V to 5V DC input
Conversion characteristic
Correspondence table of A/D Conversion
values
Input voltage (V)
Digital value
12-bit
14-bit
0.0
0
0
1.25
1000
4000
2.5
2000
8000
3.75
3000
12000
5.0
4000
16000
Processing if the range is exceeded
Input voltage (V)
Digital value
12-bit 14-bit
0V or less (including
negative value)
0 0
5V or more 4000 16000
(Note 1): In the analog input unit Ver.1.1 or earlier or the analog I/O unit, a digital conversion value equivalent to the
analog input of approx. 2 V is saved in the device (WX), for the channels to which no input is connected. The
analog input unit Ver.1.2 or later are equivalent to approx. 0V.

Panasonic FP0R Series Specifications

General

Model	FP0R Series
Expansion	Up to 3 expansion units
Type	Programmable Controller
Processing Speed	0.08 µs/step
Communication Ports	RS232C, RS485
Power Supply	24 V DC
Operating Temperature	0°C to 55°C
I/O Points	Up to 128 points
CPU Type	32-bit RISC
Program Memory	Flash ROM
Dimensions	90mm x 60mm x 25mm (varies by model)
