4.5 I/O Conversion Characteristics
4-39
4.5.2 Input conversion Characteristics (Current Range)

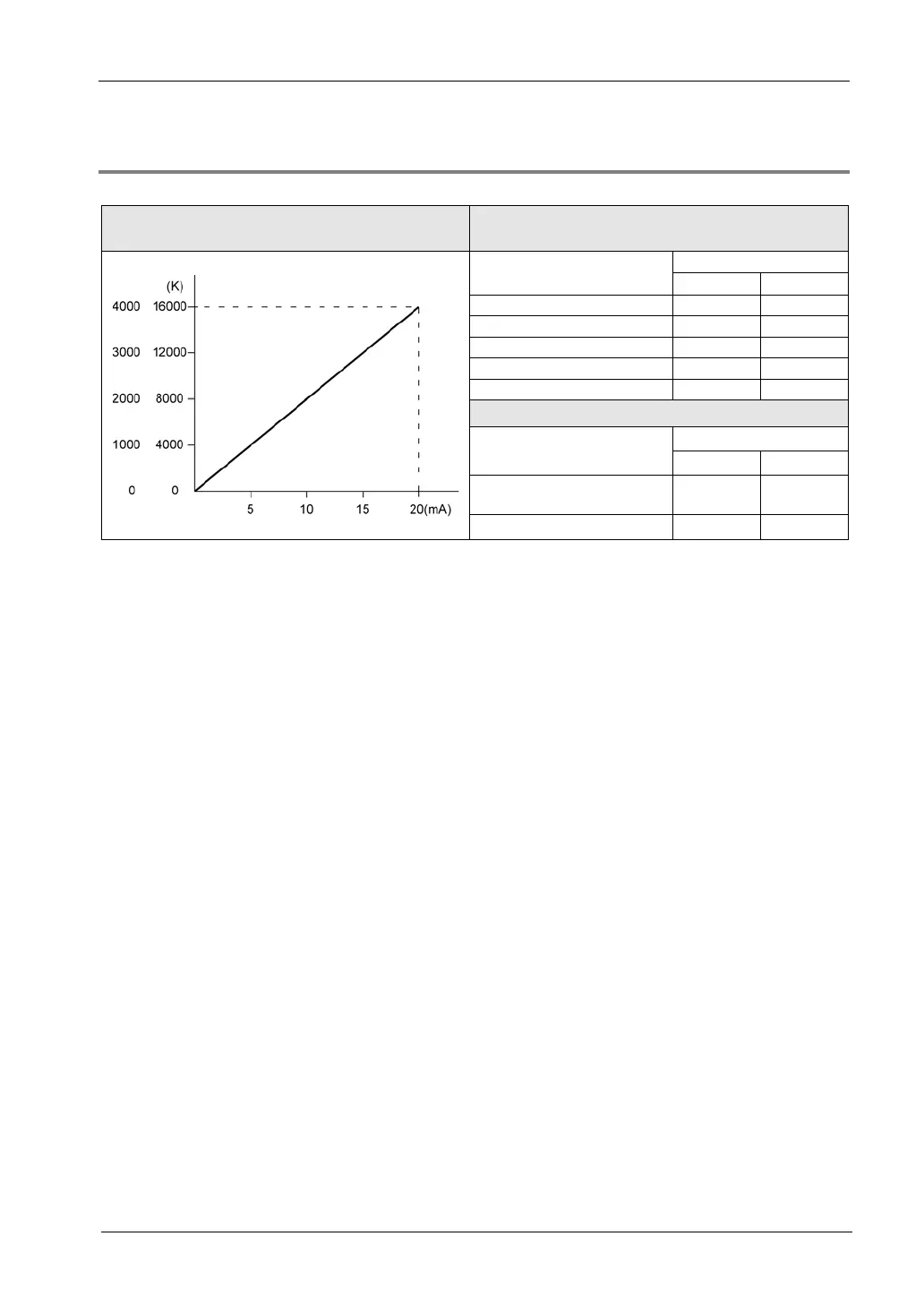

0mA to 20mA DC input
Conversion characteristic Correspondence table of A/D Conversion
values
Input current (mA)
Digital value
12-bit
14-bit
0.0
0
0
5.0
1000
4000
10.0
2000
8000
15.0
3000
12000
20.0
4000
16000
Processing if the range is exceeded
Input current (mA)
Digital value
12-bit 14-bit
0mA or less(including
negative value)
0 0
20mA or more 4000 16000
