Creating Programs
4-38
 -100mV to +100mV DC input (12-bit mode only)

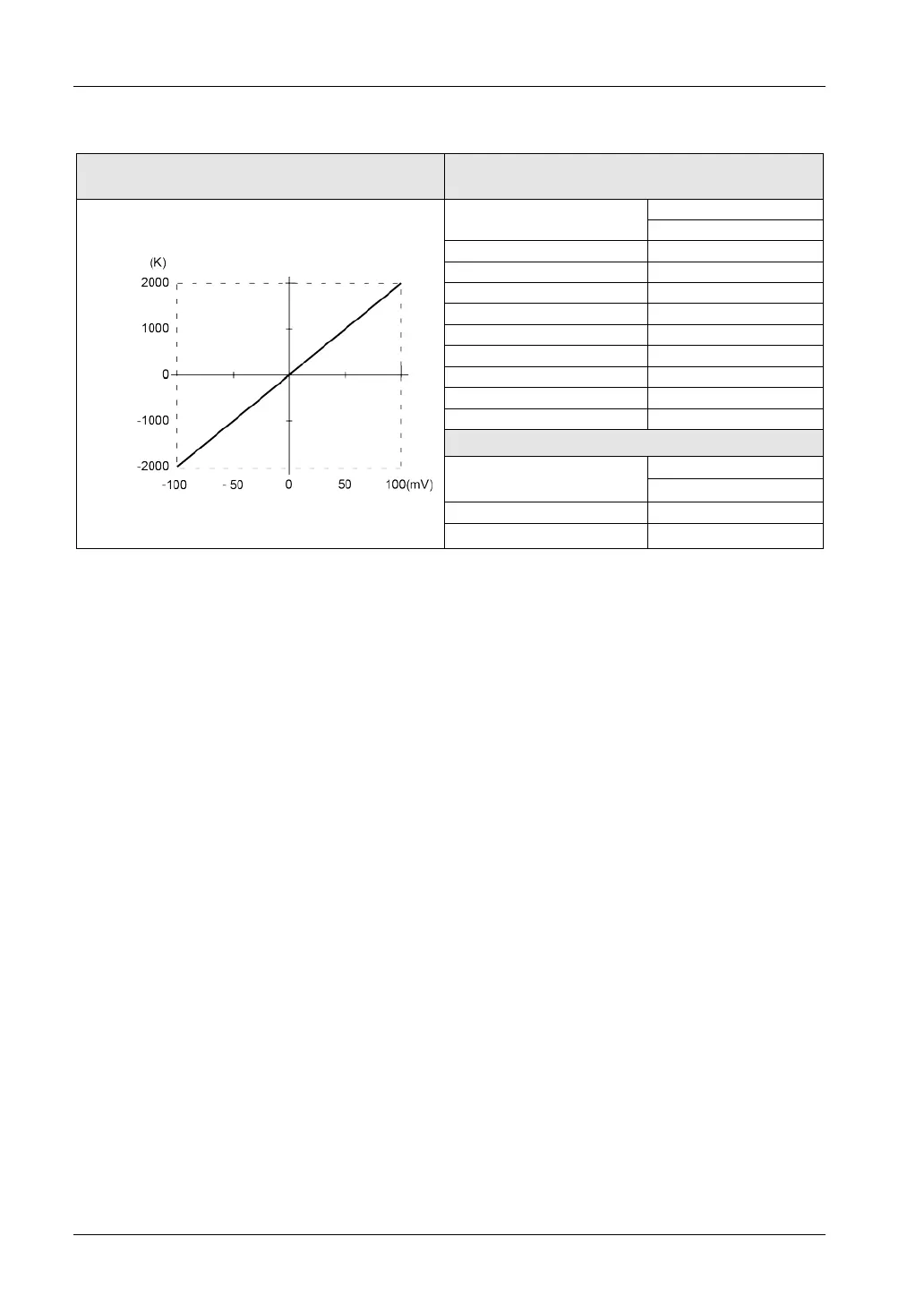

Conversion characteristic Correspondence table of A/D Conversion
values
Input voltage (mV)
Digital value
12-bit
-100.0
-2000
-75.0
-1500
-50.0
-1000
-25.0
-500
0.0
0
+25.0
+500
+50.0
+1000
+75.0
+1500
+100.0
+2000
Processing if the range is exceeded
Input voltage (V)
Digital value
12-bit
-100mV or less
-2000
+100mV or more +2000
(Note 1): Installed in the unit of Ver.1.2 and after (only 12-bit mode).
