Compatibility with Conventional Models
7.1 Analog Input Unit
7.1.1 Compatibility with Conventional Models

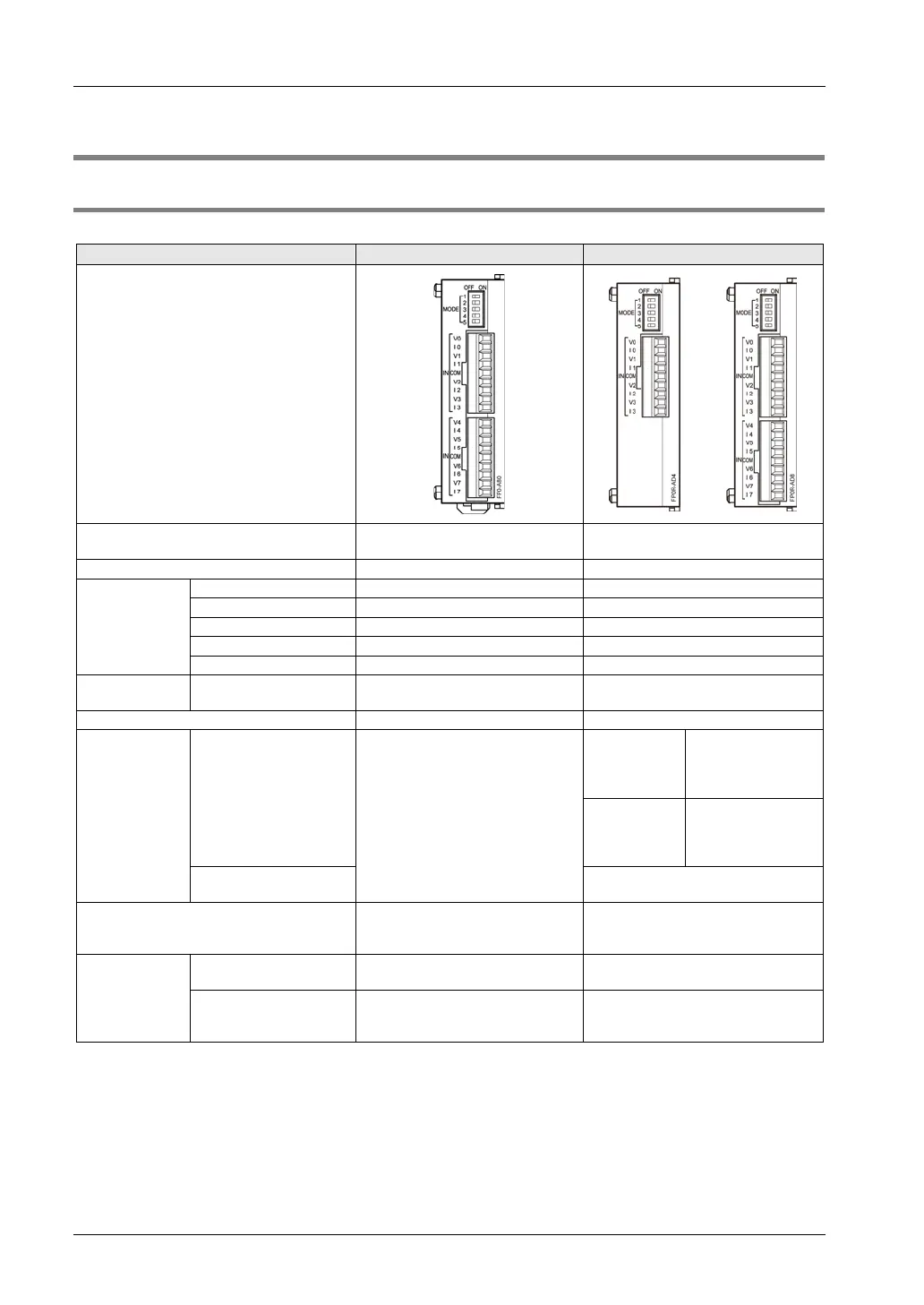

Specification Comparison Chart
Appearance
Resolution and Operation mode 12-bit (1/4000)
12-bit (1/4000)
14-bit (1/16000) (Note 1)
4 ch or 8 ch (Each model)
Analog input
voltage range
Analog input
current range
0 to 20 mA Available Available
Overall
precision
Voltage
±0.6%F.S. or less (at 25°C)
±1%F.S. or less (at 0 to 55°C)
At ±100 mV
(Note 4)
(at 25°C)
±1.0%F.S. or less
Others
(at 25°C)
±0.4%F.S. or less
Current
±0.3%F.S. or less (at 25°C)
±0.6%F.S. or less (at 0 to 55°C)
Analog input averaging function Available (Moving average)
Available (Moving average 10
times/ No. of averaging times: 64
times or 128 times) (Note 3)
Power supply
(24V DC)
Needed, 60mA or less Not needed
consumption current
20 mA or less 45 mA or less (Note 5)
(Note 1):The resolution and operation mode is switched by the mode switch.
(Note 2):When selecting the 14-bit mode, the range can be set for each channel separately by user programs. Also,
the ranges of -5 to 5 V DC and 0 to 10 V DC can be set by user programs only when selecting the 14-bit mode.
(Note 3):When selecting the 14-bit mode, the averaging method can be set for each channel separately by user
programs. For details of the averaging methods, refer to the chapter 5 "Analog Input Averaging Processing".
(Note 4): Installed in the unit of Ver.1.2 and after (only 12-bit mode).
(Note 5): In the case of the unit of Ver.1.2 and after; 20 mA for the unit of Ver.1.1 or older.
