Panasonic FP0R Series User Manual

4.2 Analog input unit (FP0R-AD4/AD8)
4-5

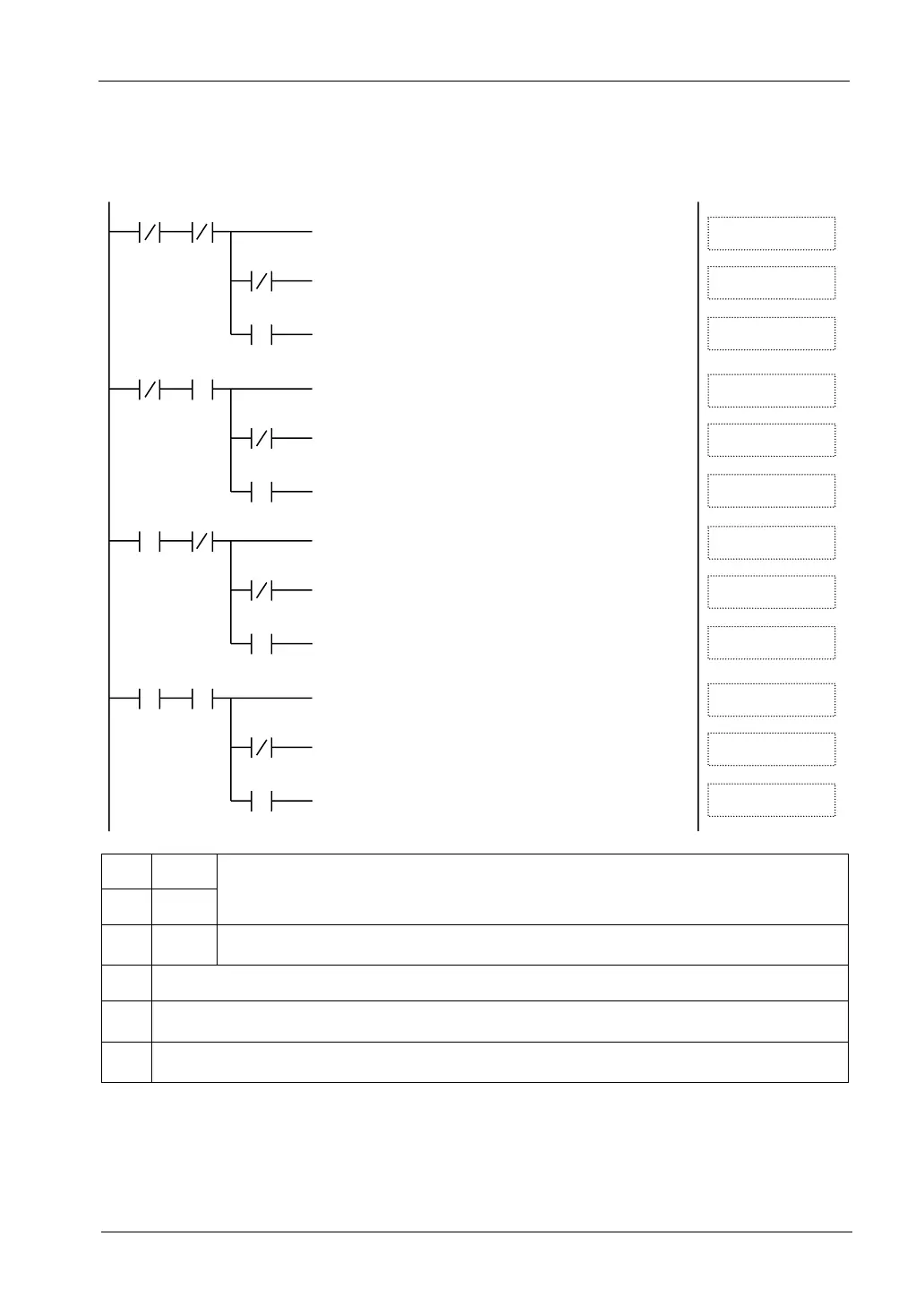

 Sample program (Analog input: For ranges of -10 V to +10 V and -5 V to +5 V)
The following program shows the case that conversion data of the first expansion analog input
unit (CH0 to CH7) is read and stored in DT0 to DT7.
[ F65 WAN
, WX3 , H3FFF , DT1 ]
[ F0 MV
, WX2 , DT0 ]
X3F
X3D
③
ⓐ
X3E
②①
[ F66 WOR , WX3 , HC000 , DT1 ]
X3D
③
ⓑ
ⓒ
[ F65 WAN , WX3 , H3FFF , DT3 ]
[ F0 MV , WX2 , DT2 ]
X3F
X3D
③
ⓐ
X3E
②①
[ F66 WOR , WX3 , HC000 , DT3 ]
X3D
③
ⓑ
ⓒ
[ F65 WAN , WX3 , H3FFF , DT5 ]
[ F0 MV , WX2 , DT4 ]
X3F
X3D
③
ⓐ
X3E
②①
[ F66 WOR , WX3 , HC000 , DT5 ]
X3D
③
ⓑ
ⓒ
[ F65 WAN , WX3 , H3FFF , DT7 ]
[ F0 MV , WX2
,
DT6 ]
X3F
X3D
③
ⓐ
X3E
②①
[ F66 WOR , WX3 , HC000 , DT7 ]
X3D
③
ⓑ
ⓒ
①
X3F
The channels of conversion data read by turning on/off the conversion data switching flags X3F
and X3E are distinguished.
②
X3E
③
X3D
The signs of conversion data of read odd numbered channels are distinguished. When plus,
OFF. When minus, ON.
ⓐ
Conversion data of even numbered channels CH0/CH2/CH4/CH6 is transferred as is.
ⓑ
When the data of odd numbered channels CH1/CH3/CH5/HC7 is positive, the most significant two bits
are masked by "00" with F65 WAN (AND) instruction, and the data is stored in DT1/DT3/DT5/DT7.
ⓒ
When the data of odd numbered channels CH1/CH3/CH5/HC7 is negative, the most significant two bits
are masked by "11" with F66 WOR (OR) instruction, and the data is stored in DT1/DT3/DT5/DT7.

Panasonic FP0R Series Specifications

General

Model	FP0R Series
Expansion	Up to 3 expansion units
Type	Programmable Controller
Processing Speed	0.08 µs/step
Communication Ports	RS232C, RS485
Power Supply	24 V DC
Operating Temperature	0°C to 55°C
I/O Points	Up to 128 points
CPU Type	32-bit RISC
Program Memory	Flash ROM
Dimensions	90mm x 60mm x 25mm (varies by model)
