Panasonic FP0R Series User Manual

Creating Programs
4-12
 Sample program (12-bit mode: For the range of 4 to 20 mA)

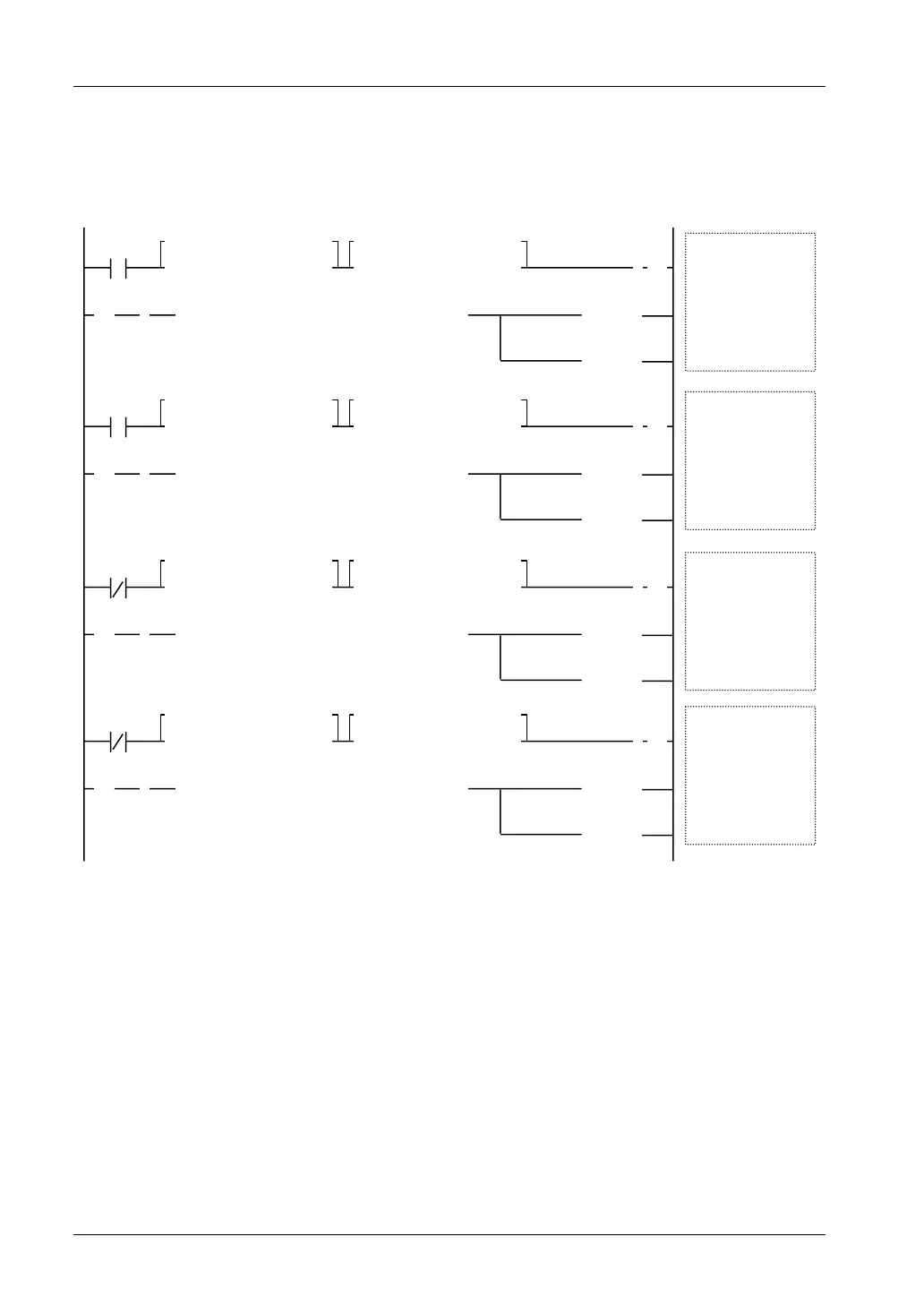

The following program shows the case that the data of DT0 to DT3 is converted and output to
the CH0 to CH3 of the first expansion analog output unit. The range for checking digital values
written in the output area is changed.
<= K 0 , DT0
R9012
[ F0 MV , DT0 , WY2 ]
1
< SET >
< RST >
Y2C
Y2D
>
1
>
>= K 4000 , DT0
①
④
⑤
② ③
ⓐ CH0
<= K 0 , DT1
R9012
[ F0 MV , DT1 , WY3 ]
1
< SET >
< RST >
Y3C
Y3D
>
1
>
>= K 4000 , DT1
①
② ③
ⓑ CH1
< SET >
<= K 0 , DT2
R9012
[ F0 MV , DT2 , WY2 ]
1
< RST >
Y2C
Y2D
>
1
>
>= K 4000 , DT2
①
② ③
ⓒCH2
<= K 0 , DT3
R9012
[ F0 MV , DT3 , WY3 ]
1
< RST >
< SET >
Y3C
Y3D
>
1
>
>= K 4000
, DT3
①
② ③
ⓓCH3
⑥
⑦
④
⑤
⑥
⑦
