Panasonic FP0R Series User Manual

4.5 I/O Conversion Characteristics
4-41

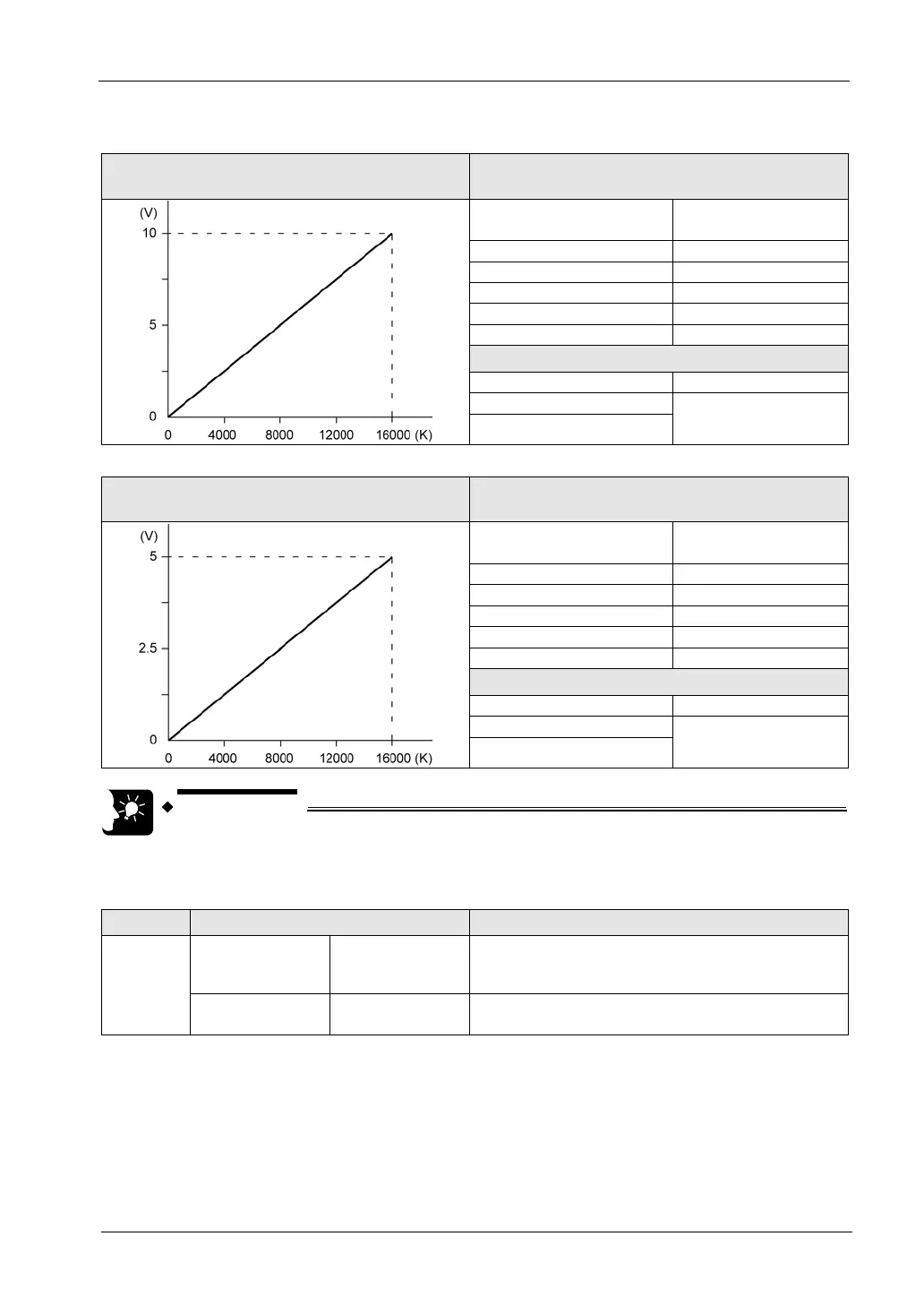

 0V to 10V DC output (14-bit mode only)
Conversion characteristic Correspondence table of D/A Conversion
values
Digital value
Output voltage (V)
14-bit
0
0.0
4000
2.5
8000
5.0
12000
7.5
16000
10.0
Processing if the range is exceeded
Digital input value
Output voltage (V)
Including negative value
Refer to the following
notes.
16001 or more
 0V to 5V DC output (14-bit mode only)
Conversion characteristic Correspondence table of D/A Conversion
values
Digital value
Output voltage (V)
14-bit
0
0.0
4000
1.25
8000
2.5
12000
3.75
160000
5.0
Processing if the range is exceeded
Digital input value
Output voltage (V)
Including negative value
Refer to the following
notes.
16001 or more
KEY POINTS
• The following operations are performed when a value exceeding the
allowable range is written. Always insert a program for checking the upper
and lower limits right before a program for writing data.
Mode Data range Description
14-bit
mode
-1 or less 16384 or more
The bits F and E of a written value may be regarded as
channel switching flags and converted to an unintended
value and output.
--- 16001 to 16383
The value does not change and the previous value is
held.
