Communication
FPΣ User's Manual
238

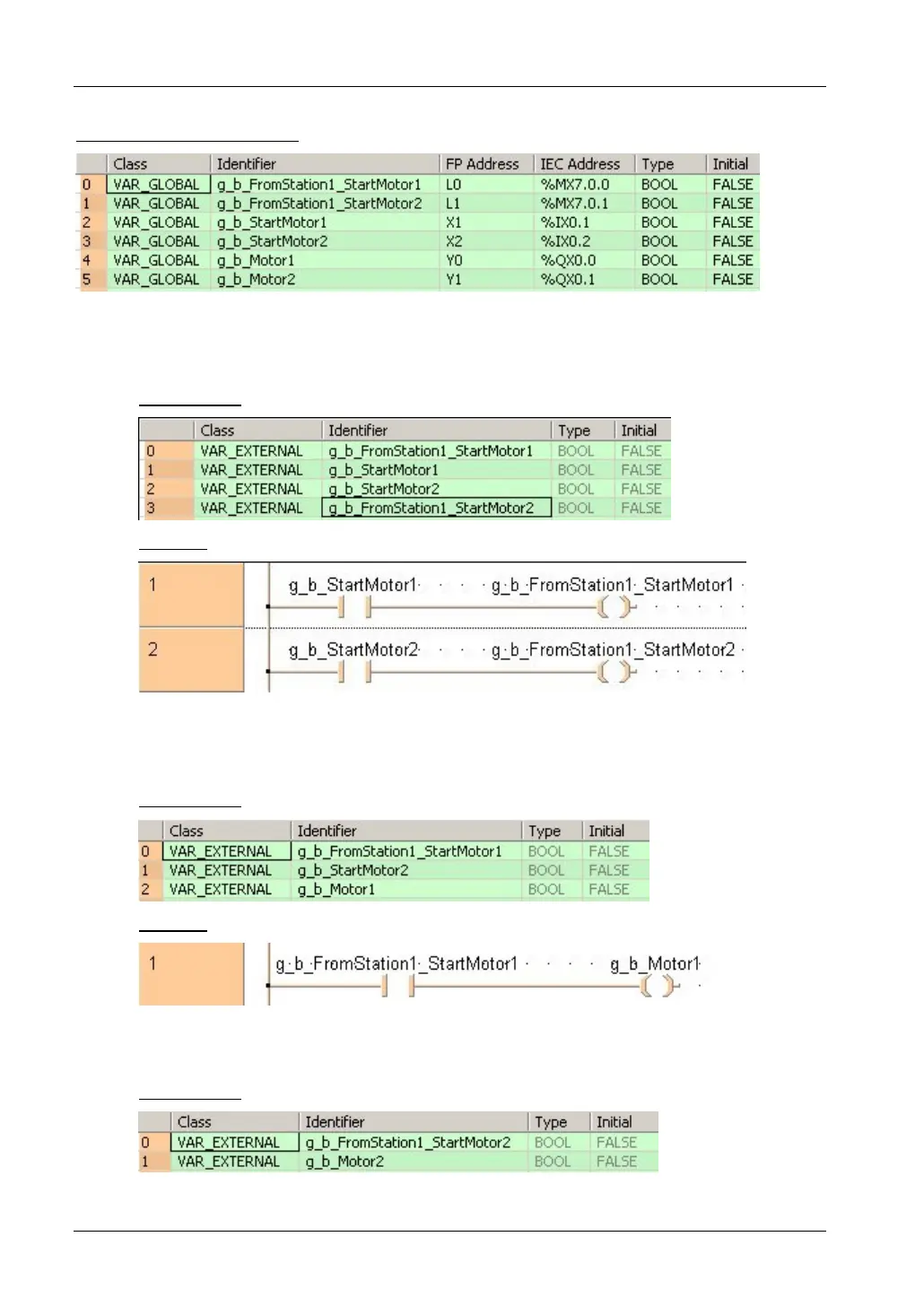

GVL in common user library
• Station #1:
When g_b_StartMotor1 is TRUE, g_b_FromStation1_StartMotor1 turns to TRUE;
when g_b_StartMotor2 is TRUE, g_b_FromStation1_StartMotor2 turns to TRUE.
POU Header
LD Body
• Station #2:
When g_b_FromStation1_StartMotor1 is TRUE, the output g_b_Motor1 turns to
TRUE.
POU Header
LD Body
• Station #3:
When g_b_FromStation1_StartMotor2 is TRUE, the output gb_Motor2 turns to TRUE.
POU Header
