FPΣ User's Manual
6.1 Installation
73

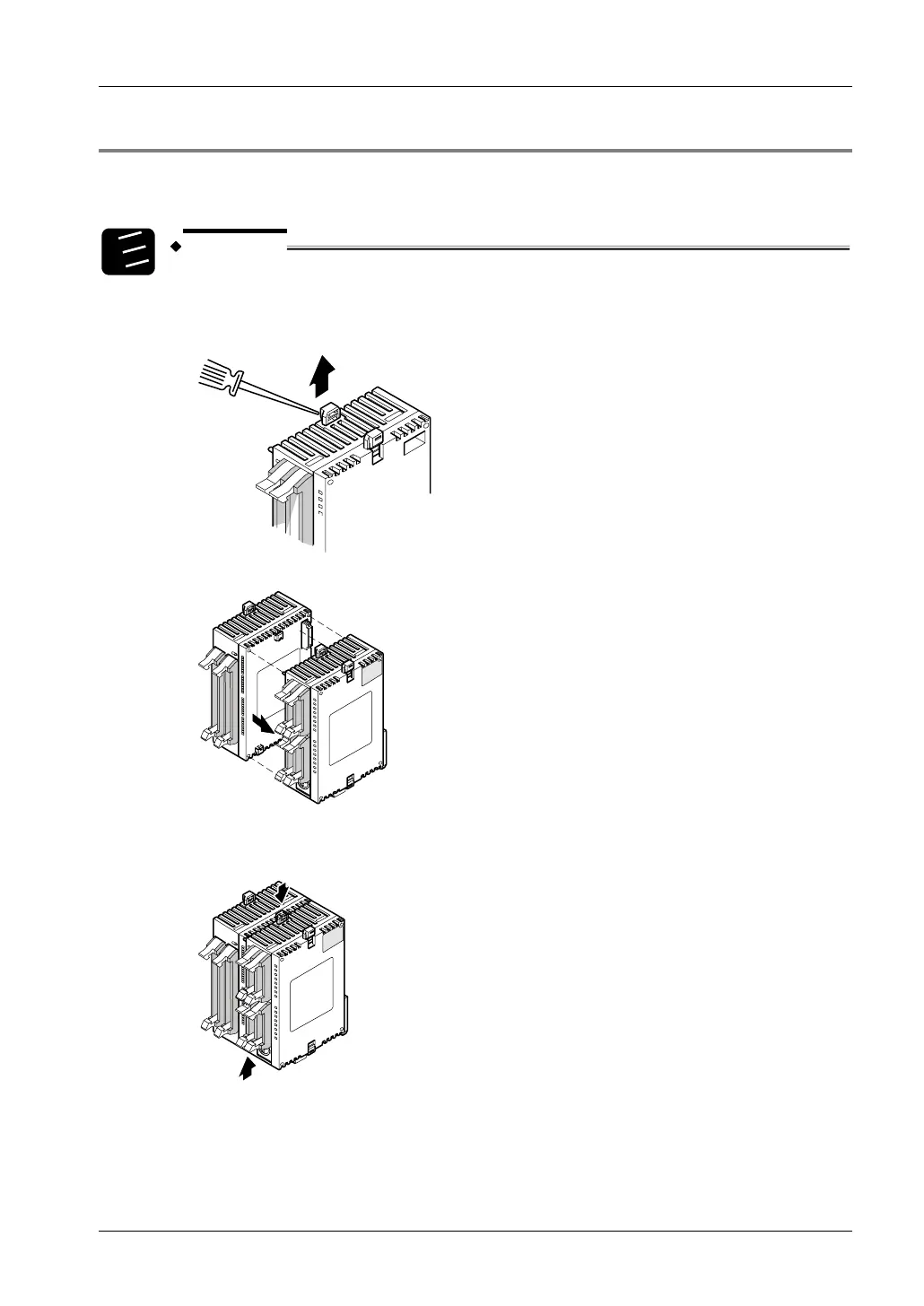

6.1.4 Connecting FPΣ Expansion Units
The dedicated FPΣ expansion units are connected to the left side of the CPU. Use the
expansion connector and the expansion hooks on the side of the unit.
1.
2.
3.
Procedure
1. Remove cover on left side of unit to expose expansion connector
2. Raise expansion hooks on top and bottom of the unit
3. Align pins and holes in all four corners
4. Insert pins into holes so that there is no gap between units
5. Push expansion hooks back into place
You can now add up to three more units in the same manner.
