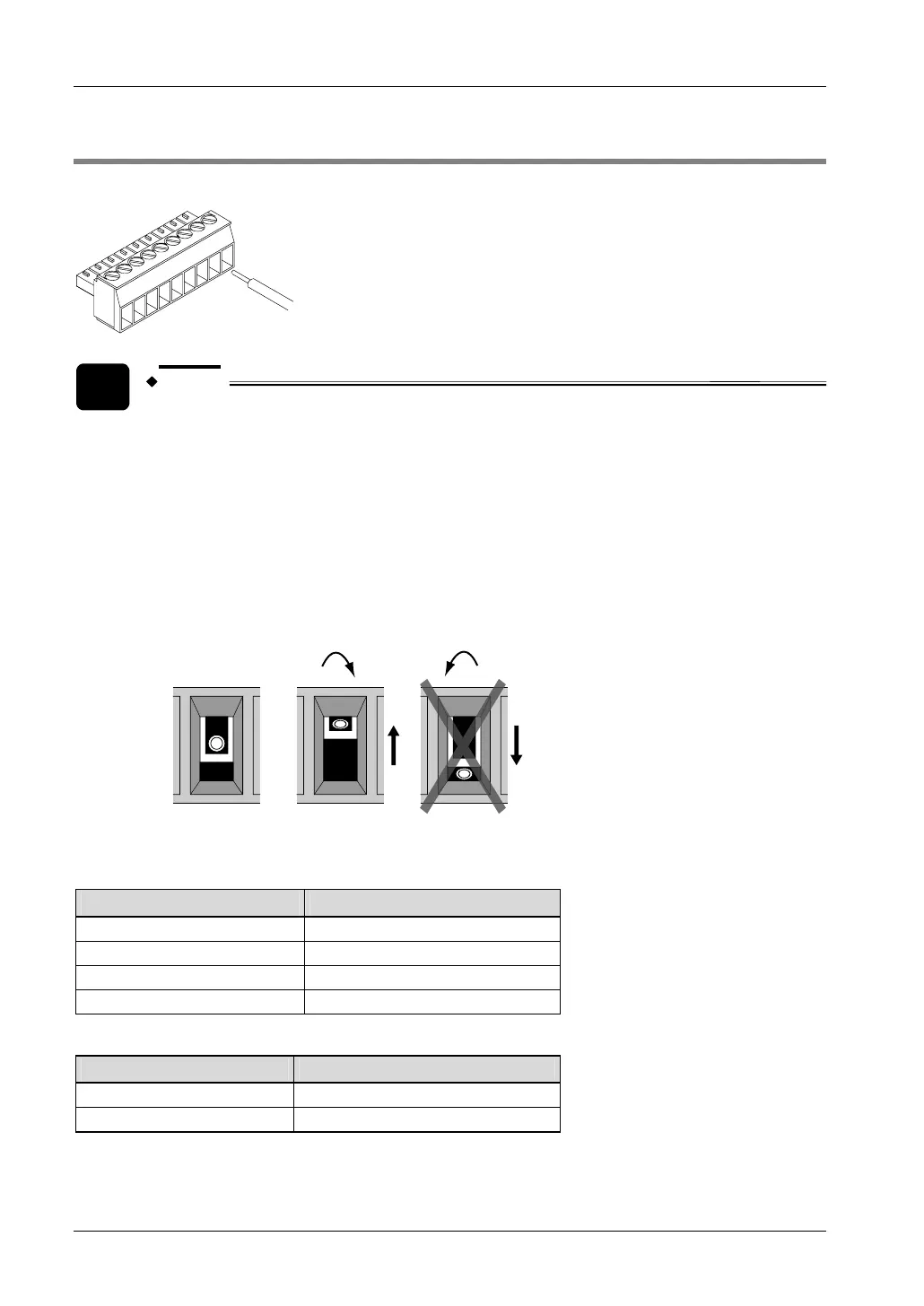

6.6 Wiring the Terminal Block
Screw-type terminal blocks are used. The suitable wires are given below.
NOTE
• When removing the wire's insulation, be careful not to scratch the core wire.
• Do not twist the wires to connect them.
• Do not solder the wires to connect them. The solder may break due to
vibration.
• After wiring, make sure stress is not applied to the wire.
• If the socket in the terminal block closes upon counter-clockwise rotation,
the connection is wrong. Disconnect the wire, check the terminal hole, and
then re-connect the wire.
OK
Terminal block
Item Description
Number of pins
9
Manufacturer
Phoenix Contact Co.
Model
MC1,5/9-ST-3,5
Product no.
1840434
Suitable wire
Size Cross-sectional area [mm
2
]
AWG22
0.3
AWG24–16
0.2–1.25
