Digiplex EVO • Programming Guide
Version 7.11
Keypad Programming | 65
Keypad Programming
Use the following section to program keypads on your EVO system. Use Worksheet 48 on page 66 to Worksheet 50 on page 66 to record your settings.
K641R/K641LX/K641+ and K656
The keypad’s serial number can be found on the keypad’s PC board. It can also be viewed by pressing and holding 0, entering the installer code, and then accessing
section [0000]. The keypad’s firmware version is also displayed in this section.

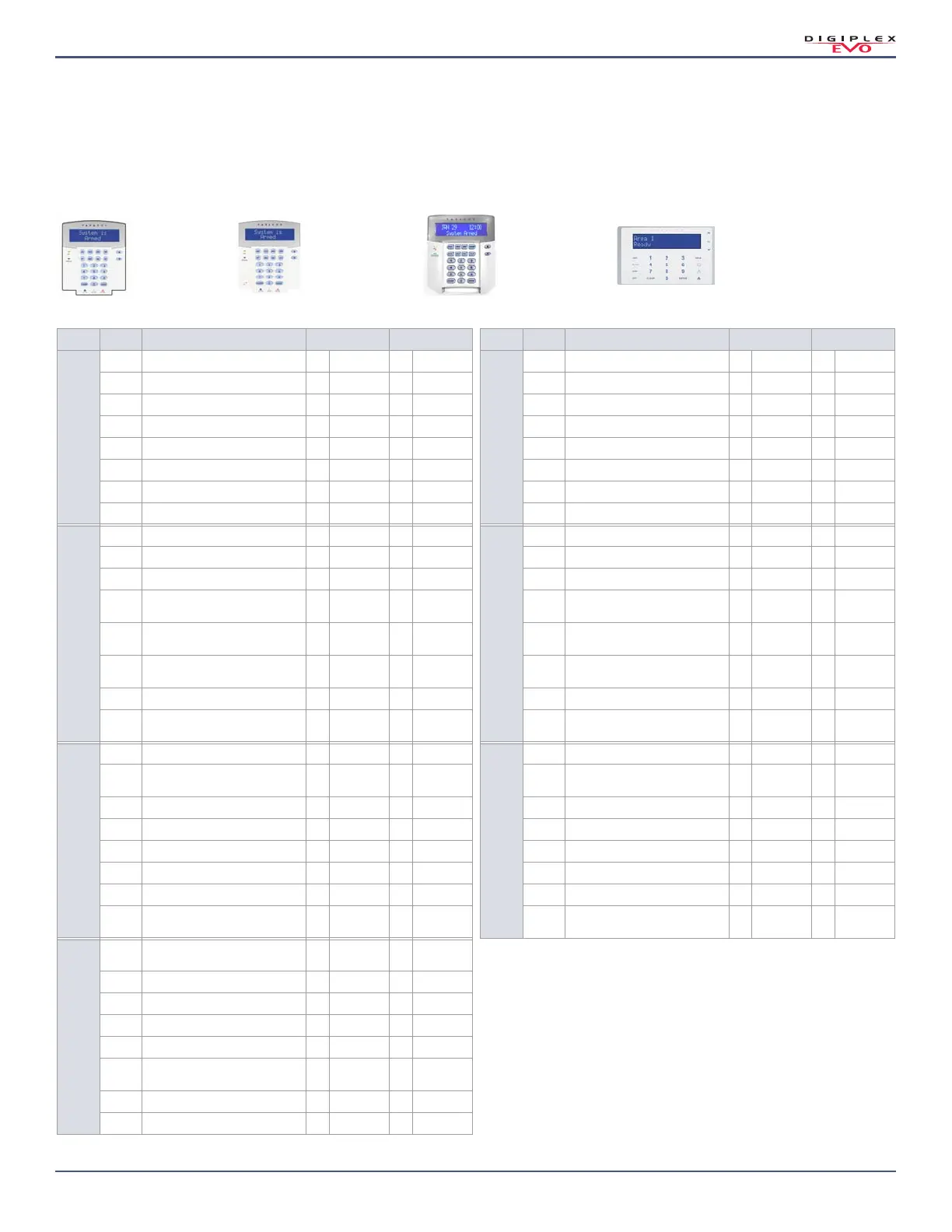

Figure 5: The K641R/K641LX/K641+ and K656 Keypads.
Table 60: Description of Sections [001] to [006] for the K641R/K641LX/K641+ and K656 Keypads
Section Option Description OFF ON Section Option Description OFF ON
Section [001]
Keypad Partition Assignment
1Partition 1

Disabled  Enabled
Section [002]
Assigning Doors to Partitions
1 Door assigned to partition 1

Disabled  Enabled
2Partition 2

Disabled  Enabled 2 Door assigned to partition 2  Disabled

Enabled
3Partition 3

Disabled  Enabled 3 Door assigned to partition 3  Disabled

Enabled
4Partition 4

Disabled  Enabled 4 Door assigned to partition 4  Disabled

Enabled
5Partition 5

Disabled  Enabled 5 Door assigned to partition 5  Disabled

Enabled
6Partition 6

Disabled  Enabled 6 Door assigned to partition 6  Disabled

Enabled
7Partition 7

Disabled  Enabled 7 Door assigned to partition 7  Disabled

Enabled
8Partition 8

Disabled  Enabled 8 Door assigned to partition 8  Disabled

Enabled
Section [003]
General Options 1
1 Display code entry  Disabled

Enabled
Section [004]
General Options 2
1Mute keypad  Disabled

Enabled
2 Display exit delay  Disabled

Enabled 2 Exit delay beep

Disabled  Enabled
3 Display entry delay  Disabled

Enabled 3 Door left open pre-arm*

Disabled  Enabled
4
Confidential mode (not for UL
installations)
 Disabled

Enabled 4 Chime on zone closure  Disabled

Enabled
5 Exit confidential mode  Enter code

Press
button
5 Door left open alarm feedback*

Silent  Audible
6 Future use

-

- 6 Door left open alarm follows* 
Alarm
restore

Beep timer
7 Future use

-

- 7 Door forced alarm*

Silent  Audible
8 Time display option  yy/mm/dd

dd/mm/yy 8 Door forced alarm* 
Alarm
restore

Beep timer
Section [005]
Beep on Trouble
1 System and clock trouble beep  Disabled

Enabled
Section [006]
PGM and Tamper Options
1 PGM state**  N.O.

N.C.
2 Communicator trouble beep  Disabled

Enabled 2 PGM deactivation mode** 
Deactivati
on event

PGM timer
3 Module and combus trouble beep  Disabled

Enabled 3 PGM base time  1 sec.

1 min.
4 All zone trouble beep  Disabled

Enabled 4 PGM Override**  Disabled

Enabled
5 Future use

-

-5Keypad tamper Disabled

Enabled
6 Future use

-

-6Future use

-

-
7Time format  24 hr. clock

12 hr. clock 7 Future use

-

-
8
Audible feedback on access
request

Disabled  Enabled 8 Future use

-

-
Section [006]
General Options 3 (K641R only)
1
Card activates door unlocked
schedule

Disabled  Enabled
= Default
* Section/option is only available on K641R.
** Section/option is only available on K641LX, K641+,and K656.
2 Door left open alarm  Disabled

Enabled
3 Door forced open alarm  Disabled

Enabled
4 Future use

-

-
5Keypad tamper  Disabled

Enabled
6 Re-lock door 
After
opening

After
closing
7 Future use

-

-
8 Unlock on REX  Disabled

Enabled
K641R
K641LX
K641+
K656

Paradox Digiplex EVO EVO192 V7.11 Specifications

General

Zones	8 on board, expandable to 192
Partitions	8
User Codes	999
PGM Outputs	5 on board, expandable to 250
Remote Firmware Upgrade	Yes
Expandable	Yes
Memory	2048 events
Event Buffer	2048 events
PGMs	5 on board, expandable to 250
Communication	Supports GSM/GPRS/IP reporting
Battery Backup	7 Ah
Number of Zones	8 (expandable to 192)
Operating Temperature	0°C to 50°C (32°F to 122°F)
Humidity	5% to 90% non-condensing
Compatibility	Paradox EVO series
