Digiplex EVO • Programming Guide
Version 7.11
Keypad Programming | 71
Label Programming
Each section, from [101] to [148], [200] to [204], and [301] to [396], contains one label with a maximum of 16 characters. These sections contain the following
labels:
•Sections [101] to [148]: zone 01 to zone 48, respectively
•Section [200] = Paradox Security
•Sections [201] to [204]: first area, second area, third area, and fourth area
•Sections [301] to [396]: code 01 to code 96, respectively
After entering the section corresponding to the desired label, the label can be re-programmed to suit your installation needs (refer to Table 73 on page 71). For
example, section [101] (Zone 01) can be changed to Front Door.

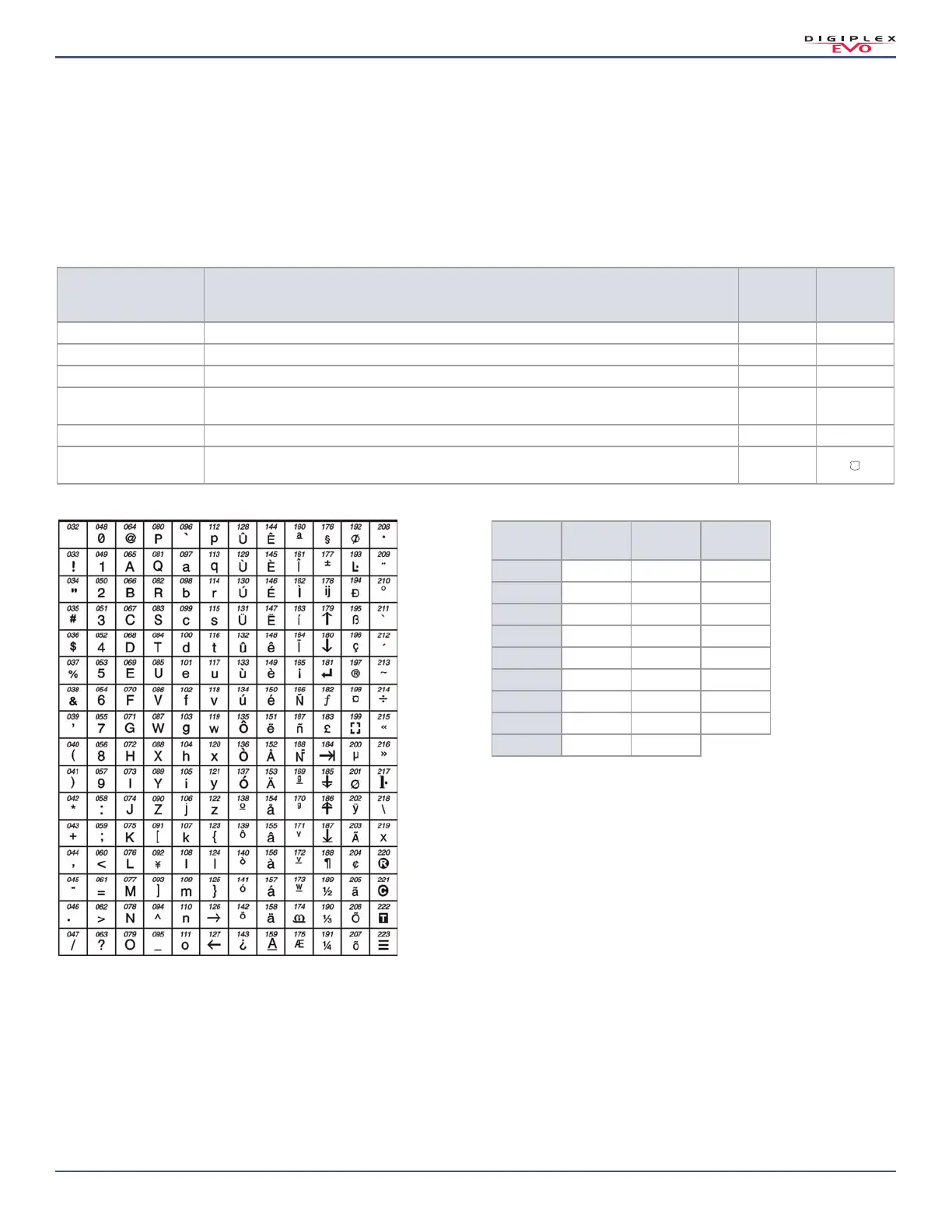

Figure 7: Special Characters for Label Programming.
Table 73: Description of the Special Function Keys, used for Programming Labels on the K641R/K641LX/K641+ and K656 Keypads
Function Description
K641R/
K641LX/
K641+
K656
Insert space Insert a blank space at the current cursor’s position.
STAY STAY
Delete Delete the character or blank space found at the cursor’s current position. FORCE SLEEP
Delete until end of entry Delete all characters and spaces to the right of the cursor, as well as at the cursor’s current position. ARM ARM
Numeric/alphanumeric
Toggle from numeric to alphanumeric keys, and vice versa. Numeric: keys 0 to 9 represent numbers 0
to 9; alphanumeric: refer to Table 74 on page 71.
DISARM OFF
Lower/upper case Toggle from lower to upper case, and vice versa. BYP MENU
Special characters
After pressing this key, the cursor will turn into a flashing black square. Using the special characters
outlined in Figure 7 on page 71 , enter the three-digit number for the desired character.
MEM
Table 74: Description of Alphanumeric Key Inputs
Key
Press Key
Once
Press Key
Twice
Press Key
Three Times
1ABC
2DEF
3GH I
4JKL
5MNO
6PQR
7STU
8VWX
9YZ
To Next Page
