13-3 The Default Applications
AC10 Inverter

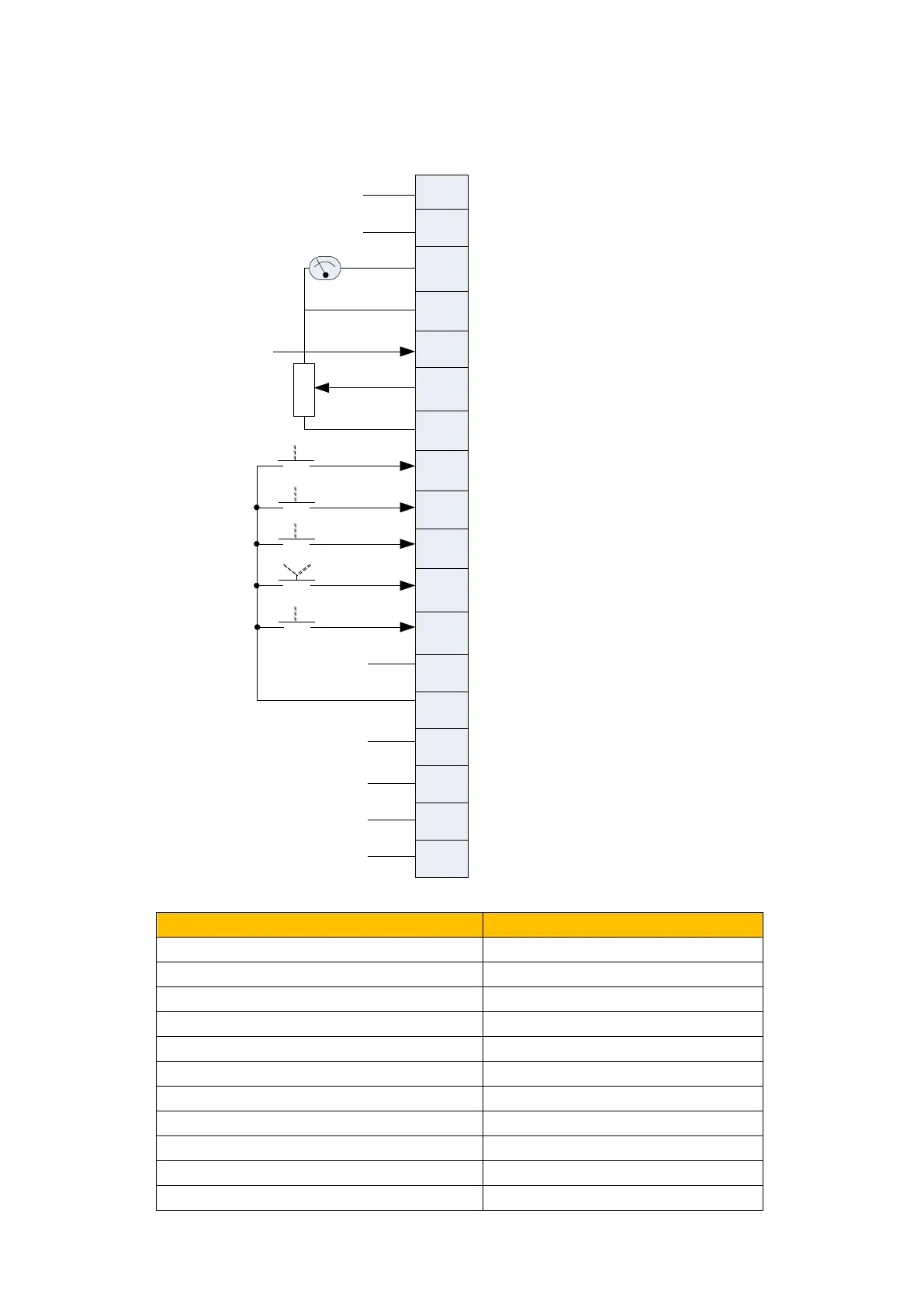

This Application is ideal for general purpose applications. The set-point is the sum of the two
analogue inputs AI1 and AI2, providing Speed Set-point + Speed Secondary capability.
Function setting
Setting value
F228 Macro selection
1: Basic speed control
F106 Control mode
2: VF control
F203 Main frequency source X
1: AI1
F204 Accessorial frequency source Y
2: AI2
F207 Frequency source selecting
1: X+Y
F316 DI1 terminal function setting
1: Running terminal
F317 DI2 terminal function setting
58: Direction
F318 DI3 terminal function setting
52: Jogging terminal (no direction)
F319 DI4 terminal function setting
2: Stop terminal
F320 DI5 terminal function setting
8: Free stop terminal
F431 AO1 analog output signal selecting
0: Running frequency
Coast stop
1
2
3
5
6
4
7
8
9
10
11
12
13
14
15
16
17
18
TA
TB
TC
1DO
24V
CM
DI1
DI2
DI3
DI4
DI5
10V
1AI
2AI
GND
1AO
A
B 
REF
Stop
Jog
Direction
Run
Speed trim
not used
not used
Analog output
F431=0, running
frequency is output.
GND
Speed trim AI2 input 4-20 mA
Speed setpointAI1 input 0-10V
10V
Coast stop
Stop
Jog
The jogging direction is
controlled by DI2.
Direction
When the function is valid
,
inverter runs reverse
Run
CM
24V
not used
Relay output
