7-1 Installation & Connection
AC10 Inverter
Chapter 7 Installation & Connection
7.1 Installation

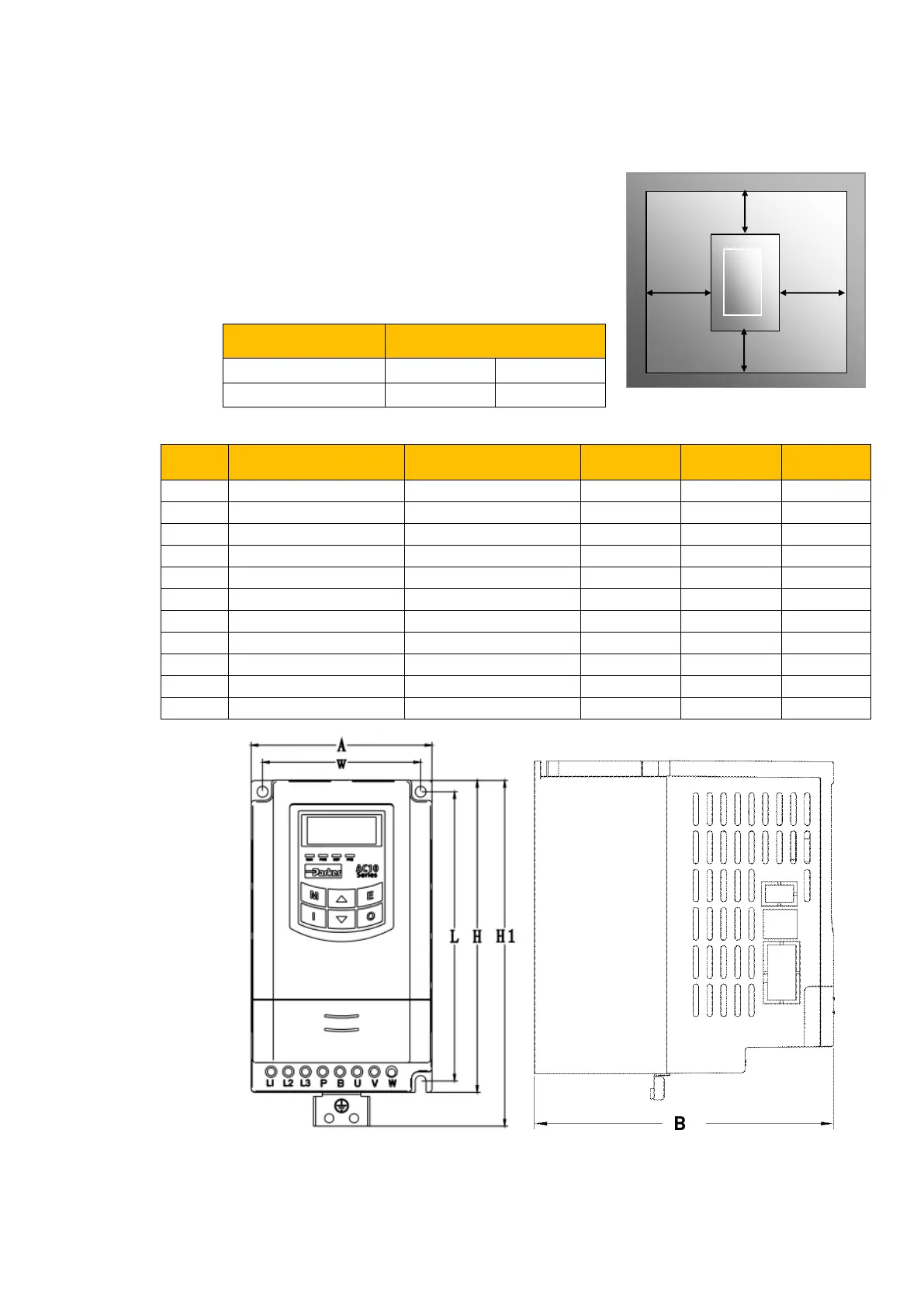

Inverter should be installed vertically, as shown in Figure
7-1. Sufficient ventilation space should be ensured in its
surrounding.
Clearance dimensions (recommended) are available
from Table 7-1 Clearance Dimensions for installing of
the inverter. Space between 2 drives 25mm.
Table 7-1 Clearance Dimensions
Frame
Part Number
External Dimension
A×B×H (H1) mm
Max Weight
kg
Mounting
Size(W×L)
Mounting
Bolt
1
10G-X1-XXXX-XX
80×135×138 (153)
1.25
70×128
M4
2
10G-X2-XXXX-XX
106×150×180 (195)
1.76
94×170
M4
3
10G-43-XXXX-XX
138×152 ×235 (250)
2.96
126×225
M5
4
10G-44-XXXX-XX
156×170×265 (280)
4.9
146×255
M5
5
10G-45-XXXX-XX
205×196 ×340 (355)
7.5
194×330
M5
6
10G-46-XXXX-XX
265 x 235 x 435
17
235x412
M6
7
10G-47-XXXX-XX
315 x 234 x 480
25
274x465
M8
8
10G-48-XXXX-XX
360 x 265 x 555
40
320x530
M8
9
10G-49-XXXX-XX
410 x 300 x 630
55
370x600
M10
10
10G-410-XXXX-XX
516 x 326 x 765
94
360x740
M10
11
10G-411-XXXX-XX
560 x 342 x 910
120
390x882
M10
.
Plastic Cover Layout
Frames 1 – 5
Note: H is the size of inverter without grounding plate.
H1 is the size of inverter with grounding plate.
Model
Clearance Dimensions
Plastic Housing
A≥150mm
B≥50mm
Metal Housing
A≥200mm
B≥100mm
A
B B
A
Inverter
Figure 7-1 Installation Sketch
