8-7 Operation and Simple Running
AC10 Inverter
ii. Press the “M” key, to enter the programming menu.
iii. Study the parameters of the motor: the operation process is the same as that of
example 1. (Refer to 8.3.1 for tuning of the motor).
iv. Set functional parameters of the inverter:
Jogging acceleration time
Jogging deceleration time
Display items for stop mode
v. Press and hold the “I” key until the motor is accelerated to the jogging frequency,
and maintain the status of jogging operation.
vi. Release the “I” key, or until motor reaches 0 speed;
vii. Switch off the main switch to power off the inverter.
8.3.4 Setting the frequency with analog terminal and controlling the operation with control
terminals

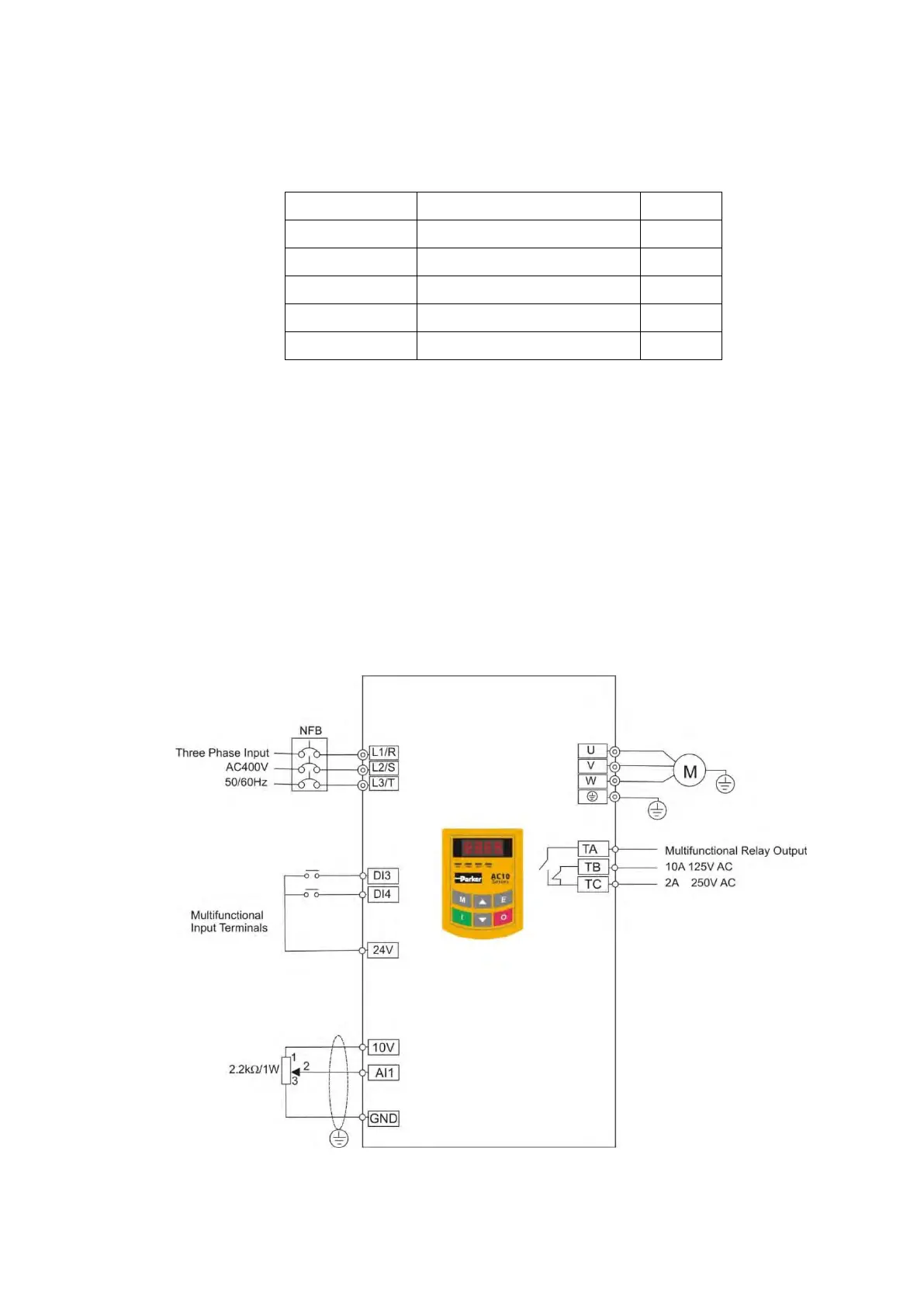

i. Connect the wires in accordance with Figure 8-3. After having checked the wiring
successfully, switch on the mains supply, and power on the inverter. Note: 2K～5K
potentiometer may be used for setting external analog signals. For the cases with
higher requirements for precision, a precise multiturn potentiometer is
recommended, and adopt shielded wire for the wire connection, with near end of
the shielding layer grounded reliably.
Figure 8-3 Wiring Diagram 3
