Parker 10G-46-0600-BF

7-11 Installation & Connection
AC10 Inverter
7.6.1 Terminal Tightening Torques
Frame Size
Power PCB
Terminal
Control PCB
Terminal
Cover
Power Supply,
Motor Terminal
Fan
Fan Cover
Frame 1
1.13Nm
0.6Nm
0.6Nm
1.13Nm
1.3Nm
1.3Nm
Frame 2
1.13Nm
0.6Nm
0.6Nm
1.13Nm
1.3Nm
1.3Nm
Frame 3
1.8Nm
0.6Nm
0.6Nm
1.8Nm
1.3Nm
1.3Nm
Frame 4
2.1Nm
0.6Nm
0.6Nm
2.1Nm
1.3Nm
1.3Nm
Frame 5
3.4Nm
0.6Nm
0.6Nm
3.4Nm
1.3Nm
1.3Nm
Frame 6
4.5Nm
0.6Nm
1.3Nm
4.5Nm
0.9Nm
0.9Nm
Frame 7
10 Nm
0.6Nm
1.3Nm
10 Nm
0.9Nm
0.9Nm
Frame 8
10 Nm
0.6Nm
2.4Nm
10 Nm
0.9Nm
0.9Nm
Frame 9
18 Nm
0.6Nm
2.4Nm
18 Nm
0.9Nm
0.9Nm
Frame 10
18 Nm
0.6Nm
2.4Nm
18 Nm
Big fan 1.5Nm
Small fan 2.4Nm
Frame 11
18 Nm
0.6Nm
2.4Nm
18 Nm

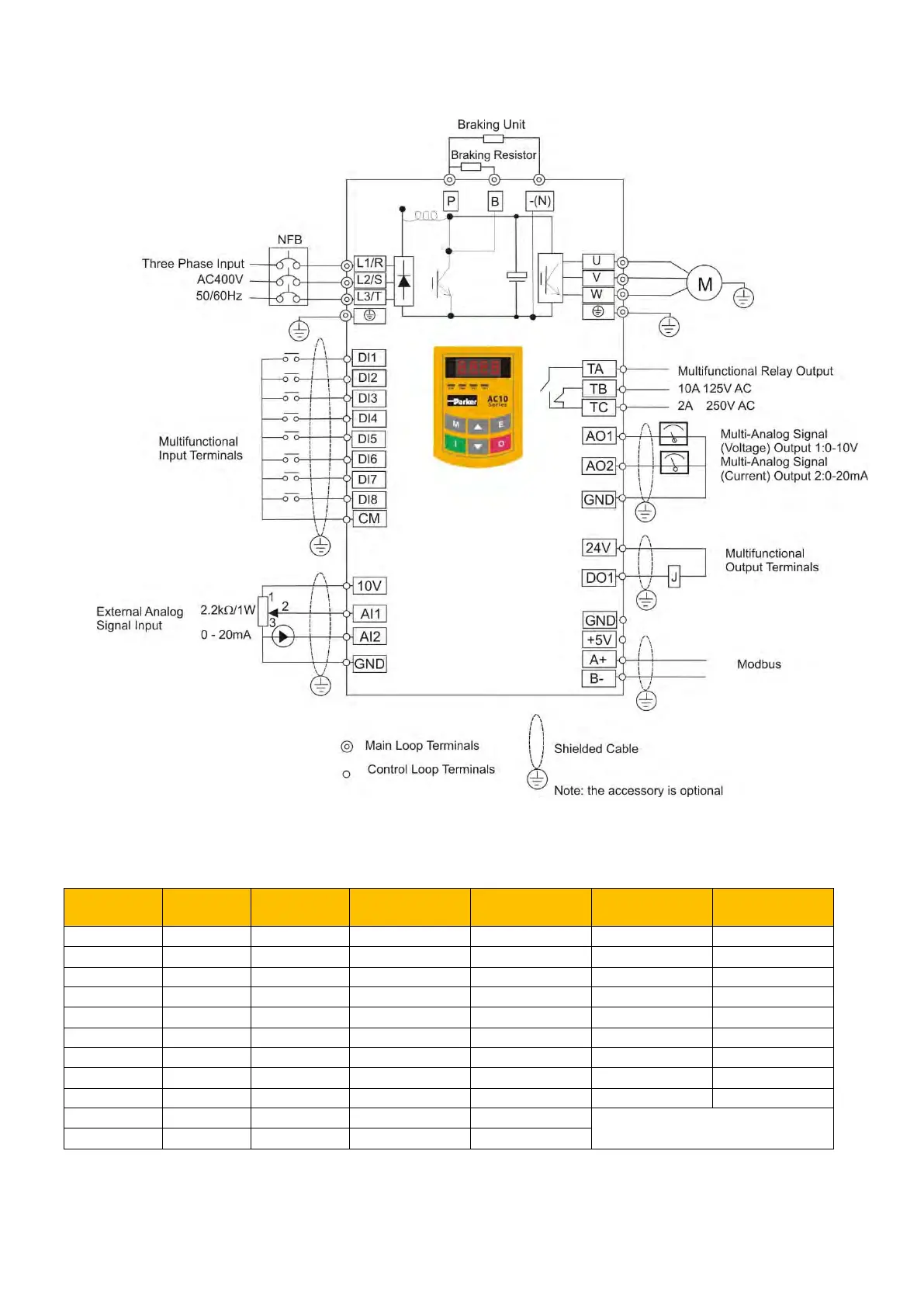

30kW – 180kW Basic Wiring Diagram for Three-phase AC drives (NPN type)
0.2kW – 22kW Basic Wiring Diagram for Multi-stage speed control macro (NPN type)
