Product Overview 2-1
AC10 Inverter
Chapter 2 Product Overview

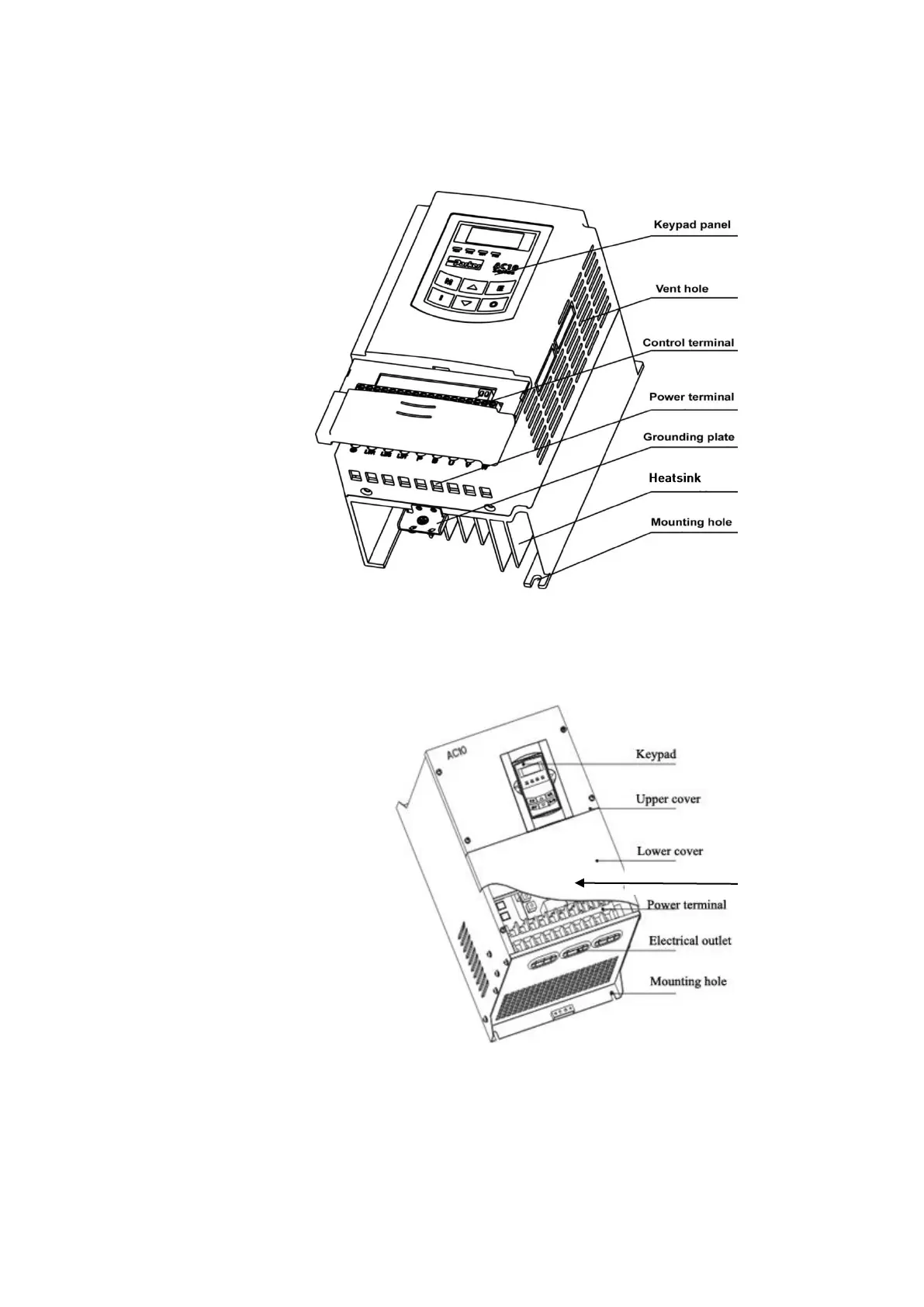

The external structure of AC10 series inverter has a plastic housing, up to Frame 5.
Illustrated is the AC10G-12-0050-XX
Metal housing (frame sizes 6-11) uses advanced exterior plastic-spraying and powder-coating
process on the surface with colour and detachable one-side door hinge structure adopted for
the front cover, convenient for wiring and maintenance. Taking 10G-46-0060 for instance, its
appearance and structure are shown below.
2.1 Designed Standards for Implementation
IEC/EN 61800-5-1: 2007 Adjustable speed electrical power drive systems safety requirements.
IEC/EN 61800-3: 2004 Adjustable speed electrical power drive systems-Part 3: EMC product
standard including specific test methods.
IEC 529(1989)/EN60529 Degrees of protection provided by enclosure (IP code)
