Parker 10G-46-0600-BF

3-2 Installation
AC10 Inverter
3.2 Minimum Air Clearance
 See Chapter 7 Installation and Connection for clearance information.
Inverter
M

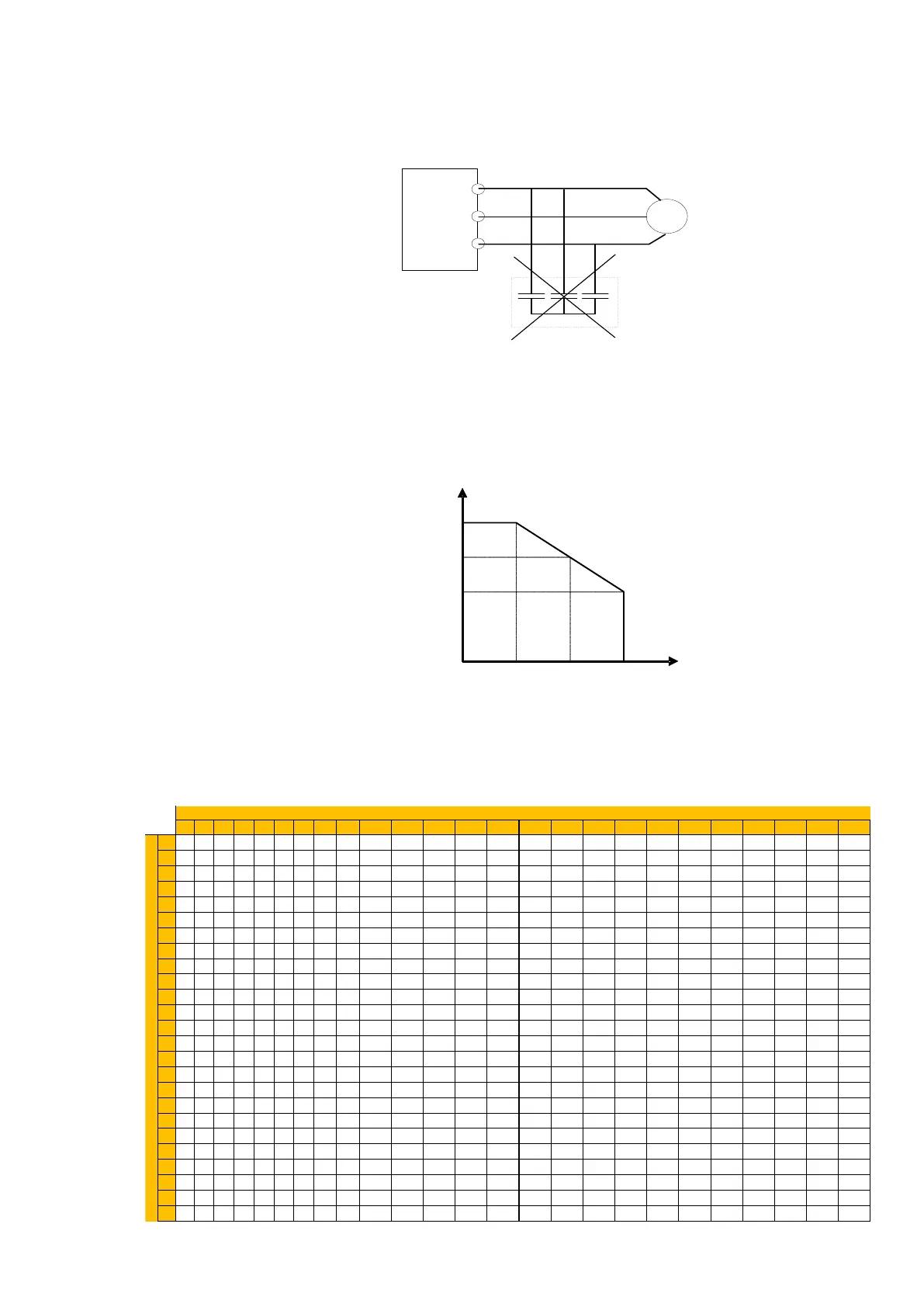

Figure 3-1 Capacitors are prohibited to be used
 Derating must be considered when the drive is installed at high altitude (greater than
1000m). This is because the cooling effect of drive is deteriorated due to the thin air,
as shown in Figure 3-2 that indicates the relationship between the elevation and rated
current of the drive.
Figure 3-2 Derating drive’s output current with altitude
Temperature derating
0.2 0.37 0.55 0.75 1.1 1.5 2.2 3.7 4 5.5 7.5 11 15 18.5 22 30 37 45 55 75 90 110 132 160 180
0.2 40 C 50 C 50 C 50 C 50 C 50 C 50 C 50 C 50 C 50 C 50 C 50 C 50 C 50 C 50 C 50 C 50 C 50 C 50 C 50 C 50 C 50 C 50 C 50 C 50 C
0.37 30 C 40 C 50 C 50 C 50 C 50 C 50 C 50 C 50 C 50 C 50 C 50 C 50 C 50 C 50 C 50 C 50 C 50 C 50 C 50 C 50 C 50 C 50 C 50 C 50 C
0.55 20 C 30 C 40 C 50 C 50 C 50 C 50 C 50 C 50 C 50 C 50 C 50 C 50 C 50 C 50 C 50 C 50 C 50 C 50 C 50 C 50 C 50 C 50 C 50 C 50 C
0.75 20 C 30 C 40 C 45 C 50 C 50 C 50 C 50 C 50 C 50 C 50 C 50 C 50 C 50 C 50 C 50 C 50 C 50 C 50 C 50 C 50 C 50 C 50 C 50 C
1.1 30 C 40 C 45 C 50 C 50 C 50 C 50 C 50 C 50 C 50 C 50 C 50 C 50 C 50 C 50 C 50 C 50 C 50 C 50 C 50 C 50 C 50 C
1.5 30 C 40 C 50 C 50 C 50 C 50 C 50 C 50 C 50 C 50 C 50 C 50 C 50 C 50 C 50 C 50 C 50 C 50 C 50 C 50 C 50 C
2.2 35 C 40 C 50 C 50 C 50 C 50 C 50 C 50 C 50 C 50 C 50 C 50 C 50 C 50 C 50 C 50 C 50 C 50 C 50 C 50 C
3.7 25 C 40 C 50 C 50 C 50 C 50 C 50 C 50 C 50 C 50 C 50 C 50 C 50 C 50 C 50 C 50 C 50 C 50 C 50 C
4 30 C 40 C 50 C 50 C 50 C 50 C 50 C 50 C 50 C 50 C 50 C 50 C 50 C 50 C 50 C 50 C 50 C 50 C
5.5 30 C 40 C 50 C 50 C 50 C 50 C 50 C 50 C 50 C 50 C 50 C 50 C 50 C 50 C 50 C 50 C 50 C
7.5 25 C 40 C 50 C 50 C 50 C 50 C 50 C 50 C 50 C 50 C 50 C 50 C 50 C 50 C 50 C 50 C
11 20 C 40 C 50 C 50 C 50 C 50 C 50 C 50 C 50 C 50 C 50 C 50 C 50 C 50 C 50 C
15 20 C 40 C 50 C 50 C 50 C 50 C 50 C 50 C 50 C 50 C 50 C 50 C 50 C 50 C
18.5 20 C 40 C 50 C 50 C 50 C 50 C 50 C 50 C 50 C 50 C 50 C 50 C 50 C
22 20 C 40 C 50 C 50 C 50 C 50 C 50 C 50 C 50 C 50 C 50 C 50 C
30 20 C 40 C 50 C 50 C 50 C 50 C 50 C 50 C 50 C 50 C 50 C
37 20 C 40 C 50 C 50 C 50 C 50 C 50 C 50 C 50 C 50 C
45 20 C 40 C 50 C 50 C 50 C 50 C 50 C 50 C 50 C
55 20 C 40 C 50 C 50 C 50 C 50 C 50 C 50 C
75 20 C 40 C 50 C 50 C 50 C 50 C 50 C
90 20 C 40 C 50 C 50 C 50 C 50 C
110 20 C 40 C 50 C 50 C 50 C
132 20 C 40 C 50 C 50 C
160 20 C 40 C 50 C
180 20 C 40 C
Power of Motor (kW)
Power of drive (kW)
Iout
（
m
）
100%
90%
80%
1000 2000 3000
Fig 1-7
Derating Drive’s output current with altitude
