7-5 Installation & Connection
AC10 Inverter

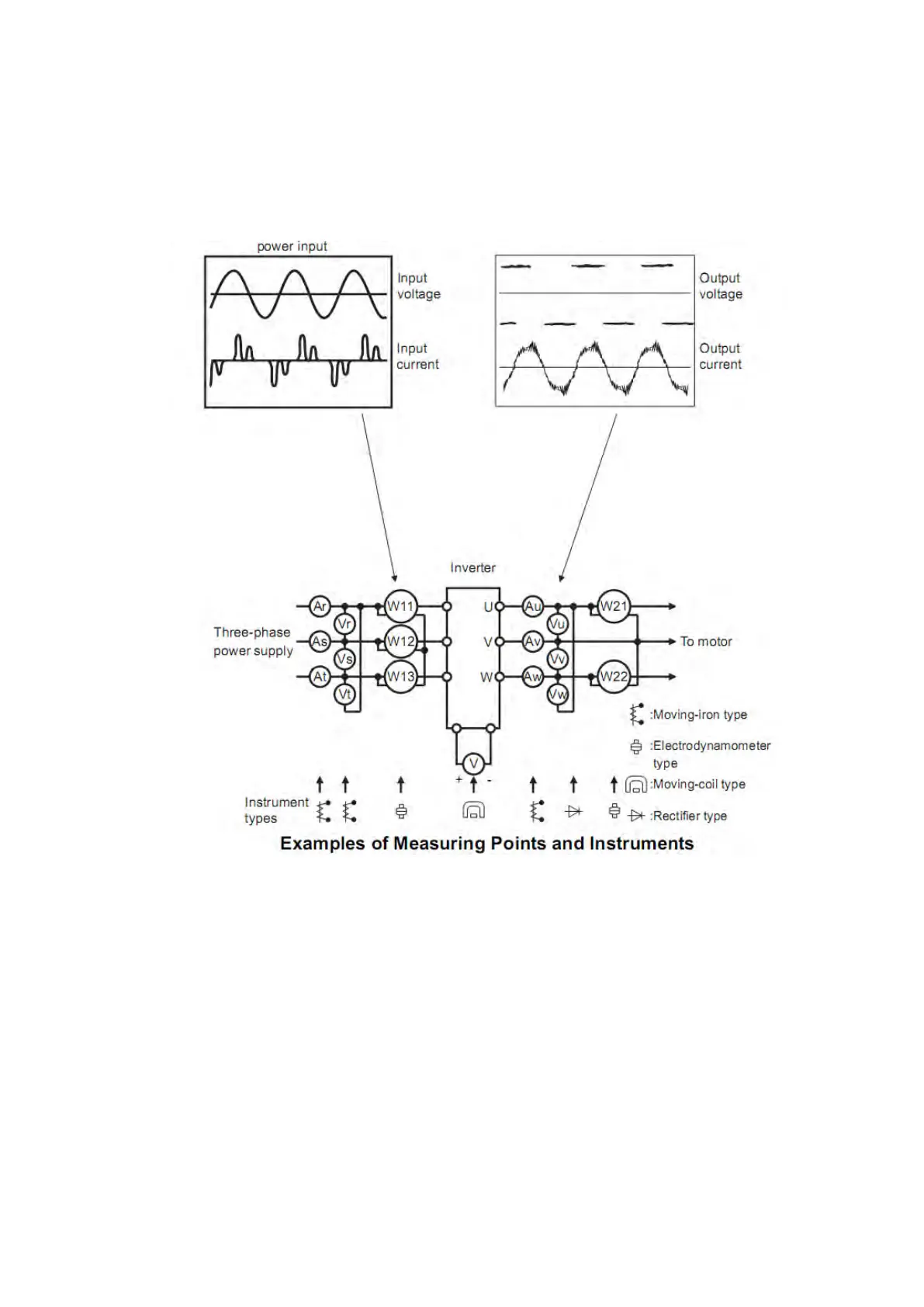

7.3 Measurement of Main Circuit Voltages, Currents and Powers
Since the voltages and currents on the inverter power supply and output sides include
harmonics, measurement data depends on the instruments used and circuits measured. When
instruments for commercial frequency are used for measurement, measure the following
circuits with the recommended instruments.
