Installation & Connection 7-10
AC10 Inverter
7.6 Connection Overview
Refer to following figure for the overall connection for AC10 series inverters. Various wiring
modes are available for the terminals whereas not every terminal needs to be connected in
each mode when applied.
Note:
1. Only connect power terminals L1/R and L2/S to supply voltage for single-phase inverters.
2. The contact capacity for 22kW and below 22kW is 10A/125VAC、5A/250VAC、5A/30VDC.
The contact capacity for above 22kW is 10A/125VAC、NO/NC: 3A 250VAC/30VDC.

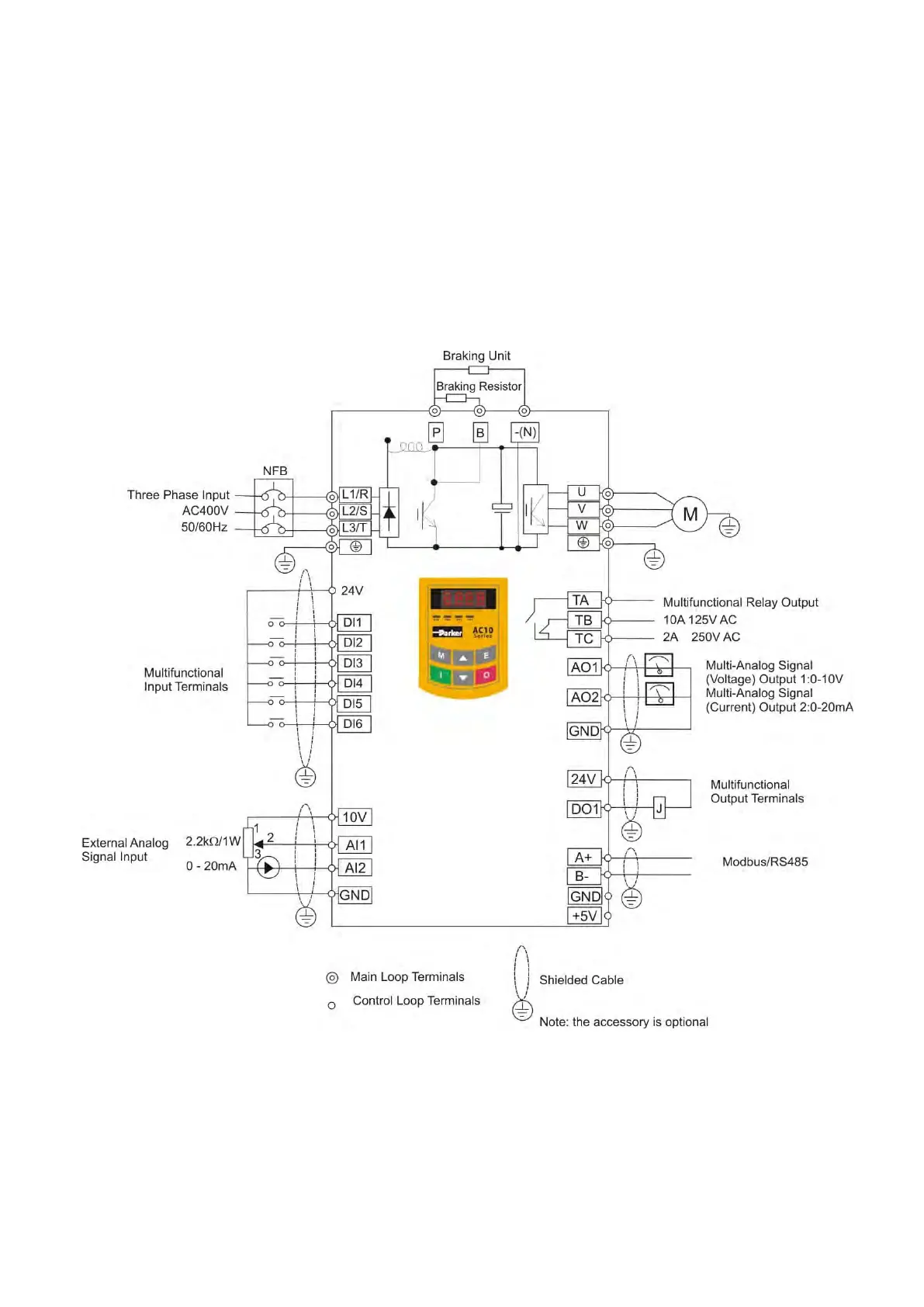

0.2kW – 22kW Basic Wiring Diagram for Multi-stage speed control
macro (PNP type)
To Next Page
