Parker 10G-46-0600-BF

5-2 The Keypad
AC10 Inverter

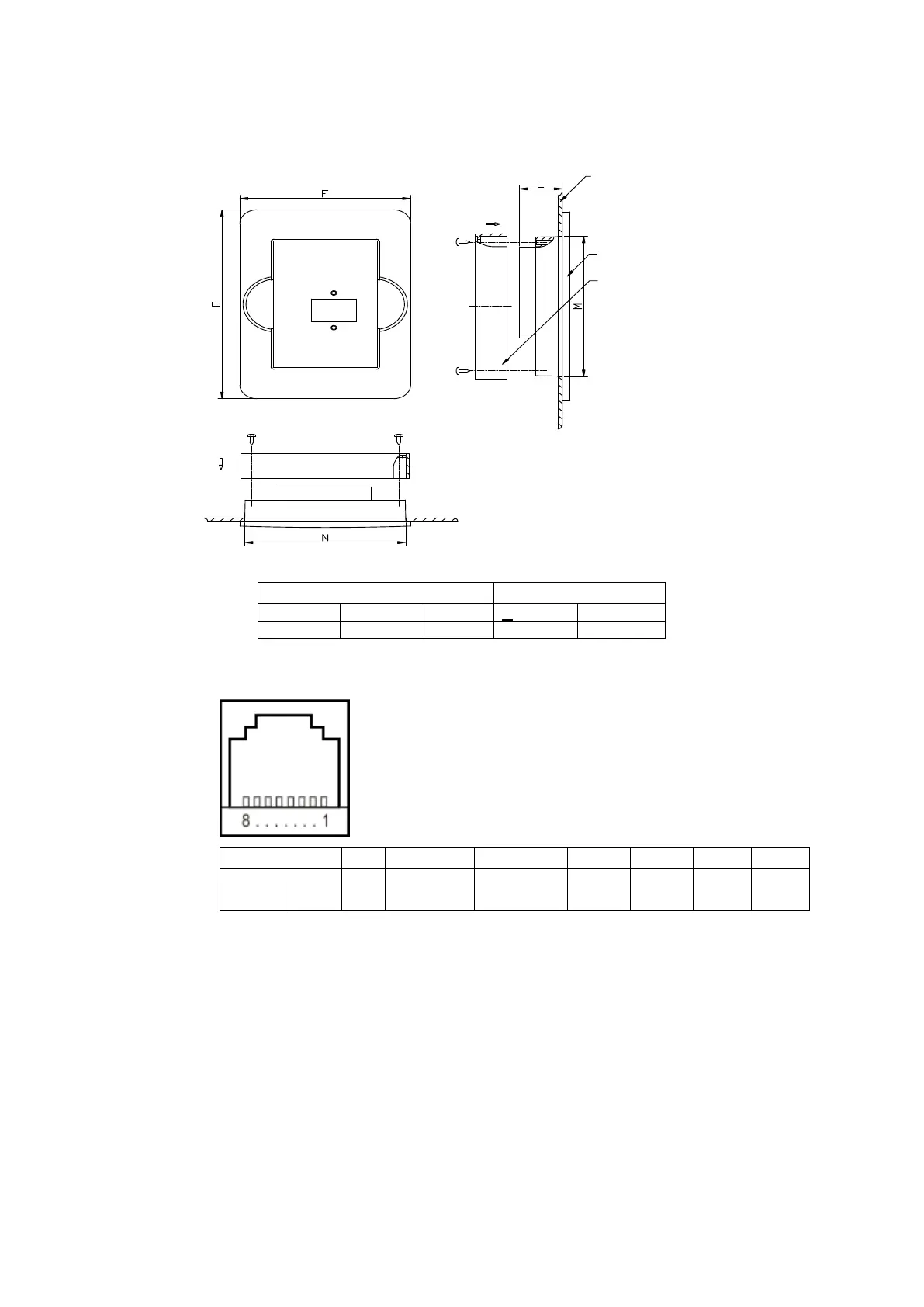

5.2.1 Panel Mounting Dimensions
Mounting panel
Keypad frame
Frame back cover
Keypad panel size
Opening size
E
F
L
N
M
170
110
22
102
142
5.2.1 Port of control panel
Pins
1
2
3
4
5
6
7
8
8 core
None
5V
Grounding
Grounding
Signal
1
Signal
2
Signal
3
Signal
4
The default length of remote cable is 1m. On the occasion of heavy interference or if remote
control cable is longer than 3m, please add Ferrite core on the cable. This connector is for
external keypad use only.
