2.4 Alphanumeric input
The point name is inputted by the alphanumeric keys as following.
Key Letter under key Letter & figure order to input
[0]  [@][.][][-][:][/][0]
[1] PQRS [P][Q][R][S][p][q][r][s][1]
[2] TUV [T][U][V][t][u][v][2]
[3] WXYZ [W][X][Y][Z][w][x][y][z][3]
[4] GHI [G][H][I][g][h][i][4]
[5] JKL [J][K][L][j][k][l][5]
[6] MNO [M][N][O][m][n][o][6]
[7]  [][?][!][][¯][^][|][&][7]
[8] ABC [A][B][C][a][b][c][8]
[9] DEF [D][E][F][d][e][f][9]
[.]  [.][,][:][;][#][(][)]
[+/-]  [+][-][*][/][%][=][<][>]
2.5 Laser pointer
The Laser pointer function turns the laser beam on
continuously to become the aiming point so that
visual confirmation is possible.

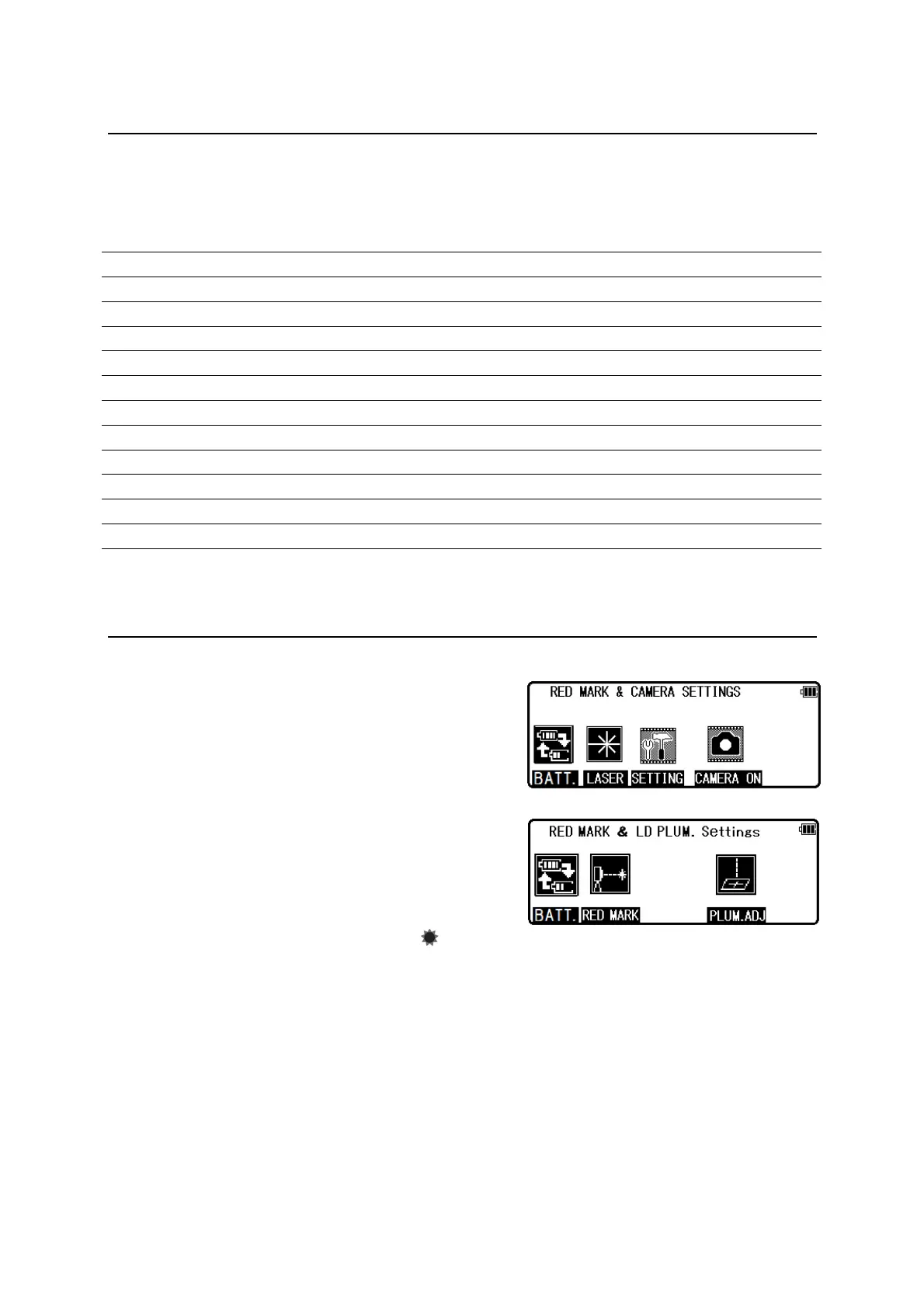

Press [Laser/Camera] key to display “RED MARK &
CAMERA SETTINGS” screen.
When push [F1] [RED MARK] key in the screen are
pressed, it will go to "RED MARK & LD PLUM.
settings" screen. Red mark is emitted afterwards
when [F2] [RED MARK] key are pressed.
The Laser indicator is turned on and the “ ” mark
on the left of the screen blinks while the Laser pointer function is operating.
Red marks can be finished in the same way.
• The beam of the sun is strong and visual confirmation is difficult in daytime when out
doors.
• The laser beam is designed not to be able to observe through the telescope.
• Please visually align the laser beam to the target and mark the center.
Confirm the alignment (horizontal and vertical ) before measuring when performing
accurate work like stake out when using the Laser pointer function.
Also refer to 12.8 The EDM beam axis.
• Please do not look at the laser source of beam directly.
