BatteryA（upside battery）
①The switch of a left-hand side side is made to slide upwards, and a cover is opened.
②It attaches putting a battery in slanting down one.
BatteryB（lower battery）
① Place the channel on the bottom of the battery pack.
② Onto the protrusion of the instrument and push the battery pack down into place.
③ Turn the knob clockwise.
1.5 How to charge the Battery
The R-2500DN comes with two lithium-ion rechargeable batteries with a typical operating time
between 8 to 10 hours.
Specifications
Battery Type: Lithium ION
Voltage: +6.2VDC to 8.4VDC
Capacity: 2500mAH
[Battery Charger]
AC Adapter
Input: 100-240VAC ~50/60Hz 1.7A
Output: 19.0VDC @ 3.16A
[Charging the battery]

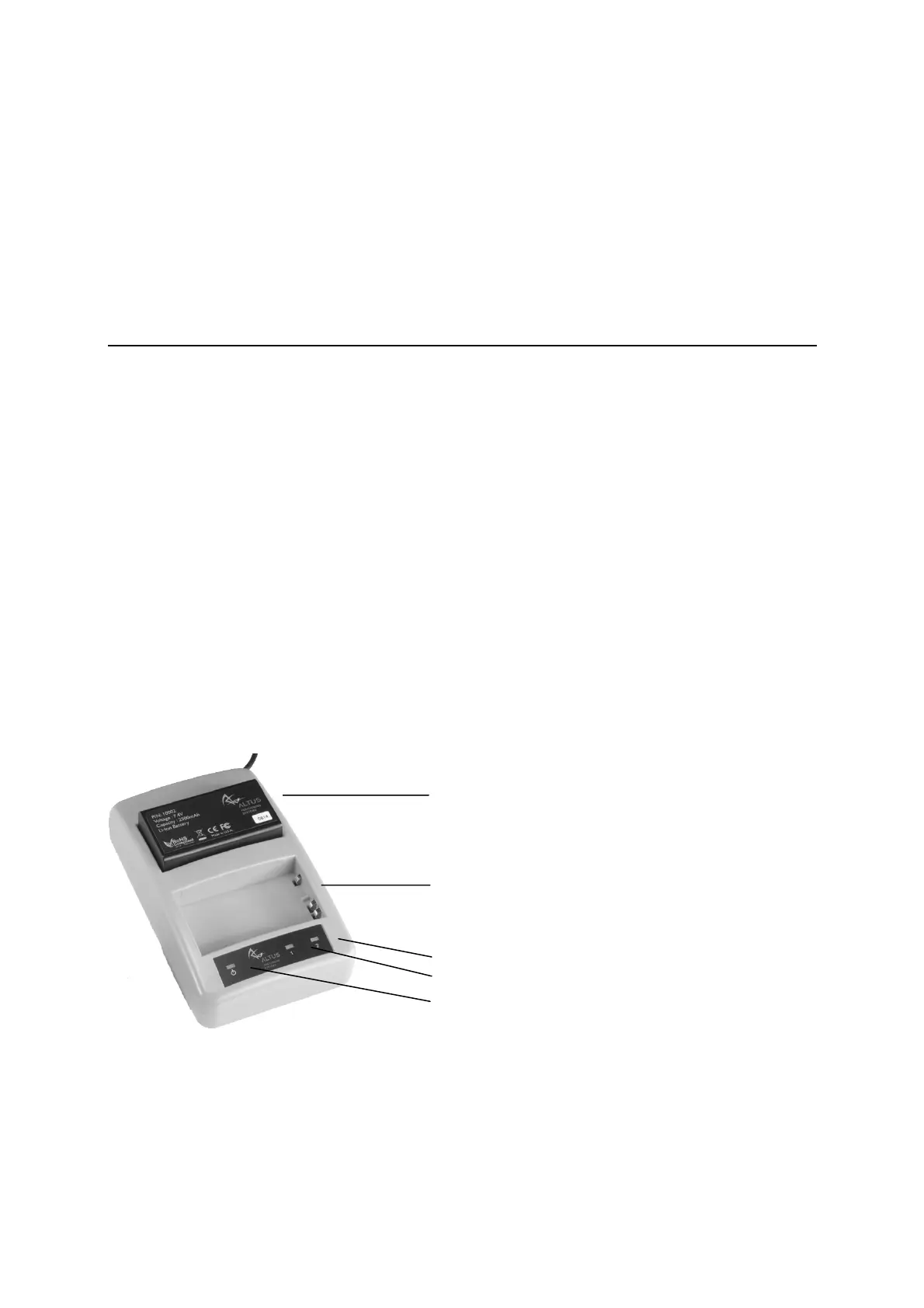

BatteryChargingDescription
Battery Bay 1
Battery Bay 2
LED Status Indicator:
Battery Bay 2
Battery Bay 1
Power for Battery Charger
• Plug the AC cord to AC Adapter
• Plug in AC Adapter to Battery Charger
• Plug the AC wall battery charger into the wall socket and power LED turns ON
• Place your battery in charger bay correctly
• Wait until battery LED indicator turns GREEN for a full charge
To Next Page
