1-Port
This section describes the components found on the IOLAN 1-port models. SDS G models have a
10/100/1000 Ethernet connection.
The 1-port IOLAN has one serial connection that is one of the following connectors: DB25 male*
DB25 female, RJ45, or DB9 male.
*DB25 male serial connector not support on the IOLAN G model.
2-Port
This section describes the components found on the IOLAN 2-port models.
The 2-port IOLAN has two RJ45 serial connections. SDS G models have a 10/100/1000 Ethernet
connections. The 2-port IOLAN can support an 8-pin connector if there is no requirement for power
in (pin 1) or power out (pin 10) pins. The 2-Port P model (Power over Ethernet) does not come with
an external power supply connector.

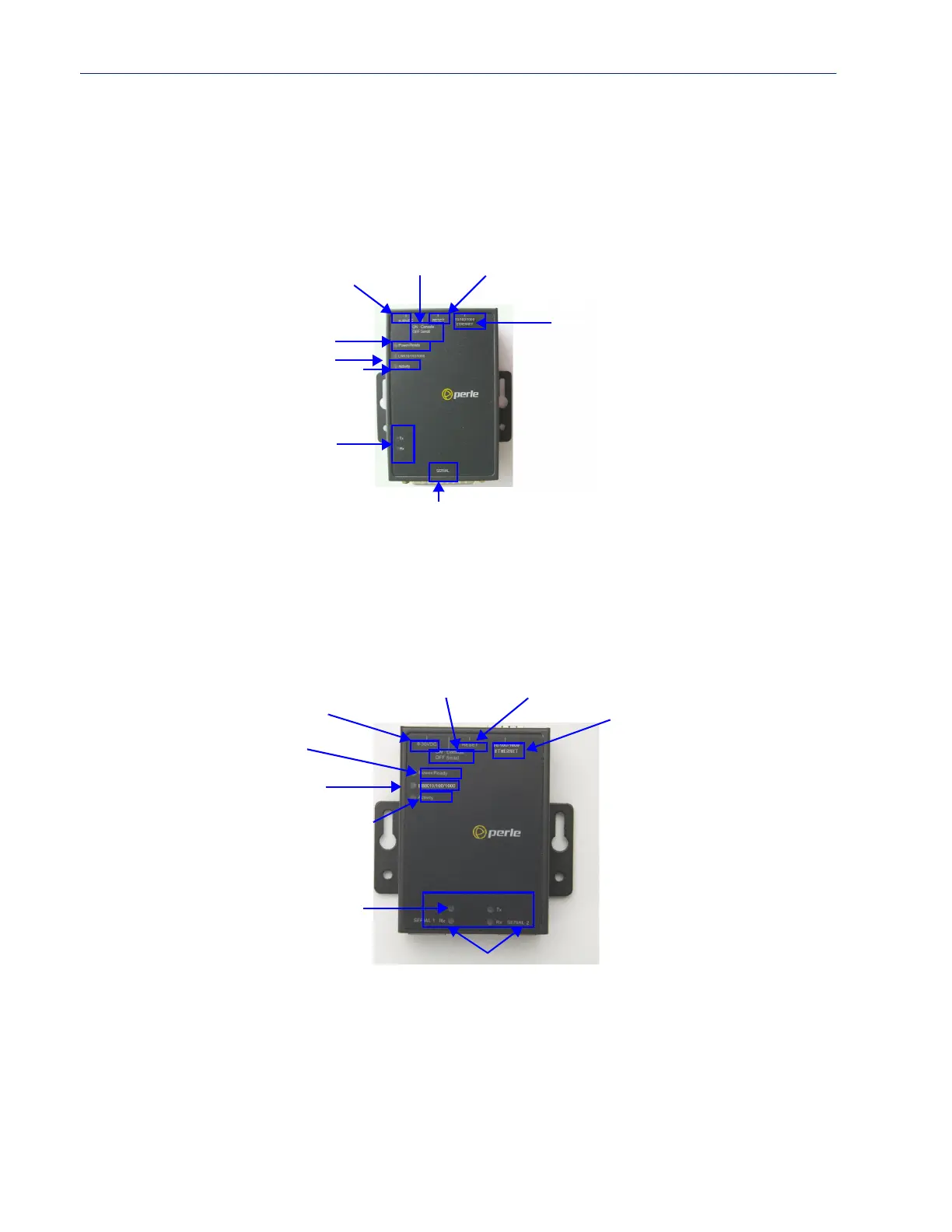

Serial Activity
Serial Port
External Power Supply
Console/Serial
Switch
Reset
Ethernet
Activity (LAN)
Link10/100/1000
Power Ready
Serial Activity
Power/Ready
Activity (LAN)
Serial Ports
External Power Supply
Console/Serial
Switch
Reset
Ethernet
Link/10/100/1000
