Perle IOLAN SDS - RJ45 F to DB9 M DTE Crossover Adapter

Accessories 460
Starter Kit (Adapters/Cable)
RJ45F to DB9M DTE Crossover Adapter

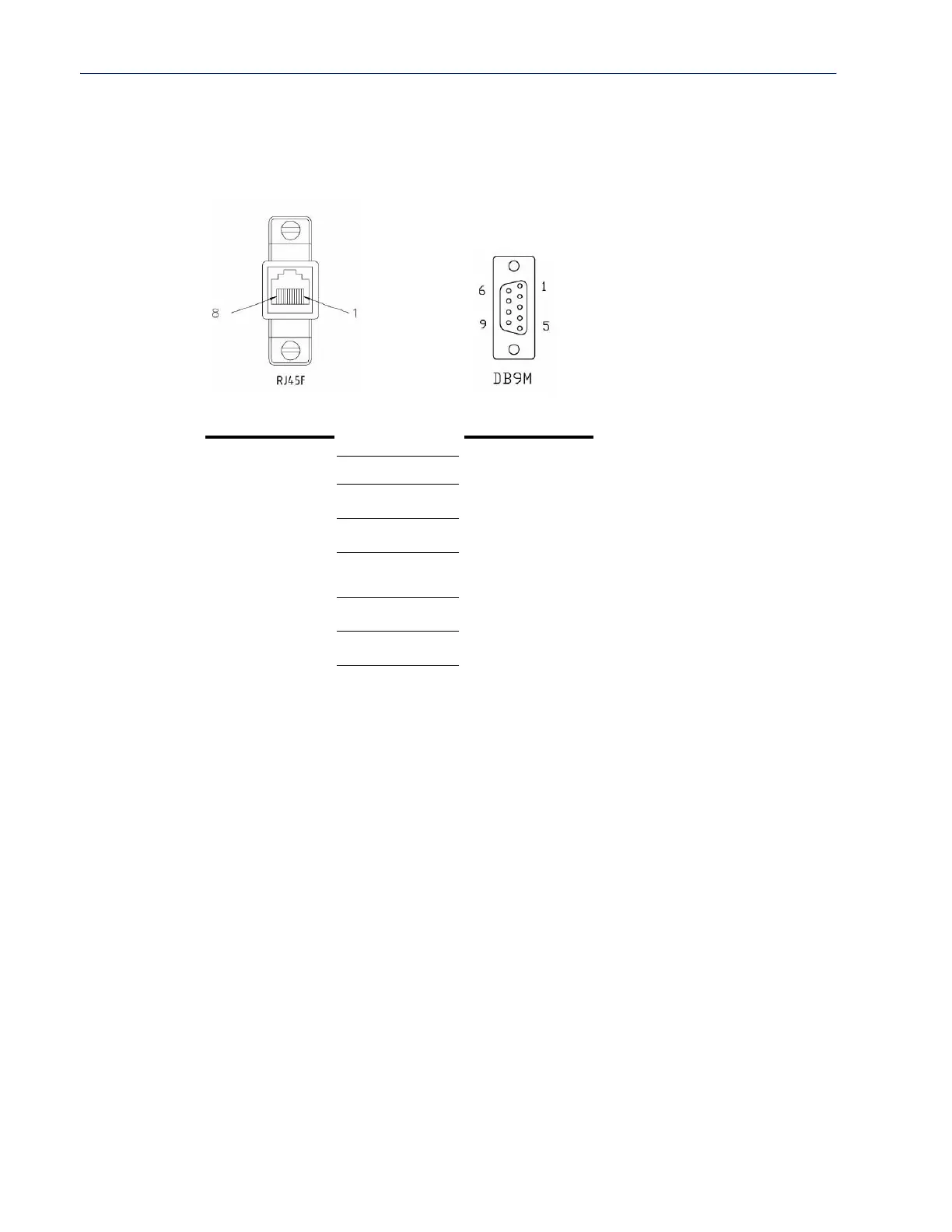

The following diagram shows the IOLAN RJ45JDB9M crossover adapter pinouts. This is model
number DBA0021.
RJ45F DB9M
(TxD) 4 2 (RxD)
(RxD) 5 3 (TxD)
(GND) 6 5 (GND)
(DTR) 8 1 (DCD)
6 (DSR)
(DSR) 3 4 (DTR)
(RTS) 2 8 (CTS)
(CTS) 7 7 (RTS)
