Perle IOLAN SDS - 4-Port and 8-Port Desktop Models

Hardware and Connectivity 36
Getting to Know Your IOLAN
4-Port and 8-Port desktop models

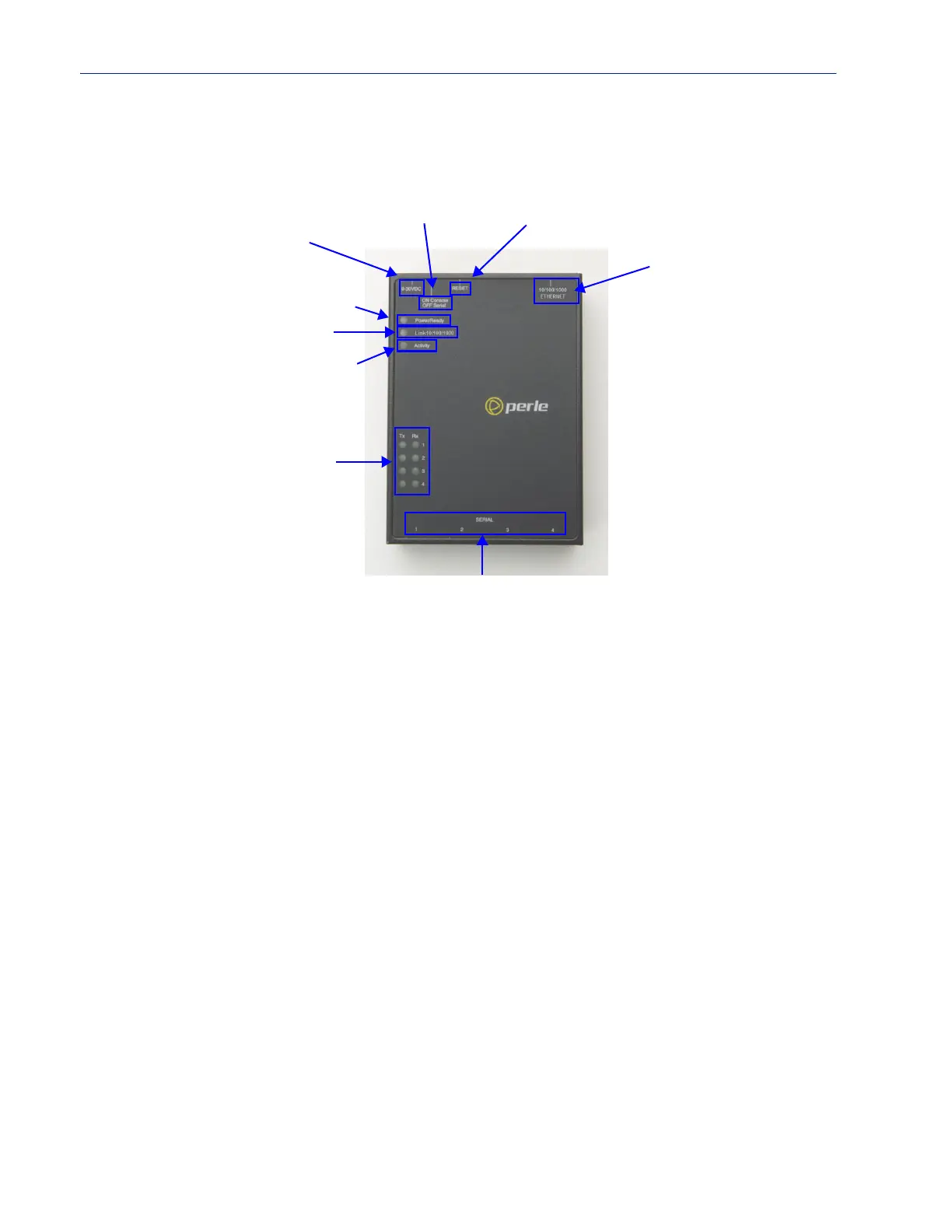

This section describes the components found on the IOLAN 4-port models. SDS G models have a
10/100/1000 Ethernet connection
The 4-port IOLAN model has four RJ45 serial connections.
The STS8-D IOLAN model has eight RJ45 serial connections.
Serial Activity
Power/Ready
Activity (LAN)
Serial Ports
External Power Supply
Console/Serial
Switch
Reset
Ethernet
Link/10/100/1000
