13 - 59
Adjustment
13.08.07 Cutting angle of the back knife in relation to the hook knife
Requirement
The hook knife 1
should be at a 0.05 – 0.1 mm
slant to the back knife 2.
Switch the machine on and let it move into position.
Switch on the edge trimming and feathered trimming device.
Slide hook knife 1
into cutting position by hand.
By turning the balance wheel, bring back knife 2 into cutting position.
Adjust hook knife 1 (screws 3) according to the requirement.

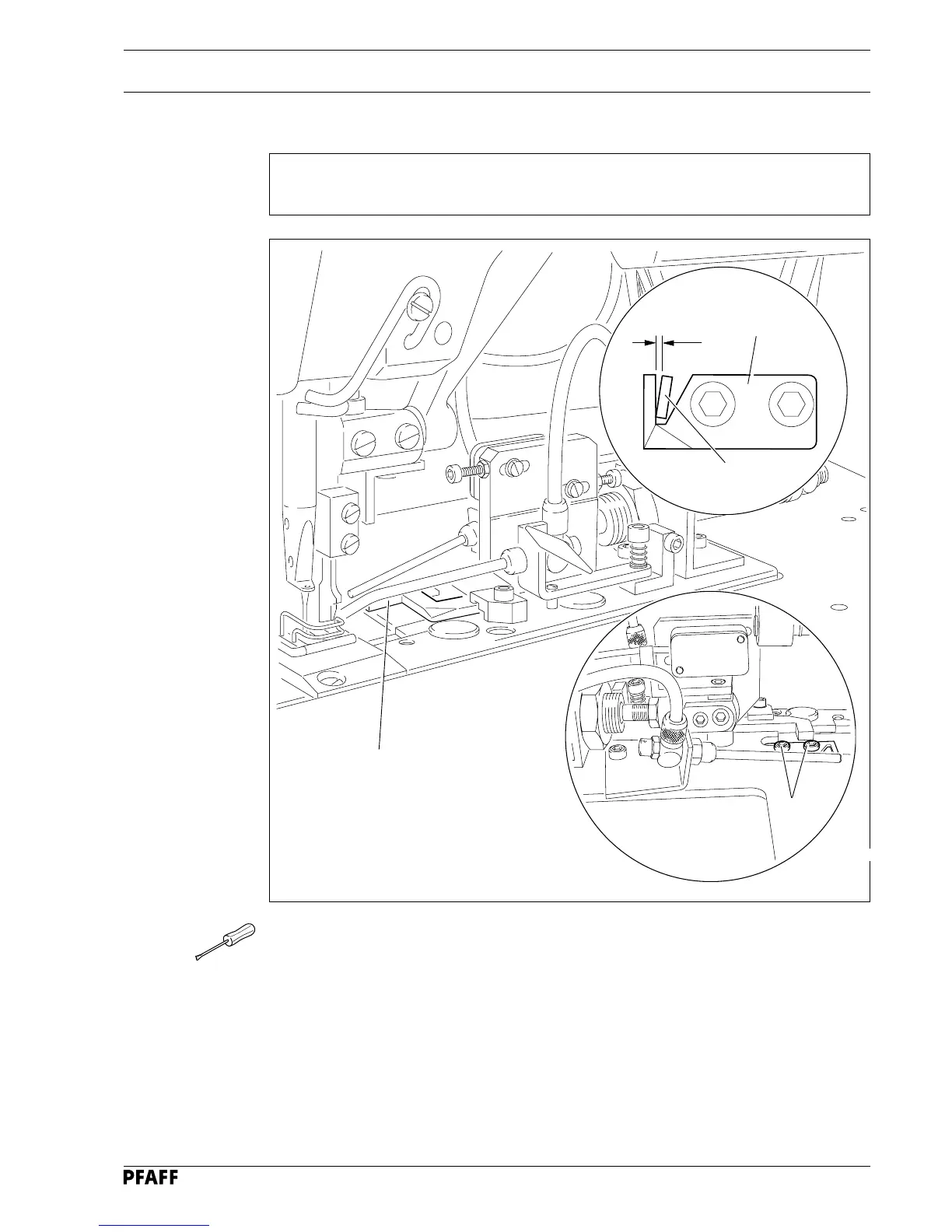

Fig. 13 - 58
49-37
1
49-047
1
2
0.05 - 0.1 mm
49-46
3
