Pfaff 3822-1/32 User Manual

13 - 10
Adjustment
13.05.08 Height of the bottom feed dog
Requirement
When the needle bar is at 0.6 past t.d.c. (adjustment hole 1) and the stitch length is set at "0",
1. The bottom feed dog should be in the centre of the needle plate cutout, as seen from
the side and in the direction of feed.
2. The bottom feed dog should be at the top of its stroke and its entire length should be
positioned against the adjustment gauge.
● Adjust feed dog bracket 1 (screw 2) according to requirement 1.
● Lower the presser foot onto the gauge (part no.61-111 639-49).
● Turn eccentric 3 (screw 4) and eccentric 5 (screw 6) according to requirement 2.

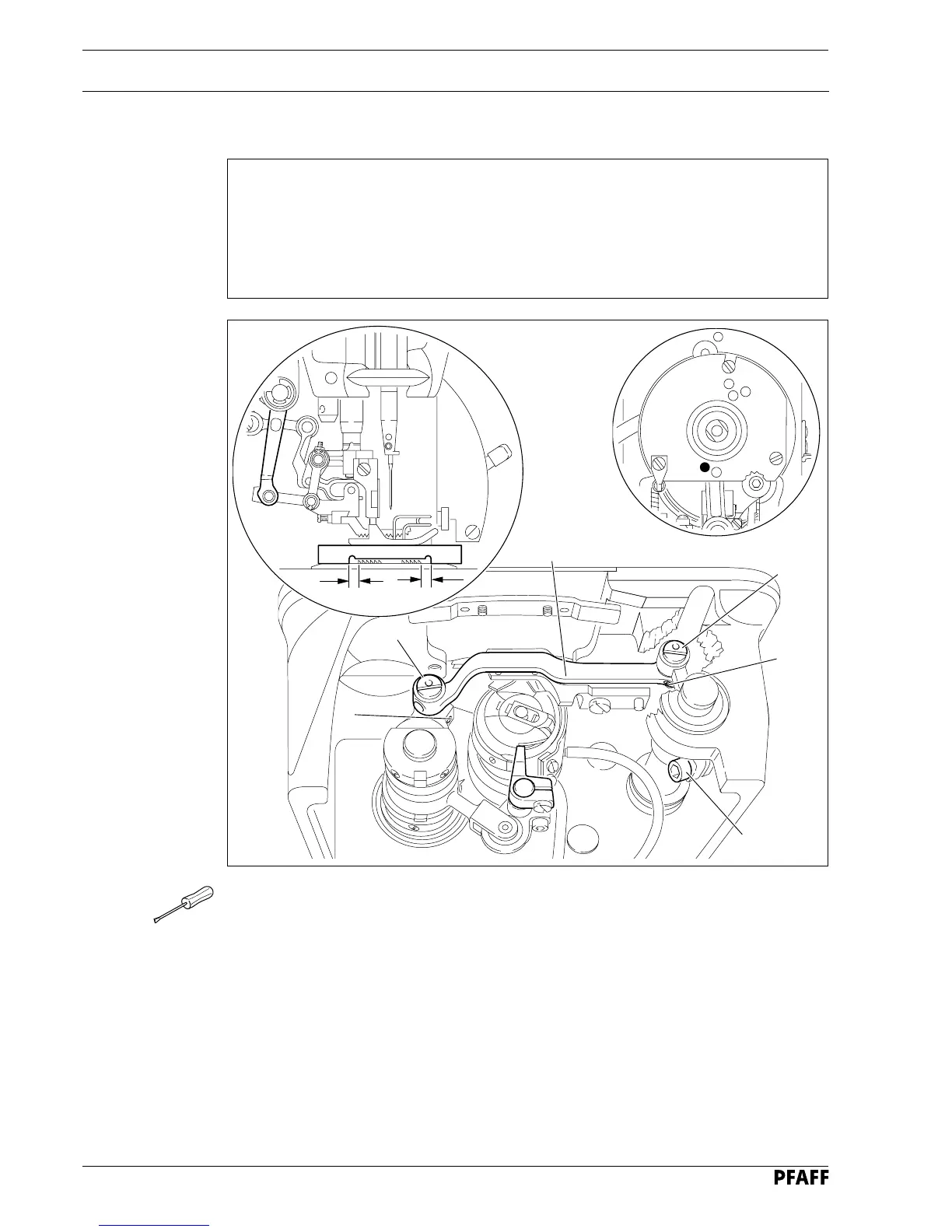

Fig. 13 - 09
6
5
2
4
3
1
49-020a
1
5
4
6
3
49-064
x
x
