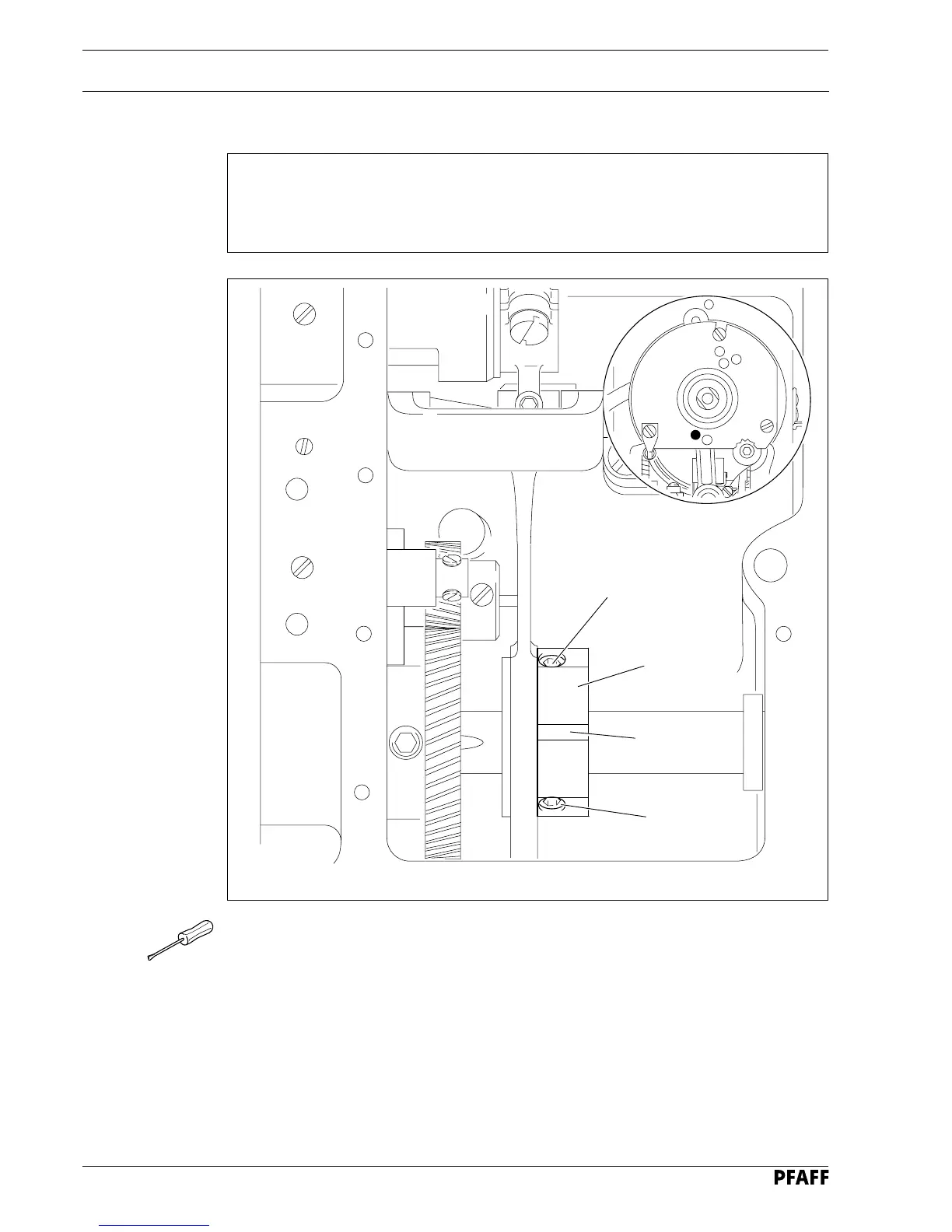

13 - 8
Adjustment
13
.05.06
Feeding motion of the bottom feed dog
Requirement
With the maximum stitch length set and the needle bar positioned 0.6 mm past t.d.c.
(adjustment hole 1), the bottom feed dog should not move when the reverse feed key is
operated.
Fig. 13 - 07
●
Bring needle bar to 0.6 past t.d.c.
●
Adjust eccentric
1
(screw
2
) according to the
requirement,
making sure that the cutout
3
is visible.
2
1
2
3
49-020a
1
5
4
6
3
65
67
Table of Contents
Instruction Manual
1
Table of Contents
3
Safety
7
General Notes on Safety
7
Safety Symbols
8
Important Points for the User
8
Notes for Operating and Technical Staff
9
Operating Staff
9
Danger Warnings
10
Proper Use
11
Specifications
12
Disposal of Machine
13
Transportation, Packing and Storage
14
Transportation to Customer's Premises
14
Transportation Inside the Customer's Premises
14
Disposal of Packing Materials
14
Storage
14
Explanation of Symbols
15
Controls
16
Main Switch
16
Pedal
16
Presser Bar Lifter
17
Knee Switch
17
Left Knee Switch
18
Keyboard
19
Graphics Operating Panel
20
Display
20
Operational Mode Keys
21
Function Keys
21
Number Keys
21
Installation and Commissioning
22
Installation
22
Adjusting the Table Height
22
Tensioning the V-Belt
23
Fitting the Top V-Belt Guard
23
Fitting the Lower Belt Guard
24
Assembling and Fitting the Reel Stand
24
Commissioning
25
Switching the Machine On/Off
25
Setting up
26
Inserting the Needle
26
Winding the Bobbin Thread, Adjusting the Thread Tension
27
Removing/Inserting the Bobbin Case
28
Threading the Bobbin Case, Adjusting the Thread Tension
28
Threading the Needle Thread
29
Adjusting the Needle-Thread Tension
29
Fullness Input
30
Selecting the Language (Only on Machines with Graphics Operating Panel)
30
Sewing
31
Machines Without Graphics Control Panel (Manual Sewing)
31
Machines with Graphics Control Panel
31
Manual Sewing with One Amount of Fullness (Program Number 0)
31
Manual Sewing of 2 Amounts of Fullness Alternately (Program Number 1)
33
Programmed Sewing (Program Numbers 2 - 200)
34
Program Interruption
35
Error Messages
36
Input (Only on Machines with Graphics Operating Panel)
37
Overview of the Functions in the Operational Mode INPUT
37
Overview of the Functions in the Input Menu
38
Selection of Functions from the Input Menu
38
Explanation of the Functions in Input Menu
40
Input and Alteration of Seam Programs
44
Teach in
44
Programming / Alterations
46
Examples for Programming a Seam
48
Programming by Direct Input of Number of Stitches and Fullness
48
Programming Using the Teach-In Method
52
Care and Maintenance
56
Cleaning the Machine
56
Oil Level of the Machine
57
Lubricating the Top Feed Joints
57
Checking the Air Pressure
58
Emptying/Cleaning the Water Container of the Air Filter/Regulator
58
Adjustment
59
Notes on Adjustment
59
Tools, Gauges and Other Accessories
59
Abbreviations
59
Control and Adjustment Aids
60
Adjusting the Basic Machine
61
Adjusting the Synchronizer
61
Preliminary Adjustment of the Needle Height
62
Needle in Needle-Hole Centre
63
Neutral Position of the Bottom Feed Dog
64
Play of the Feed Reverse Key
65
Feeding Motion of the Bottom Feed Dog
66
Lifting Motion of the Bottom Feed Dog
67
Height of the Bottom Feed Dog
68
Clearance between Presser Foot and Needle Plate
69
Stop in Relation to the Presser Foot
70
Top Feed Driving and Connecting Lever
71
Neutral Position of the Top Feed Dog
72
Feeding Motion of the Top Feed Dog
73
Front Linkage Rod to Top Feed Drive
74
Top Feed Stroke
75
Lifting Motion of the Top Feed Dog
76
Stitch Length Adjustment
77
Stitch Length Limitation
78
Basic Setting of the Differential Adjustment Device
79
Lifting Height of Presser Foot with Automatic Presser Foot Lift
80
Eccentric Hook Shaft Bearing and Hook-To-Needle Clearance
81
Needle Bar Rise, Readjustment of the Needle Height and Bobbin Case Position Stop
82
Bobbin Opener Height
83
Adjustment of the Bobbin Opener
84
Bobbin Case Opener
85
Needle Thread Tension Release
86
Thread Check Spring
87
Bobbin Winder
88
Position of the Top Feed Dog in Relation to the Sewing Foot
89
Top Feed Dog and Sewing Foot Pressure
90
Stitch Condensation
91
Adjusting the Thread Trimmer
92
Pre-Adjusting the Control Cam
92
Roller Lever
93
Pawl
94
Engaging Solenoid
95
Release Lever
96
Engaging Lever
97
Lateral Adjusting of the Thread Catcher
98
Front Reversal Point of the Thread Catcher
99
Retaining Spring
101
Knife to Needle Clearance
102
Manual Trimming Control
103
Tension Release of Needle Thread
104
Mounting and Dismounting the Control Unit
105
Adjusting the Edge Trimming Device on the PFAFF 3822-1/32 and -1/42
106
Knife Stroke
106
Neutral Position of the Knife Stroke
107
Knife Height
108
Aligning the Knife
109
Adjusting the Stop Eccentric
110
Adjusting the Feathered Trimming Device on the PFAFF 3822-1/34 and -1/44
111
Top Stroke Motion of the Knife
111
Cutting Angle of the Front Knife
112
Cutting Position of the Front Knife
113
Cutting Pressure of the Front Knife
114
Knife Stroke Zero Point
115
Side Position of the Back Knife in Relation to the Hook Knife
116
Cutting Angle of the Back Knife in Relation to the Hook Knife
117
Cutting Pressure between the Back Knife and the Hook Knife
118
Cutting Depth of the Back Knife
119
Cutting Depth of the Front Knife
120
Trimming Margin
121
Sensor Control of the Hook Knife
122
Air-Blast Tube for Separating the Material Plies
123
Air-Blast Tube for Cutting Waste
124
Parameter Setting
125
Table of Inputs and Outputs
126
Wearing Parts
127
